Sample tech pack · Fleece jogger sweatpants

Cuffed Joggers, drawn up start to finish

21 points of measure graded across 6 sizes, 12 bill-of-materials lines, 12 materials with their swatches, 6 construction callouts, 3 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

Download the PDF Excel template Use it as a template

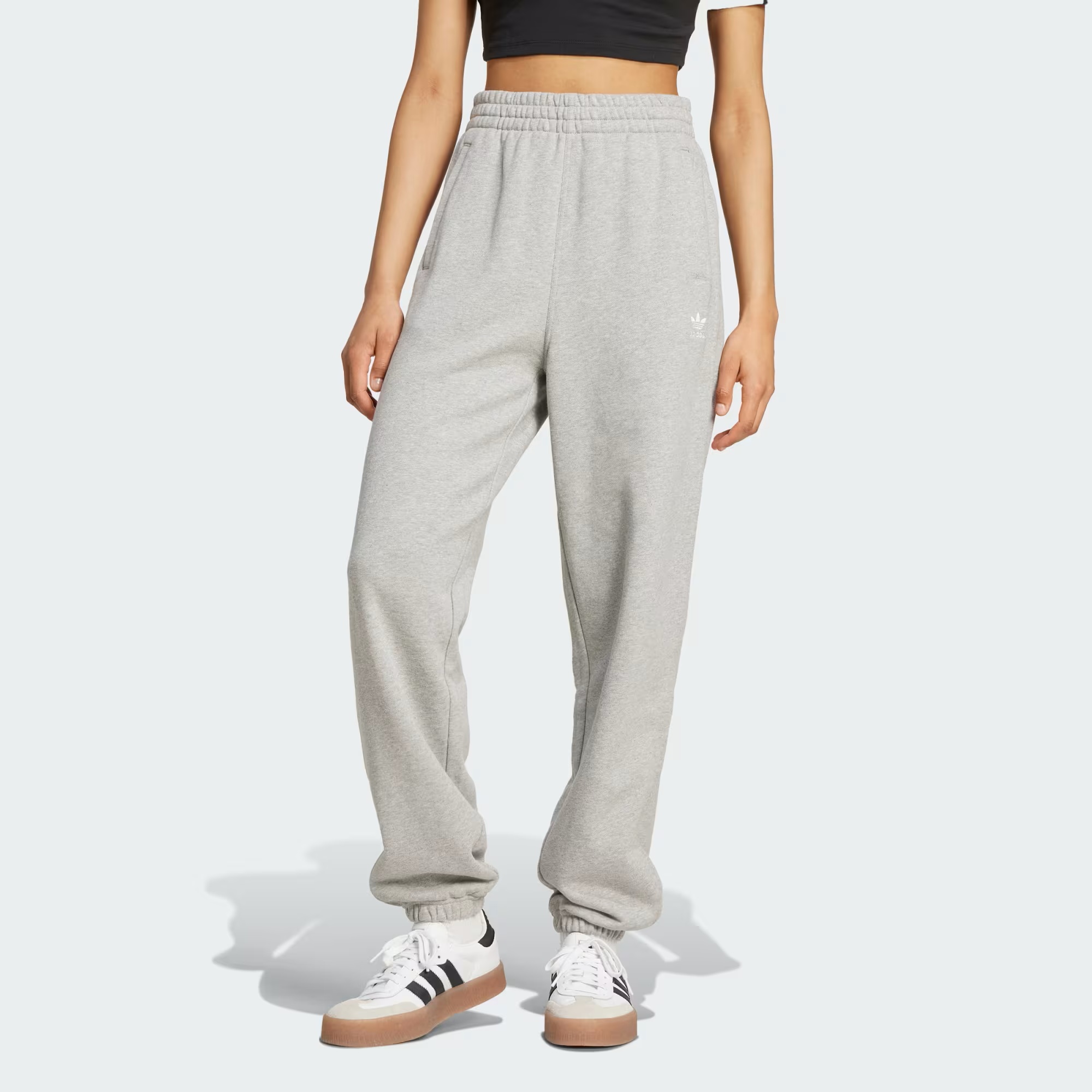

Cuffed Joggers, the product the tech pack was generated from — SourceOne product photo. Everything else on this page was generated from it.

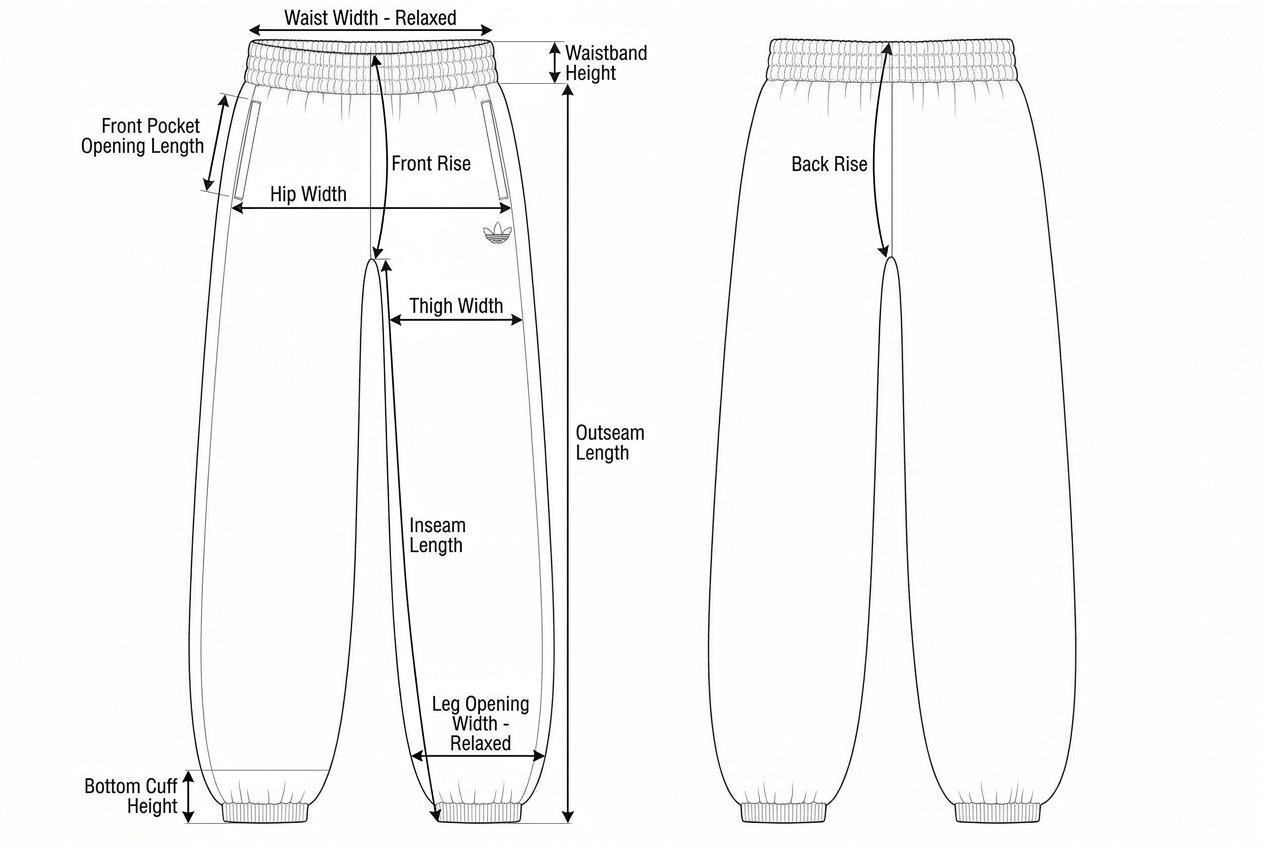

Cuffed Joggers annotated flat sketch with points of measure — Annotated flat sketch: every point of measure numbered on the drawing, matching the size table below.

Waistband: Elastic chnl WB
Front pocket opening: Slant pkt edge TS
Crotch intersection: Crotch reinforce
Side seam: 4T OL SA 1cm
Leg opening: Elastic hem csg
Logo placement: Logo print pos

Materials

12 materials, each with its swatch, composition and placement

Main shell fleece

320 GSM cotton/polyester brushed-back fleece, heather grey marl, soft handfeel, compact face, lightly brushed interior

Body panels, waistband outer, cuff outer

Pocketing fabric

Self-fabric pocket bags in matching heather grey fleece or lighter weight single jersey pocketing, color matched to PANTONE 420 C

Front slanted pocket bags

Waist elastic

Knitted elastic, 40 mm width, soft stretch recovery, inserted into self-fabric waistband tunnel

Inside waistband

Bottom hem elastic

Knitted elastic, 8-10 mm width, soft recovery for gathered ankle opening

Inside each leg opening hem tunnel

Sewing thread

100% polyester core-spun thread, Tex 27-40, color matched to PANTONE 420 C

All major seams and topstitching

Coverstitch thread

Polyester texturized thread for waistband and hem topstitching, matching heather grey

Waistband channels, pocket opening topstitch, ankle casing topstitch

Care/content label

Printed satin or polyester care label, white ground with black text

Interior back waistband seam

Brand main label

Heat transfer or woven main brand label, tonal or white/black branding

Interior back waistband

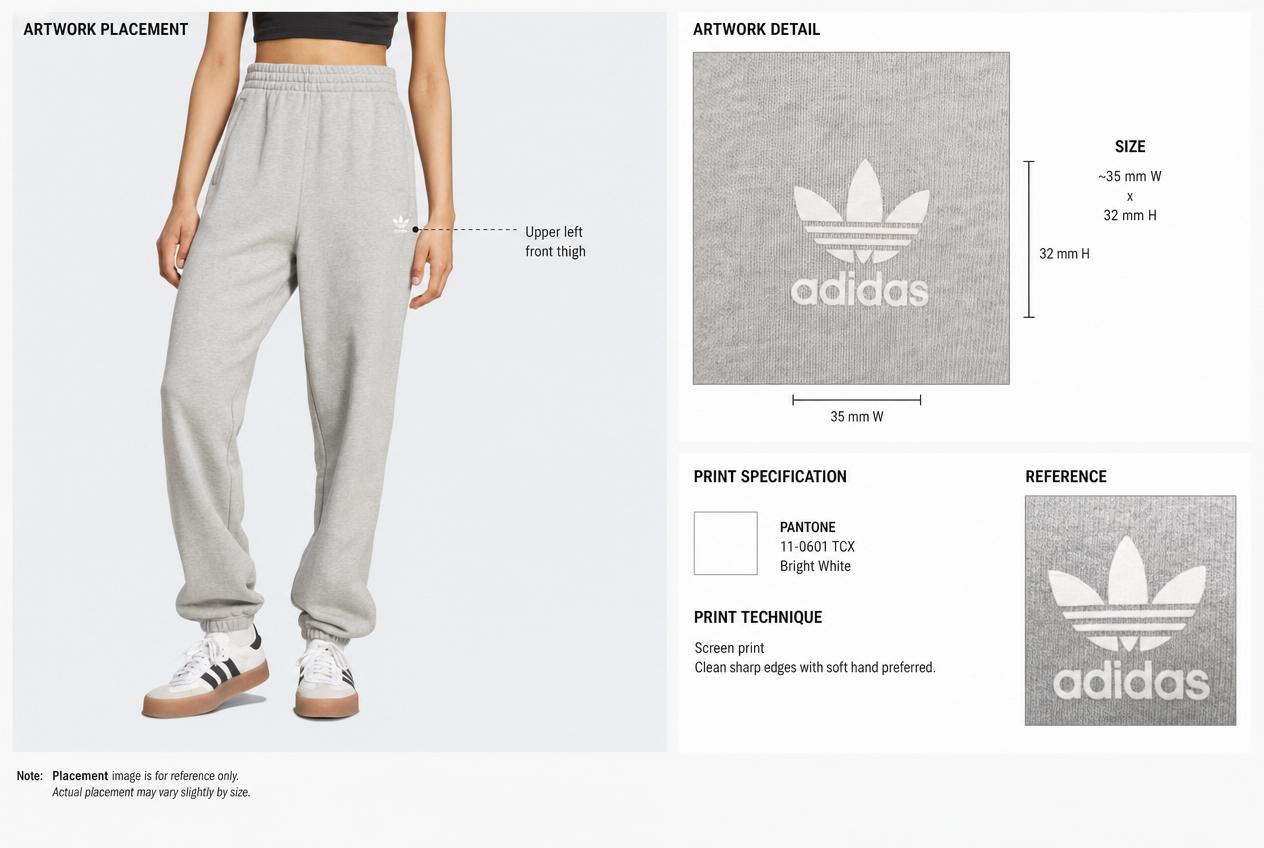

Logo print

Small white brand logo print, opaque plastisol or silicone transfer, color PANTONE 11-0601 TCX Bright White

Upper left front thigh

Pocket opening reinforcement tape

Lightweight fusible or woven stay tape, 10 mm width

Pocket opening edges

Size label

Woven size pip or heat transfer size marking

Interior waistband near main label

Polybag packaging

Clear recycled PE polybag with size sticker and suffocation warning

Final packing

Colourways

Main body, waistband, cuffsHeather marl effect in body fabricLogo print at upper left front thigh

Graded size chart and bill of materials

Every row, as generated

Size chart (cm)

21 points of measure · sizes 28, 30, 32, 34, 36, 38 · sample size 32

Point of measure	28	30	32	34	36	38	Tol.
Waist Width - Relaxed (top edge, flat)	35	36	37	38	39.3	40.5	+-1.0
Waist Width - Stretched (top edge, flat)	47	48	49	50	51.3	52.5	+-1.0
Waistband Height	4.8	4.9	5	5.1	5.2	5.3	+-0.5
High Hip Width (10 cm below waistband)	50	51	52	53	54.3	55.5	+-1.0
Hip Width (20 cm below waistband)	53	54.5	56	57.5	59.3	61	+-1.0
Front Rise (incl. waistband)	30	30.5	31	31.5	32	32.5	+-0.7
Back Rise (incl. waistband)	40	40.5	41	41.5	42	42.5	+-0.7
Outseam Length (incl. waistband)	102	103	104	105	106	107	+-1.0
Inseam Length	75	75.5	76	76.5	77	77.5	+-1.0
Thigh Width (2.5 cm below crotch)	33.5	34.3	35	35.8	36.8	37.8	+-0.7
Knee Width (35 cm below crotch)	25	25.5	26	26.5	27	27.5	+-0.7
Calf Width	20.7	21.1	21.5	21.9	22.3	22.7	+-0.7
Leg Opening Width - Relaxed	12.9	13.2	13.5	13.8	14.1	14.4	+-0.5
Leg Opening Width - Stretched	17.7	18.1	18.5	18.9	19.3	19.7	+-0.5
Bottom Cuff Height	5.8	5.9	6	6.1	6.2	6.3	+-0.5
Front Pocket Opening Length	15.6	15.8	16	16.2	16.4	16.6	+-0.5
Front Pocket Bag Depth	23.4	23.7	24	24.3	24.6	24.9	+-0.5
Front Pocket Bag Width	16.4	16.7	17	17.3	17.6	17.9	+-0.5
Pocket Facing Width	3.8	3.9	4	4.1	4.2	4.3	+-0.3
Front Crotch Seam Length	26.2	26.6	27	27.4	27.8	28.2	+-0.5
Back Crotch Seam Length	36	36.5	37	37.5	38	38.5	+-0.5

Bill of materials

12 lines

#	Item	Specification	Qty
1	Main shell fleece	320 GSM cotton/polyester brushed-back fleece, heather grey marl, soft handfeel, compact face, lightly brushed interior · Body panels, waistband outer, cuff outer	1.45 m
2	Pocketing fabric	Self-fabric pocket bags in matching heather grey fleece or lighter weight single jersey pocketing, color matched to PANTONE 420 C · Front slanted pocket bags	0.28 m
3	Waist elastic	Knitted elastic, 40 mm width, soft stretch recovery, inserted into self-fabric waistband tunnel · Inside waistband	0.72 m
4	Bottom hem elastic	Knitted elastic, 8-10 mm width, soft recovery for gathered ankle opening · Inside each leg opening hem tunnel	0.52 m
5	Sewing thread	100% polyester core-spun thread, Tex 27-40, color matched to PANTONE 420 C · All major seams and topstitching	180 m
6	Coverstitch thread	Polyester texturized thread for waistband and hem topstitching, matching heather grey · Waistband channels, pocket opening topstitch, ankle casing topstitch	65 m
7	Care/content label	Printed satin or polyester care label, white ground with black text · Interior back waistband seam	1 pc
8	Brand main label	Heat transfer or woven main brand label, tonal or white/black branding · Interior back waistband	1 pc
9	Logo print	Small white brand logo print, opaque plastisol or silicone transfer, color PANTONE 11-0601 TCX Bright White · Upper left front thigh	1 pc
10	Pocket opening reinforcement tape	Lightweight fusible or woven stay tape, 10 mm width · Pocket opening edges	0.5 m
11	Size label	Woven size pip or heat transfer size marking · Interior waistband near main label	1 pc
12	Polybag packaging	Clear recycled PE polybag with size sticker and suffocation warning · Final packing	1 pc

More pages of the tech pack

The other views, exactly as generated

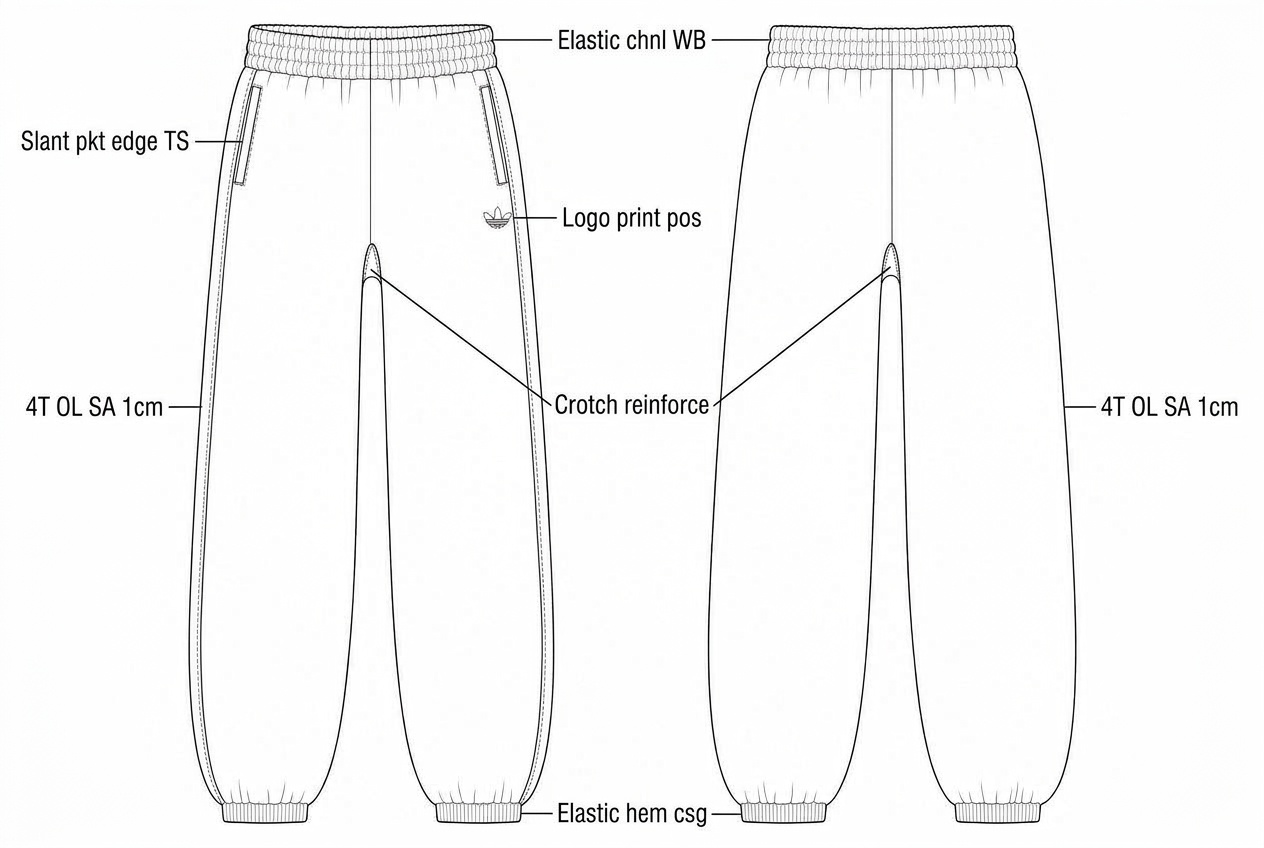

Cuffed Joggers: Sewing details: every construction callout drawn on the flat — Sewing details: every construction callout drawn on the flat

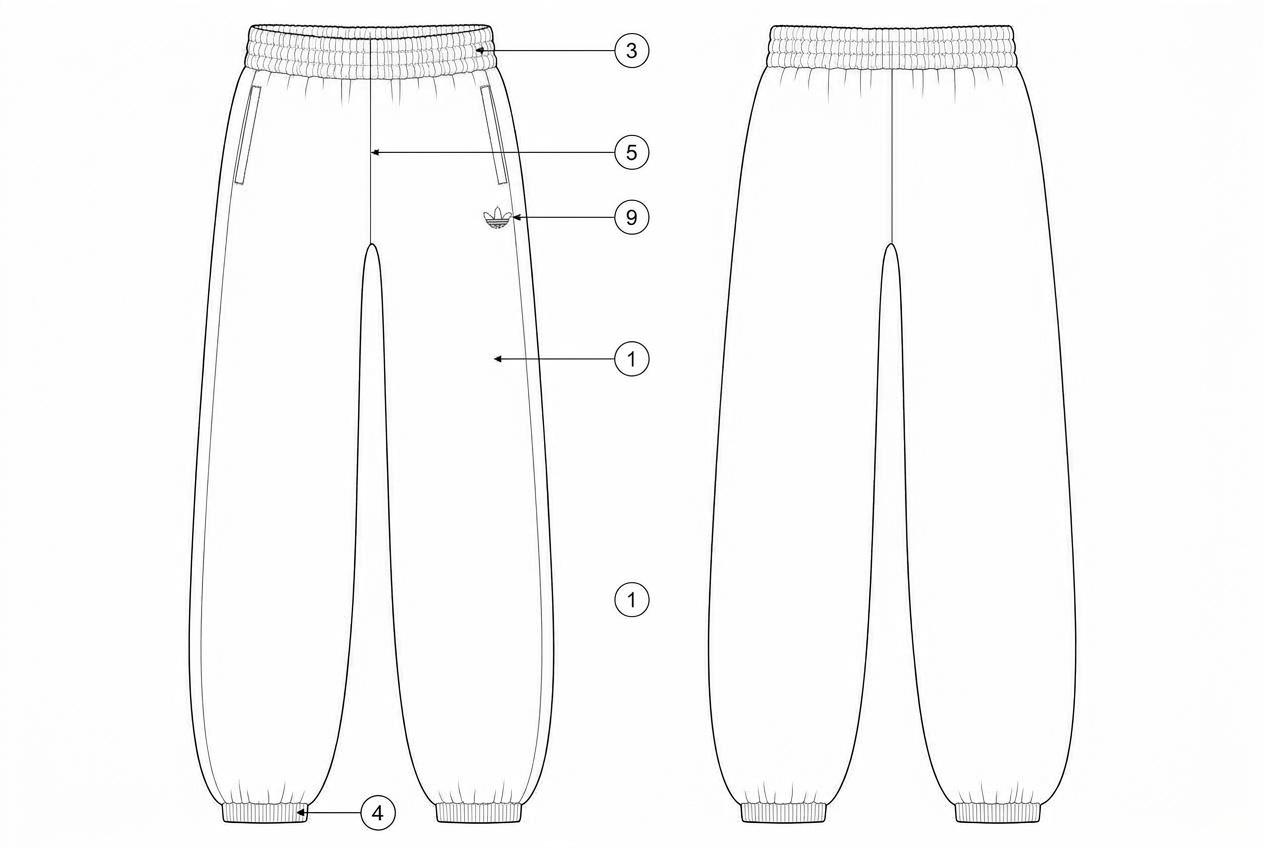

Cuffed Joggers: Materials callout: each material numbered on the garment — Materials callout: each material numbered on the garment

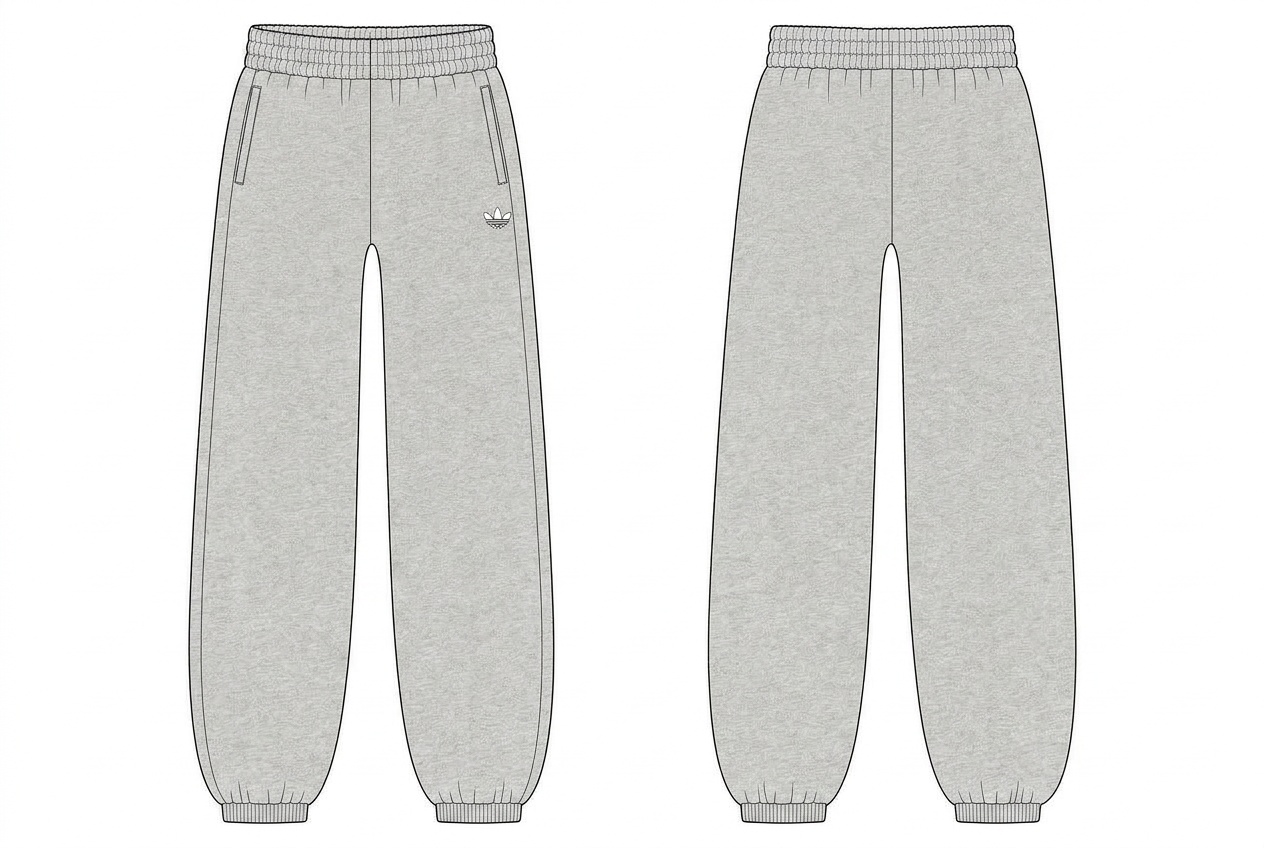

Cuffed Joggers: Coloured mock-up in the sampled colourway — Coloured mock-up in the sampled colourway

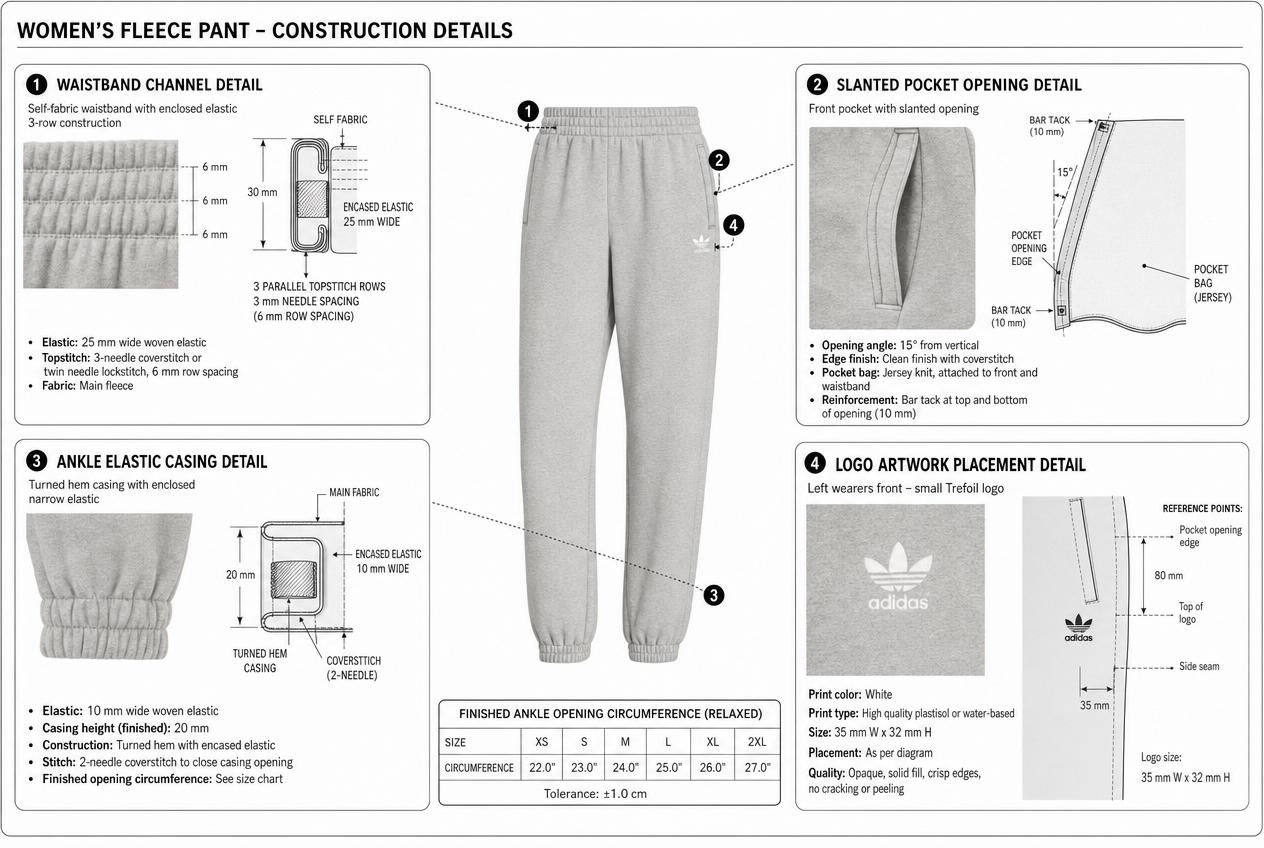

Cuffed Joggers: Detailed views: closures, seams, trims — Detailed views: closures, seams, trims
