Main denim fabric
11.5 oz stretch denim, approx. 98% cotton / 2% elastane, enzyme/light stone washed in light blue cast using PANTONE 14-4112 TCX base with darker side shading in PANTONE 16-4030 TCX
Front and back body, waistband, fly, belt loops
Home › Tech pack examples › High Rise Denim Jeans
Sample tech pack · Wide-leg jeans
High Rise Denim Jeans, drawn up start to finish

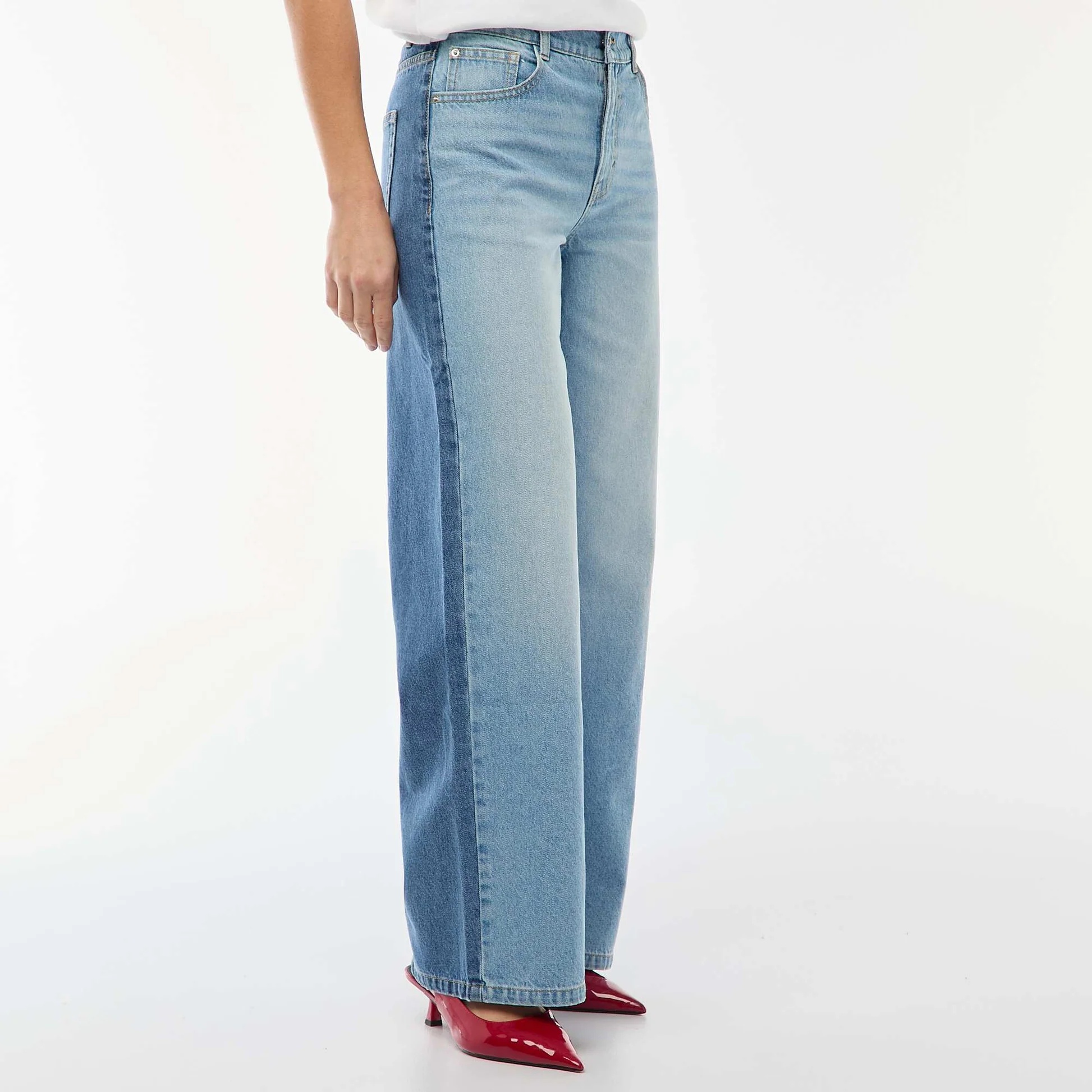

24 points of measure graded across 6 sizes, 12 bill-of-materials lines, 12 materials with their swatches, 8 construction callouts, 5 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

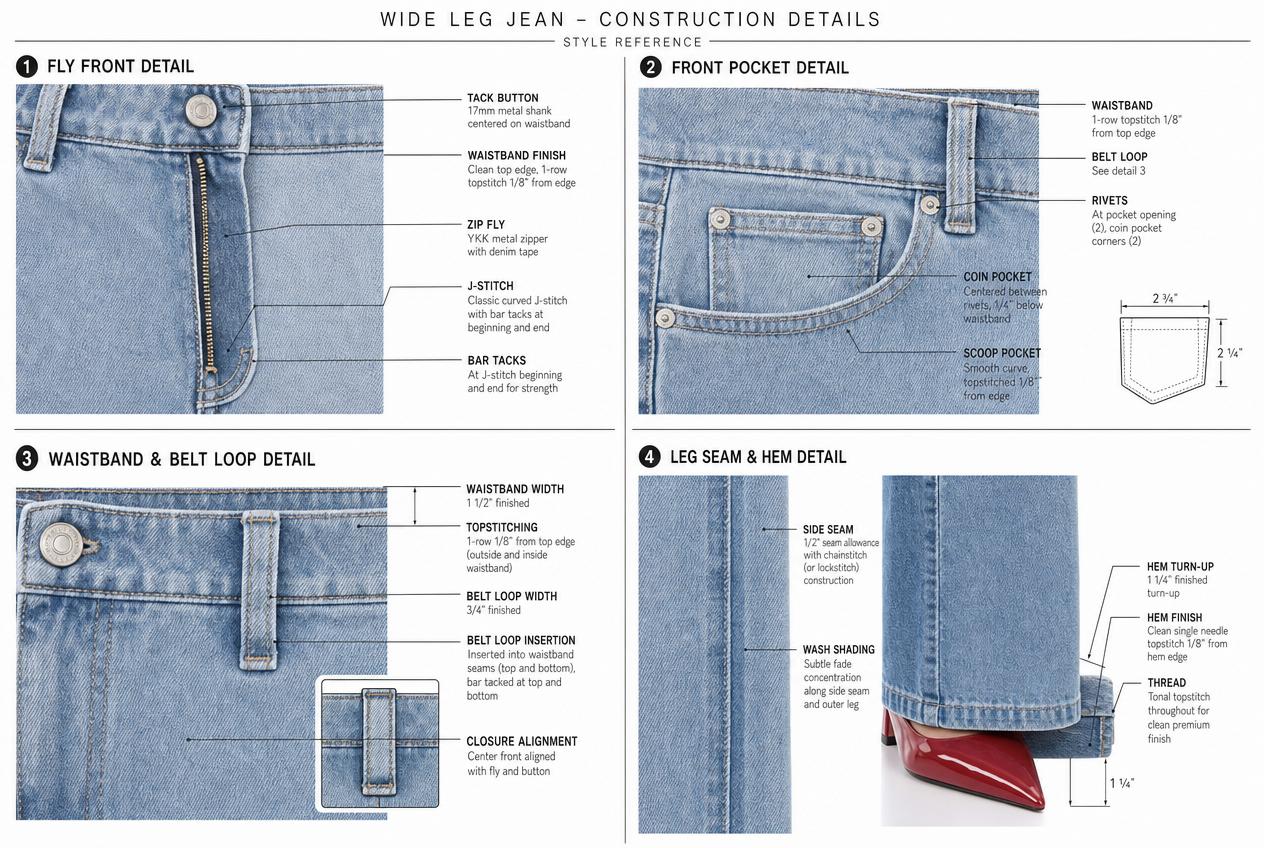

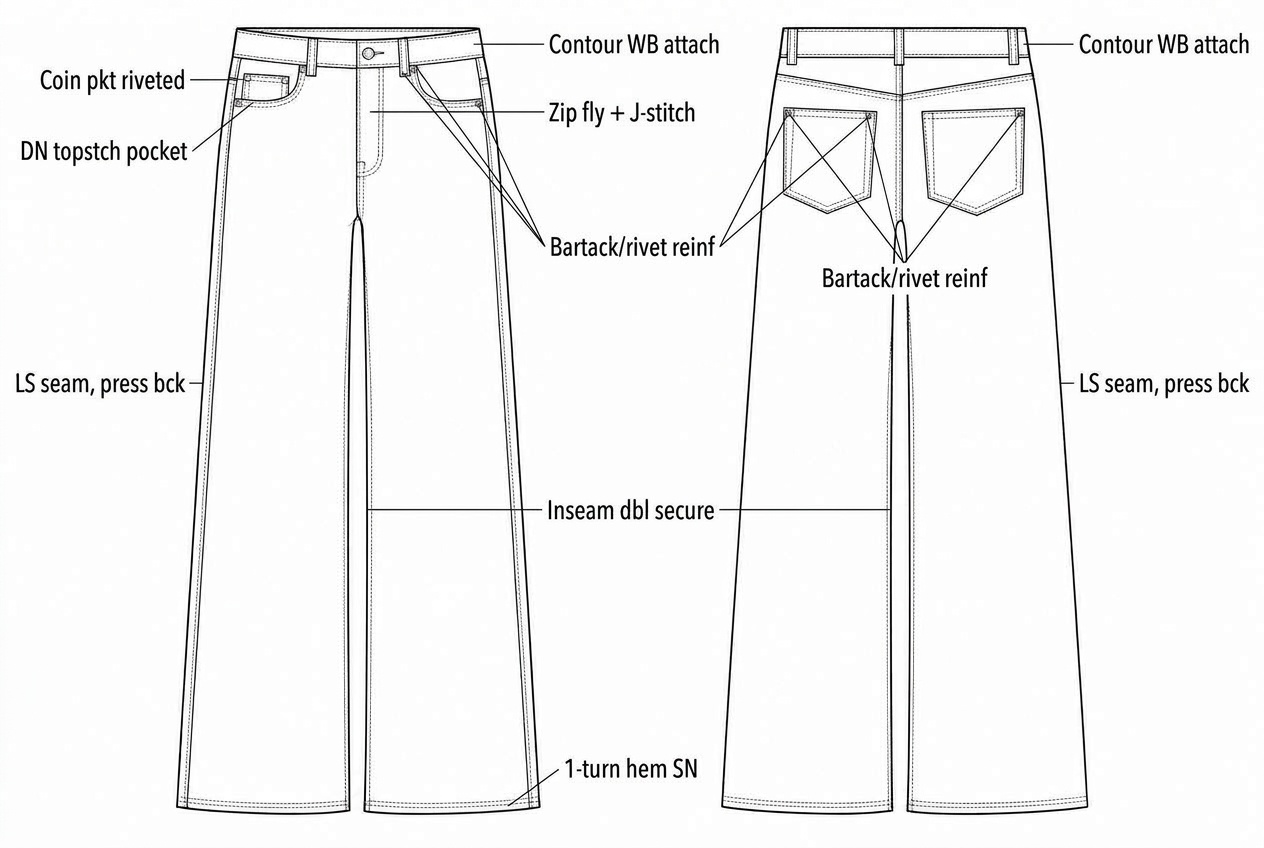

- Front fly: Zip fly + J-stitch
- Front pocket opening: DN topstch pocket
- Coin pocket: Coin pkt riveted
- Side seam: LS seam, press bck
- Inseam: Inseam dbl secure
- Waistband: Contour WB attach
- Hem: 1-turn hem SN
- Pocket stress points: Bartack/rivet reinf

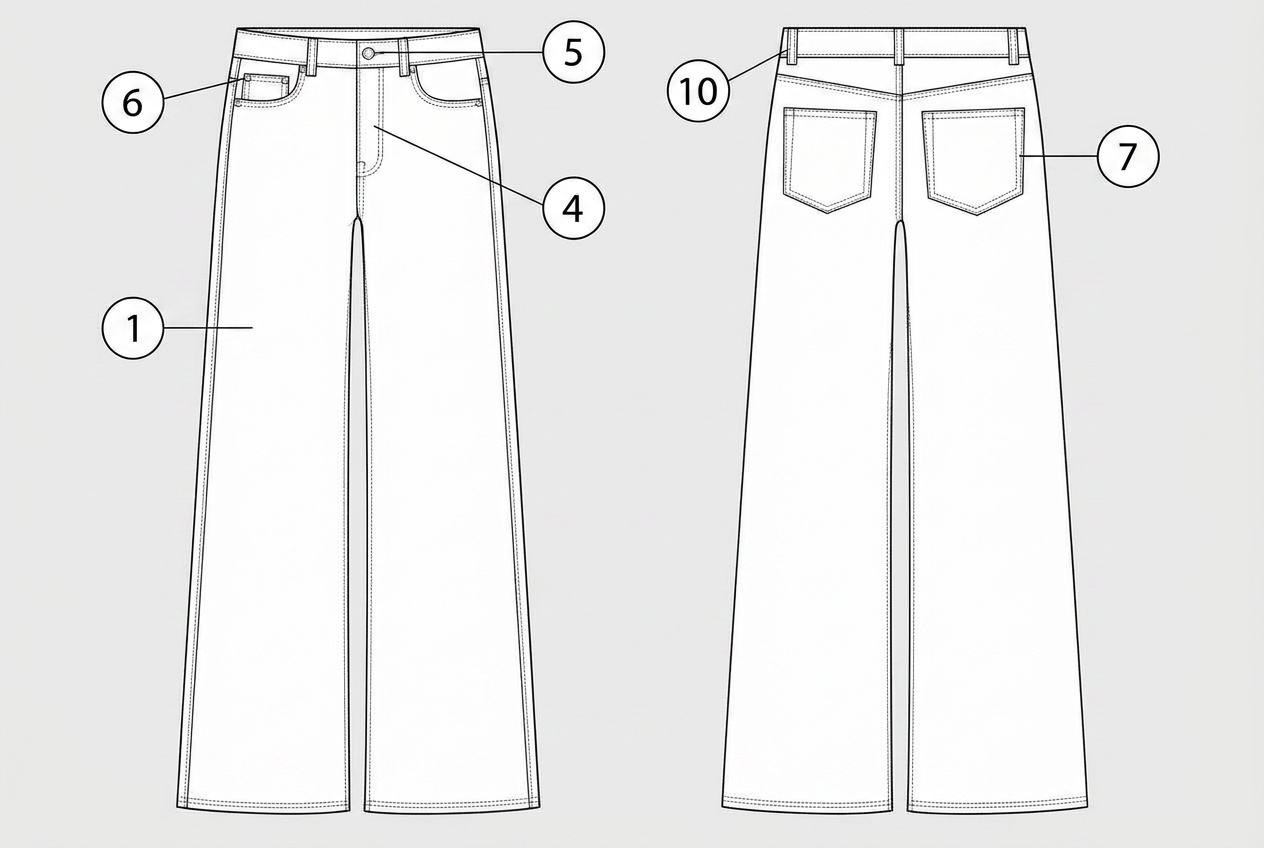

Materials
12 materials, each with its swatch, composition and placement
Pocketing fabric
Lightweight plain weave pocketing, 100% cotton, natural ecru, 110-130 gsm
Front pocket bags and coin pocket facing
Waistband interfacing
Fusible woven interfacing, medium weight, white, stabilized for waistband and fly support
Waistband and fly extension
Front zipper
Metal jean zipper, silver finish, locking auto-lock slider, approx. 12 cm length
Center front fly
Waist button
Jeans tack button, silver metal finish, embossed or plain cap, 17 mm
Center front waistband closure
Rivets
Jeans rivets, silver metal finish, standard cap rivets 9 mm
Front pocket corners and coin pocket corner reinforcements
Sewing thread
Core-spun poly/cotton denim assembly thread, tonal blue-grey matching PANTONE 15-4306 TCX, Tex 40/60 mix by operation
Assembly and topstitching throughout
Care label
Printed satin care/content label, white ground with black print
Interior waistband or side seam
Brand label
Woven brand label or waistband interior brand print, tonal branding
Interior waistband
Belt loops
Self-fabric belt loops cut from main denim, turned and edge stitched
Waistband perimeter
Hangtag set
Paper hangtag with string fastener and size sticker
Retail packaging attachment
Polybag
Clear recycled PE polybag with suffocation warning print
Final packing

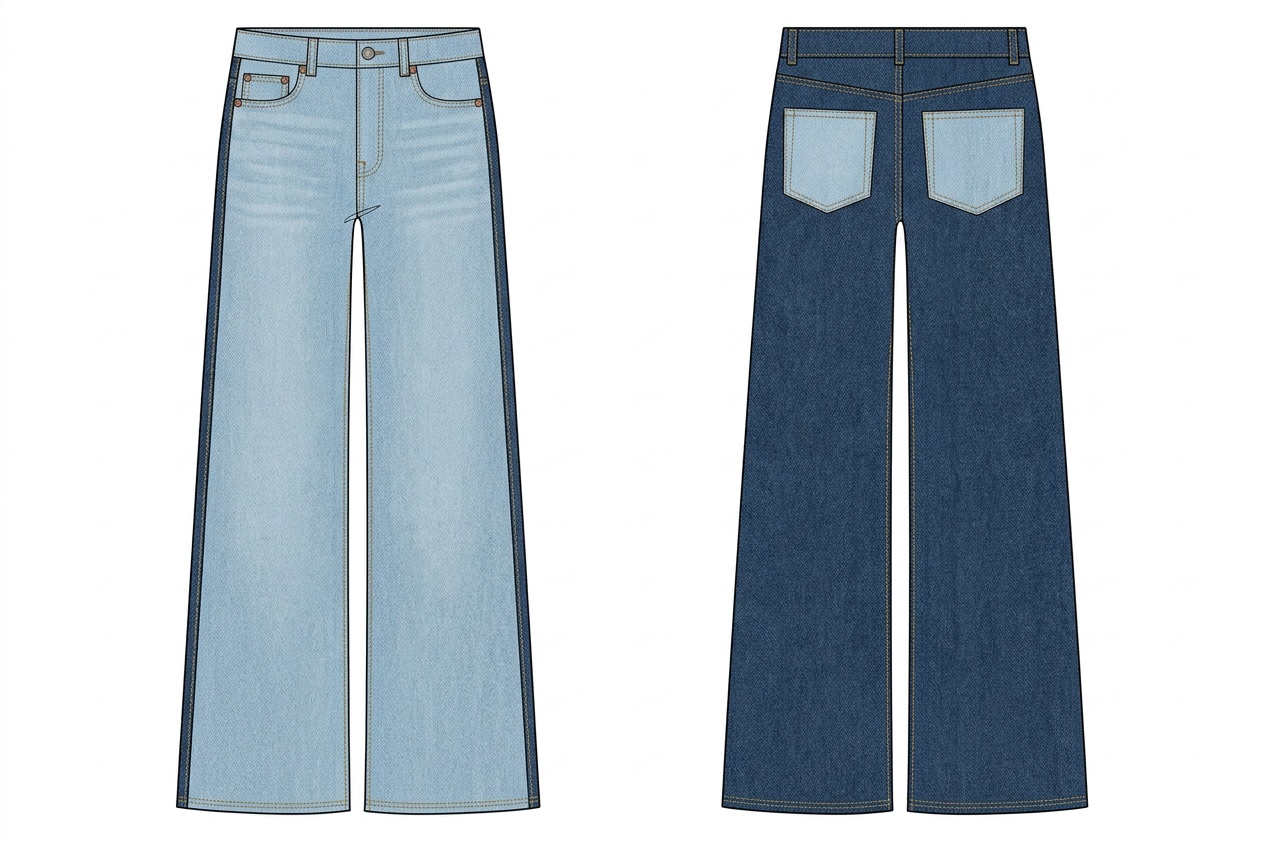

Colourways
Main body denim base washSide seam and outer leg darker castWhisker/highlight faded areasTopstitch thread tonal blue-greyMetal rivets and hardware silver
Graded size chart and bill of materials
Every row, as generated
Size chart (cm)

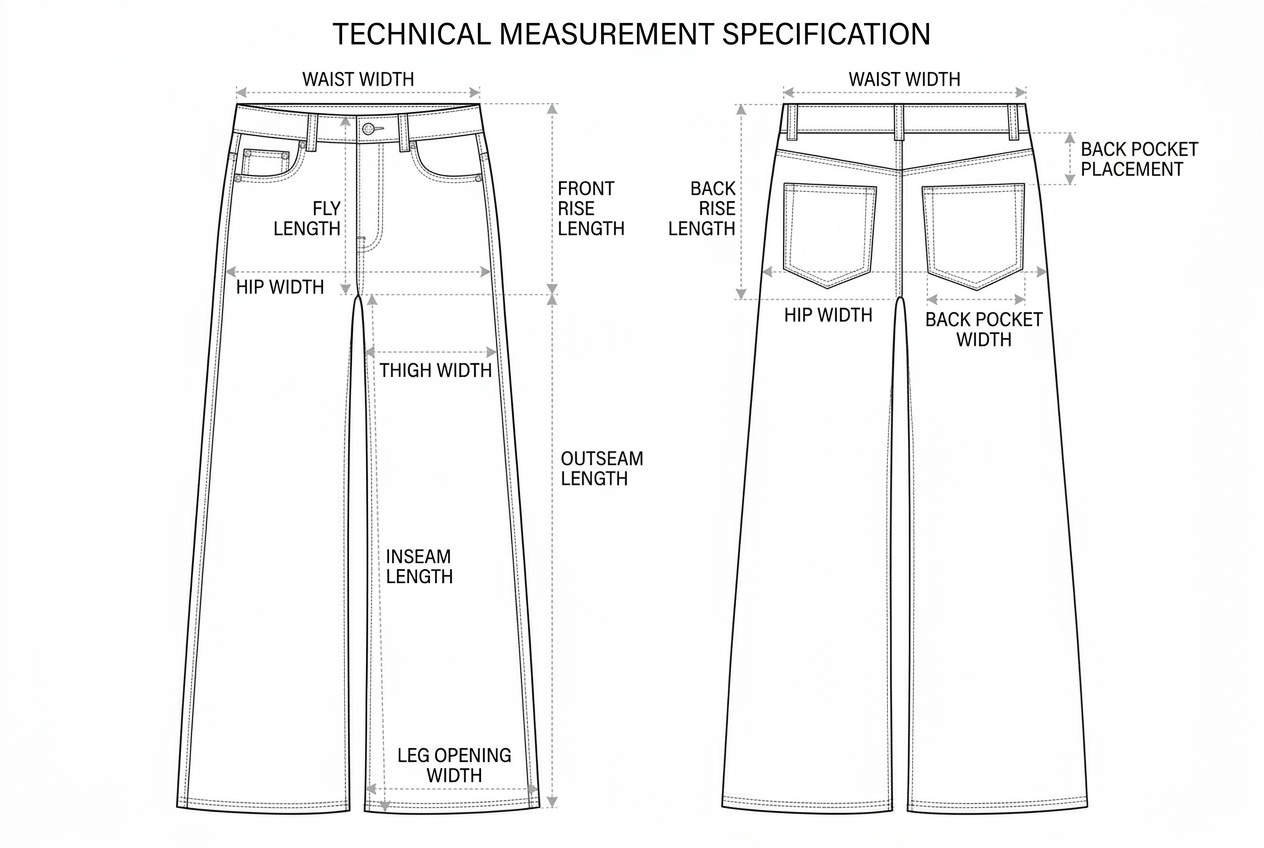

24 points of measure · sizes 28, 30, 32, 34, 36, 38 · sample size 32 · graded from the sample size
| Point of measure | 28 | 30 | 32 | 34 | 36 | 38 | Tol. |
|---|---|---|---|---|---|---|---|
| Waist Width (laid flat, top edge aligned) | 38 | 39.5 | 41 | 42.5 | 44 | 45.5 | +/- 0.5 |
| High Hip Width (10 cm below top waistband) | 45.5 | 46.5 | 47.5 | 48.5 | 49.5 | 50.5 | +/- 0.75 |
| Hip Width (20 cm below top waistband) | 50 | 51 | 52 | 53 | 54 | 55 | +/- 0.75 |
| Front Rise Length (including waistband) | 28.9 | 29.2 | 29.5 | 29.8 | 30.1 | 30.4 | +/- 0.5 |
| Back Rise Length (including waistband) | 38.7 | 39.1 | 39.5 | 39.9 | 40.3 | 40.7 | +/- 0.5 |
| Crotch Length / Seat Length (front waist through crotch to back waist) | 66.9 | 67.7 | 68.5 | 69.3 | 70.1 | 70.9 | +/- 1 |
| Thigh Width (2.5 cm below crotch) | 32.3 | 32.9 | 33.5 | 34.1 | 34.7 | 35.3 | +/- 0.5 |
| Knee Width (35 cm below crotch) | 29 | 29.5 | 30 | 30.5 | 31 | 31.5 | +/- 0.5 |
| Leg Opening Width | 27.7 | 28.1 | 28.5 | 28.9 | 29.3 | 29.7 | +/- 0.5 |
| Inseam Length | 80.4 | 80.7 | 81 | 81.3 | 81.6 | 81.9 | +/- 0.75 |
| Outseam Length (including waistband) | 107.4 | 107.7 | 108 | 108.3 | 108.6 | 108.9 | +/- 0.75 |
| Waistband Height | 4 | 4 | 4 | 4 | 4 | 4 | +/- 0.2 |
| Fly Length | 15.6 | 15.8 | 16 | 16.2 | 16.4 | 16.6 | +/- 0.3 |
| Front Pocket Opening Length | 14.1 | 14.3 | 14.5 | 14.7 | 14.9 | 15.1 | +/- 0.3 |
| Front Pocket Bag Depth | 16.1 | 16.3 | 16.5 | 16.7 | 16.9 | 17.1 | +/- 0.5 |
| Coin Pocket Opening Width | 7.8 | 7.9 | 8 | 8.1 | 8.2 | 8.3 | +/- 0.2 |
| Coin Pocket Height | 8.8 | 8.9 | 9 | 9.1 | 9.2 | 9.3 | +/- 0.2 |
| Back Yoke Height at Center Back | 8.3 | 8.4 | 8.5 | 8.6 | 8.7 | 8.8 | +/- 0.3 |
| Back Pocket Width | 13.6 | 13.8 | 14 | 14.2 | 14.4 | 14.6 | +/- 0.3 |
| Back Pocket Height at Center | 15.1 | 15.3 | 15.5 | 15.7 | 15.9 | 16.1 | +/- 0.3 |
| Back Pocket Placement from Waist Seam to Pocket Top | 4.8 | 4.9 | 5 | 5.1 | 5.2 | 5.3 | +/- 0.3 |
| Back Pocket Placement from Center Back to Inner Pocket Edge | 7.2 | 7.4 | 7.5 | 7.7 | 7.8 | 8 | +/- 0.3 |
| Belt Loop Length (finished) | 6 | 6 | 6 | 6 | 6 | 6 | +/- 0.2 |
| Belt Loop Width (finished) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | +/- 0.1 |
Bill of materials
12 lines
| # | Item | Specification | Qty |
|---|---|---|---|
| 1 | Main denim fabric | 11.5 oz stretch denim, approx. 98% cotton / 2% elastane, enzyme/light stone washed in light blue cast using PANTONE 14-4112 TCX base with darker side shading in PANTONE 16-4030 TCX · Front and back body, waistband, fly, belt loops | 1.65 m |
| 2 | Pocketing fabric | Lightweight plain weave pocketing, 100% cotton, natural ecru, 110-130 gsm · Front pocket bags and coin pocket facing | 0.3 m |
| 3 | Waistband interfacing | Fusible woven interfacing, medium weight, white, stabilized for waistband and fly support · Waistband and fly extension | 0.12 m |
| 4 | Front zipper | Metal jean zipper, silver finish, locking auto-lock slider, approx. 12 cm length · Center front fly | 1 pc |
| 5 | Waist button | Jeans tack button, silver metal finish, embossed or plain cap, 17 mm · Center front waistband closure | 1 pc |
| 6 | Rivets | Jeans rivets, silver metal finish, standard cap rivets 9 mm · Front pocket corners and coin pocket corner reinforcements | 5 pc |
| 7 | Sewing thread | Core-spun poly/cotton denim assembly thread, tonal blue-grey matching PANTONE 15-4306 TCX, Tex 40/60 mix by operation · Assembly and topstitching throughout | 140 m |
| 8 | Care label | Printed satin care/content label, white ground with black print · Interior waistband or side seam | 1 pc |
| 9 | Brand label | Woven brand label or waistband interior brand print, tonal branding · Interior waistband | 1 pc |
| 10 | Belt loops | Self-fabric belt loops cut from main denim, turned and edge stitched · Waistband perimeter | 5 pc |
| 11 | Hangtag set | Paper hangtag with string fastener and size sticker · Retail packaging attachment | 1 set |
| 12 | Polybag | Clear recycled PE polybag with suffocation warning print · Final packing | 1 pc |
More pages of the tech pack
The other views, exactly as generated
What the tech pack contains
13 sections in this document
- ✓Flat Sketchincluded
- ✓Sewing Detailsincluded
- ✓Materialsincluded
- ✓Size Tableincluded
- ✓Bill of Materialsincluded
- ✓Product Infoincluded
- ✓Materials Calloutincluded
- ✓Colored Mockupsincluded
- ✓Pantone Colorsincluded
- ✓Detailed Drawingsincluded
- ·Artworknot in this sample
- ✓Construction Guideincluded
- ·Fit Lognot in this sample
- ✓PDF exportincluded
- ✓Excel exportincluded
- ·Editable SVG sketchnot in this sample
