Self fabric body
180 GSM 100% cotton single jersey, reactive dyed, soft handfeel, color 19-4025 TCX navy
Front body, back body, sleeves
Home › Tech pack examples › Graphic Tee
Sample tech pack · Graphic crew neck T-shirt
Graphic Tee, drawn up start to finish
17 points of measure graded across 5 sizes, 10 bill-of-materials lines, 10 materials with their swatches, 7 construction callouts, 9 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

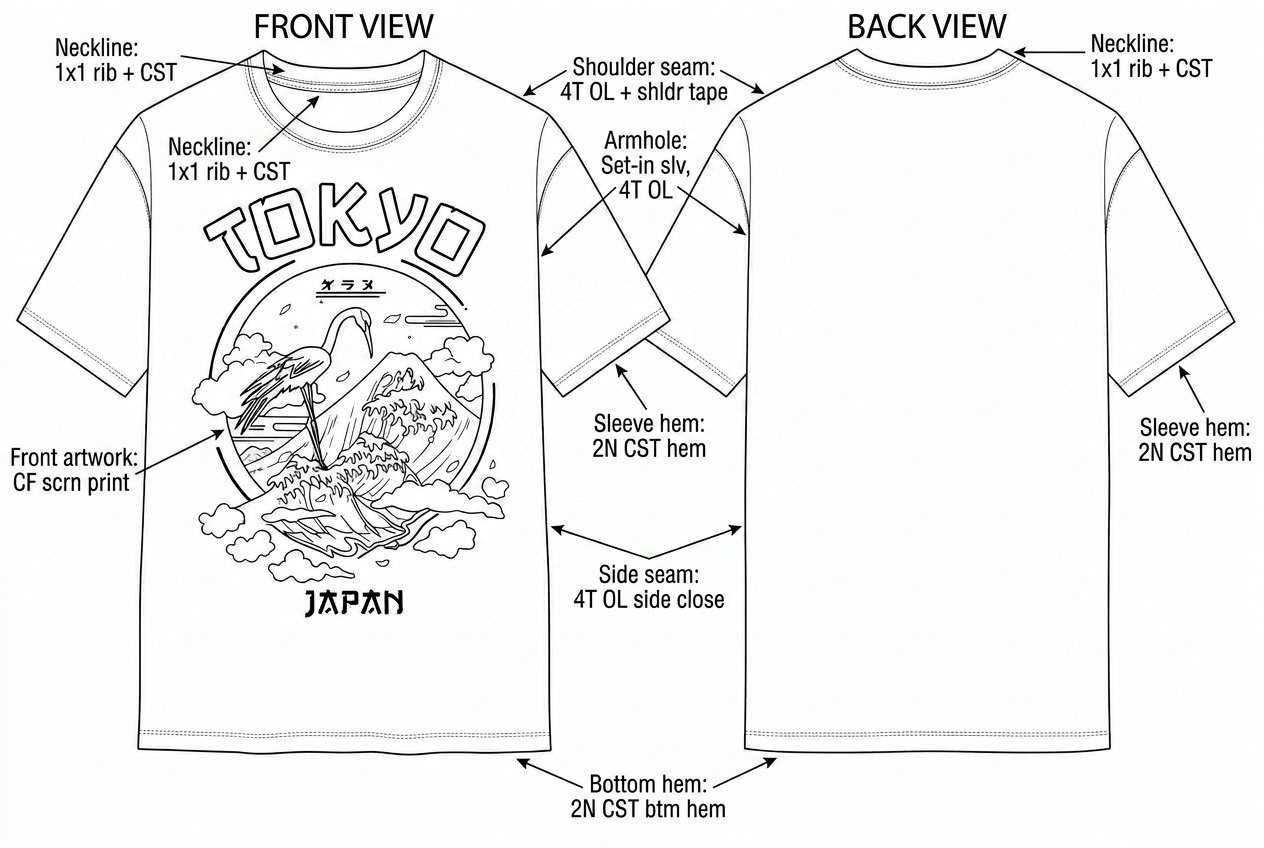

- Neckline: 1x1 rib + CST
- Shoulder seam: 4T OL + shldr tape
- Armhole: Set-in slv, 4T OL
- Side seam: 4T OL side close
- Sleeve hem: 2N CST hem
- Bottom hem: 2N CST btm hem
- Front artwork: CF scrn print
Materials
10 materials, each with its swatch, composition and placement

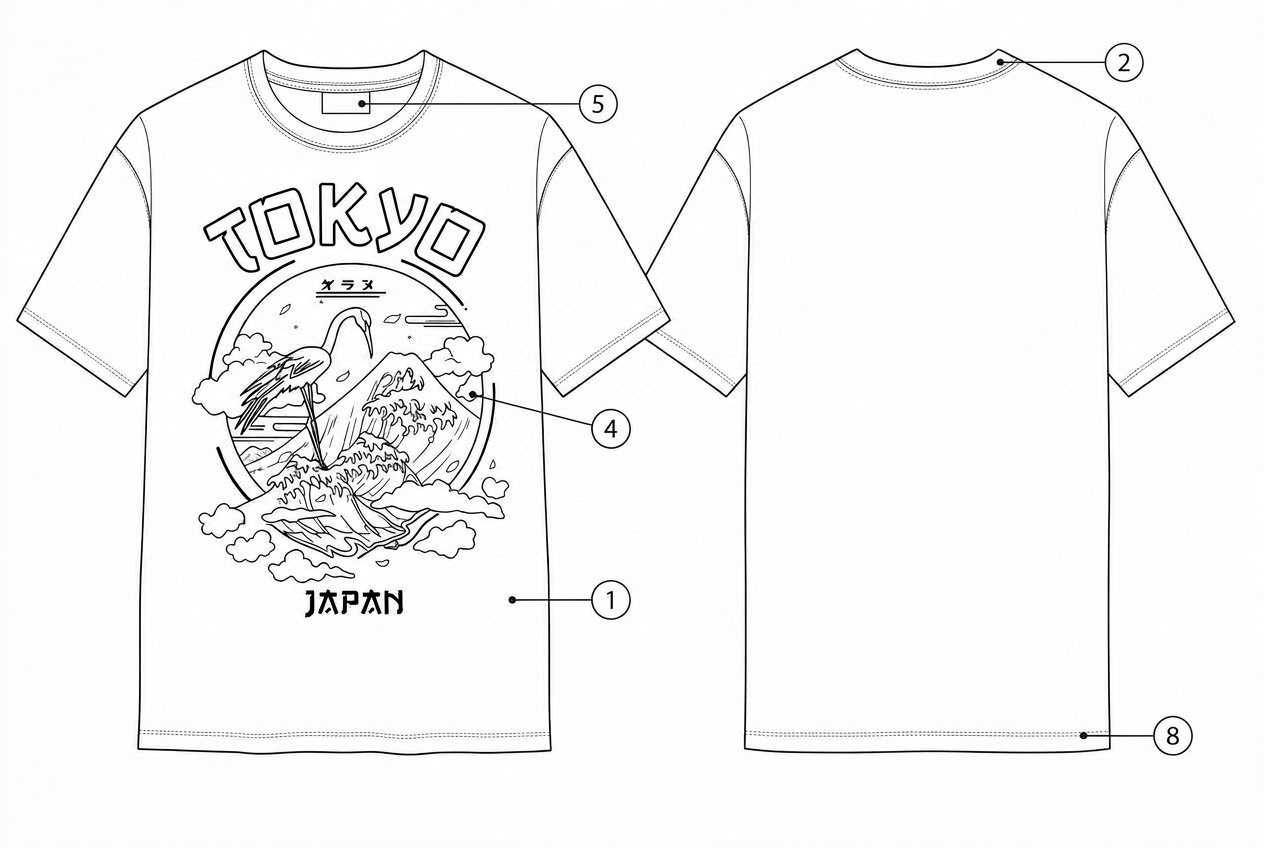

Neck rib
1x1 rib knit, 95% cotton / 5% elastane, approx. 250 GSM, dyed to match 19-4025 TCX
Crew neckline band
Back neck binding tape
Self-fabric or jersey twill shoulder-to-shoulder tape, navy 19-4025 TCX, 10-12 mm finished width
Inside back neck and shoulder seam stabilization

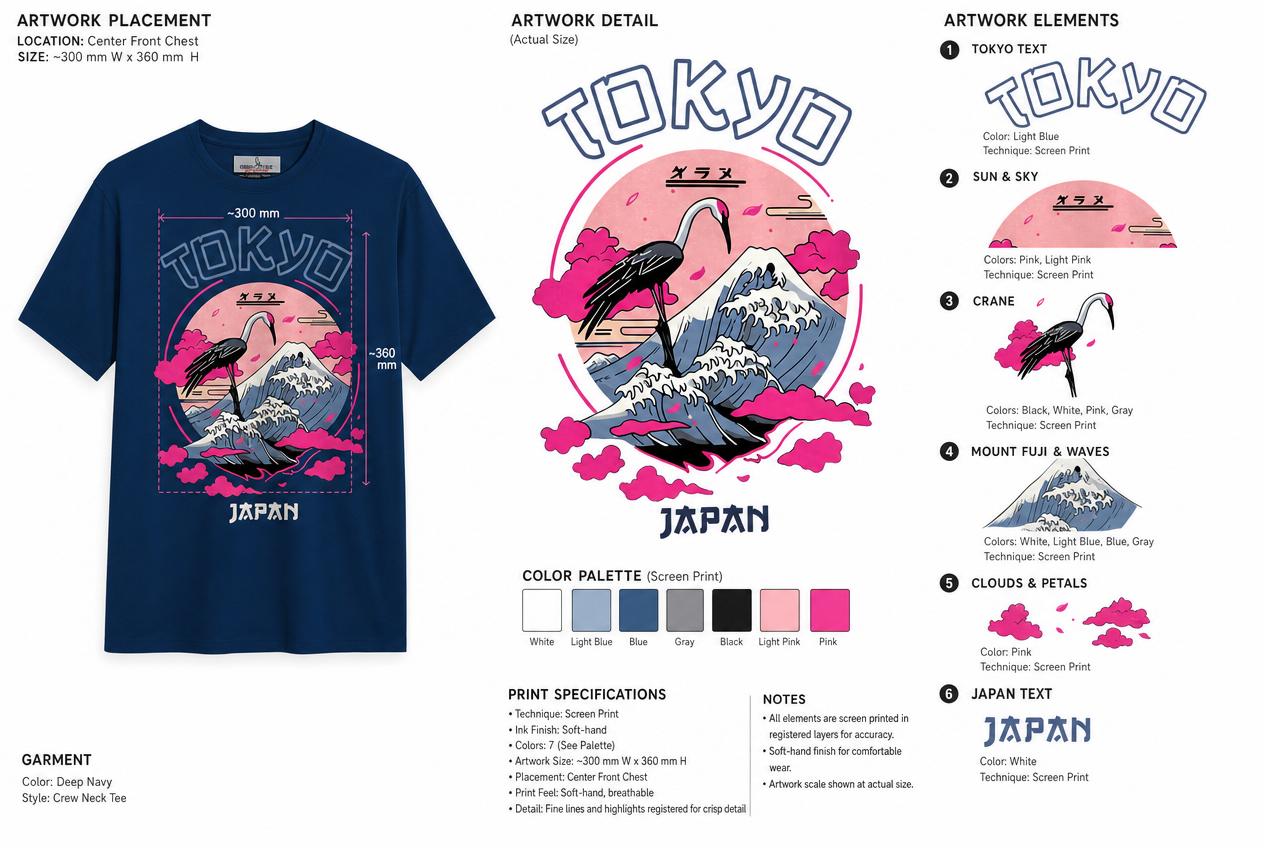

Main graphic print
Large front multicolor screen print using plastisol or soft-hand water-based inks in 13-1520 TCX, 18-2143 TCX, 16-4010 TCX, 11-0601 TCX, 19-0303 TCX, 17-4020 TCX, 14-4102 TCX, 12-0812 TCX
Center front chest and upper torso
Main label
Damask woven brand label, white ground with multicolor logo, center fold
Inside back neck
Size label
Satin or printed size pip label, black on white
Adjacent to main neck label
Care/content label
Printed satin care label with fiber, care, and country of origin information
Inside left side seam
Sewing thread
100% polyester core-spun thread, ticket 40/2 and 60/2, navy matched to 19-4025 TCX
All seams and topstitching
Hangtag
Printed paper hangtag with string fastener
Retail attachment at neck label
Polybag
Clear recyclable polybag with size sticker and suffocation warning
Final packing
Colourways

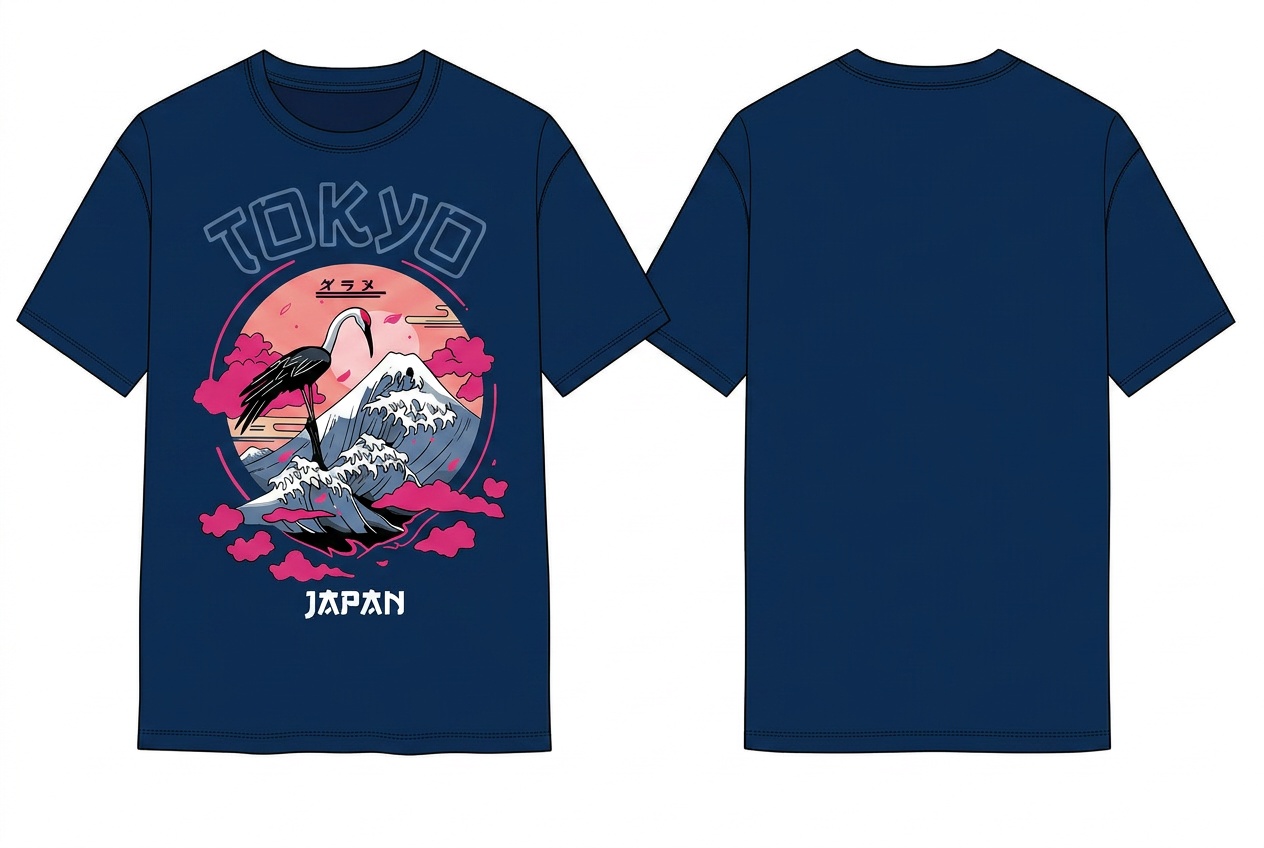

Main body, sleeves, neck ribLarge circular sun graphicCloud accents and circular graphic ringTOKYO outline text and wave shadow blue-greyMount Fuji snow, JAPAN textCrane body and black lineworkWave body medium blueWave highlights and mountain shadow light blueSmall horizon clouds beige
Graded size chart and bill of materials
Every row, as generated
Size chart (cm)

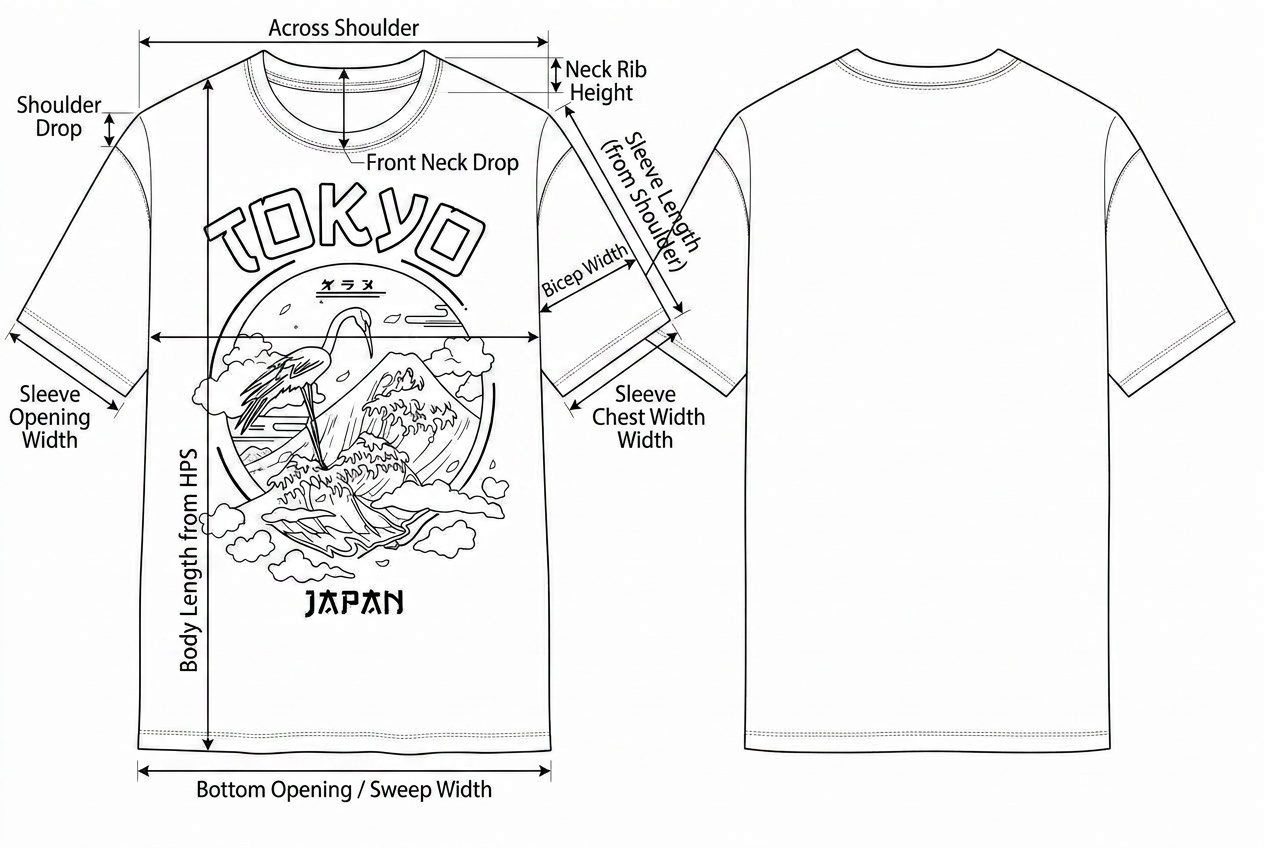

17 points of measure · sizes XS, S, M, L, XL · sample size M
| Point of measure | XS | S | M | L | XL | Tol. |
|---|---|---|---|---|---|---|
| Body Length from HPS | 68 | 70 | 72 | 74 | 76 | ±1.5 cm |
| Chest Width (2.5 cm below armhole) | 50 | 52 | 54 | 56 | 58 | ±1 cm |
| Bottom Opening / Sweep Width | 50 | 52 | 54 | 56 | 58 | ±1 cm |
| Across Shoulder | 46 | 47 | 48 | 49 | 50 | ±1 cm |
| Across Front (7.5 cm below HPS) | 37 | 38 | 39 | 40 | 41 | ±0.7 cm |
| Across Back (7.5 cm below HPS) | 39 | 40 | 41 | 42 | 43 | ±0.7 cm |
| Neck Width (seam to seam) | 17 | 17.5 | 18 | 18.5 | 19 | ±0.5 cm |
| Front Neck Drop from HPS | 8.4 | 8.7 | 9 | 9.3 | 9.6 | ±0.5 cm |
| Back Neck Drop from HPS | 2.1 | 2.3 | 2.5 | 2.7 | 2.9 | ±0.3 cm |
| Armhole Straight | 22.9 | 23.7 | 24.5 | 25.3 | 26.1 | ±0.7 cm |
| Sleeve Length from Shoulder Seam | 20.5 | 21.5 | 22.5 | 23.5 | 24.5 | ±1 cm |
| Sleeve Opening Width | 16 | 17 | 18 | 19 | 20 | ±0.7 cm |
| Bicep Width (2.5 cm below armhole) | 19 | 20 | 21 | 22 | 23 | ±0.7 cm |
| Sleeve Hem Height | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ±0.3 cm |
| Bottom Hem Height | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ±0.3 cm |
| Neck Rib Height | 1.6 | 1.8 | 2 | 2.2 | 2.4 | ±0.3 cm |
| Shoulder Drop (neck point to shoulder point) | 4.1 | 4.3 | 4.5 | 4.7 | 4.9 | ±0.5 cm |
Bill of materials
10 lines
| # | Item | Specification | Qty |
|---|---|---|---|
| 1 | Self fabric body | 180 GSM 100% cotton single jersey, reactive dyed, soft handfeel, color 19-4025 TCX navy · Front body, back body, sleeves | 1.2 m |
| 2 | Neck rib | 1x1 rib knit, 95% cotton / 5% elastane, approx. 250 GSM, dyed to match 19-4025 TCX · Crew neckline band | 0.08 m |
| 3 | Back neck binding tape | Self-fabric or jersey twill shoulder-to-shoulder tape, navy 19-4025 TCX, 10-12 mm finished width · Inside back neck and shoulder seam stabilization | 0.45 m |
| 4 | Main graphic print | Large front multicolor screen print using plastisol or soft-hand water-based inks in 13-1520 TCX, 18-2143 TCX, 16-4010 TCX, 11-0601 TCX, 19-0303 TCX, 17-4020 TCX, 14-4102 TCX, 12-0812 TCX · Center front chest and upper torso | 1 set |
| 5 | Main label | Damask woven brand label, white ground with multicolor logo, center fold · Inside back neck | 1 pc |
| 6 | Size label | Satin or printed size pip label, black on white · Adjacent to main neck label | 1 pc |
| 7 | Care/content label | Printed satin care label with fiber, care, and country of origin information · Inside left side seam | 1 pc |
| 8 | Sewing thread | 100% polyester core-spun thread, ticket 40/2 and 60/2, navy matched to 19-4025 TCX · All seams and topstitching | 85 m |
| 9 | Hangtag | Printed paper hangtag with string fastener · Retail attachment at neck label | 1 set |
| 10 | Polybag | Clear recyclable polybag with size sticker and suffocation warning · Final packing | 1 pc |

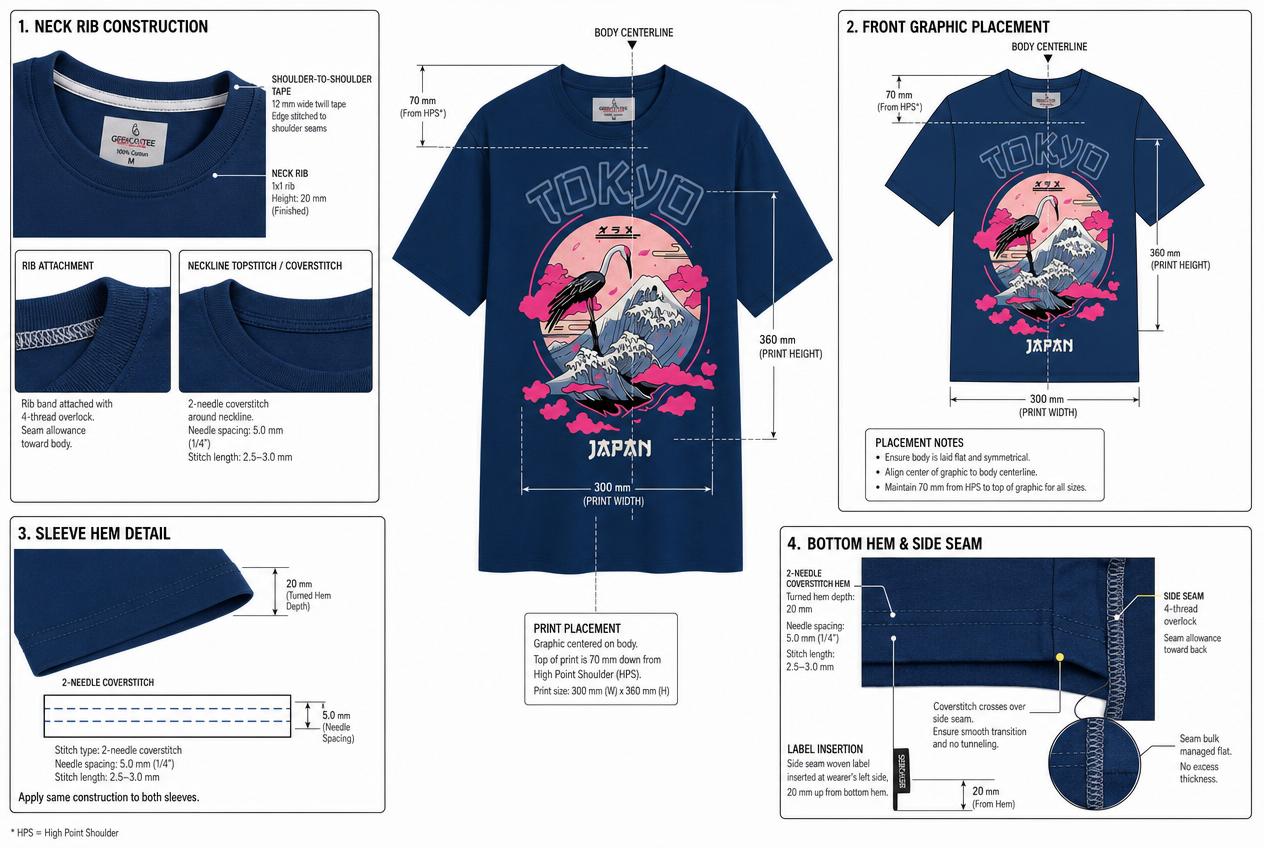

More pages of the tech pack
The other views, exactly as generated
What the tech pack contains
14 sections in this document
- ✓Flat Sketchincluded
- ✓Sewing Detailsincluded
- ✓Materialsincluded
- ✓Size Tableincluded
- ✓Bill of Materialsincluded
- ✓Product Infoincluded
- ✓Materials Calloutincluded
- ✓Colored Mockupsincluded
- ✓Pantone Colorsincluded
- ✓Detailed Drawingsincluded
- ✓Artworkincluded
- ✓Construction Guideincluded
- ·Fit Lognot in this sample
- ✓PDF exportincluded
- ✓Excel exportincluded
- ·Editable SVG sketchnot in this sample
Try it on your own style
Turn your product reference into a detailed tech pack.
Generate a tech pack, freeGet 25 free credits on signup and generate a watermarked preview for your own product.
Generated by Adstronaut AI from a single product photo. Values are the generated draft for this sample; a real tech pack is reviewed and edited before it goes to a factory.
