Sample tech pack · Utility Cargo Pant

Utility Cargo Pant, drawn up start to finish

26 points of measure graded across 5 sizes, 12 bill-of-materials lines, 12 materials with their swatches, 8 construction callouts, 4 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

Download the PDF Excel template Use it as a template

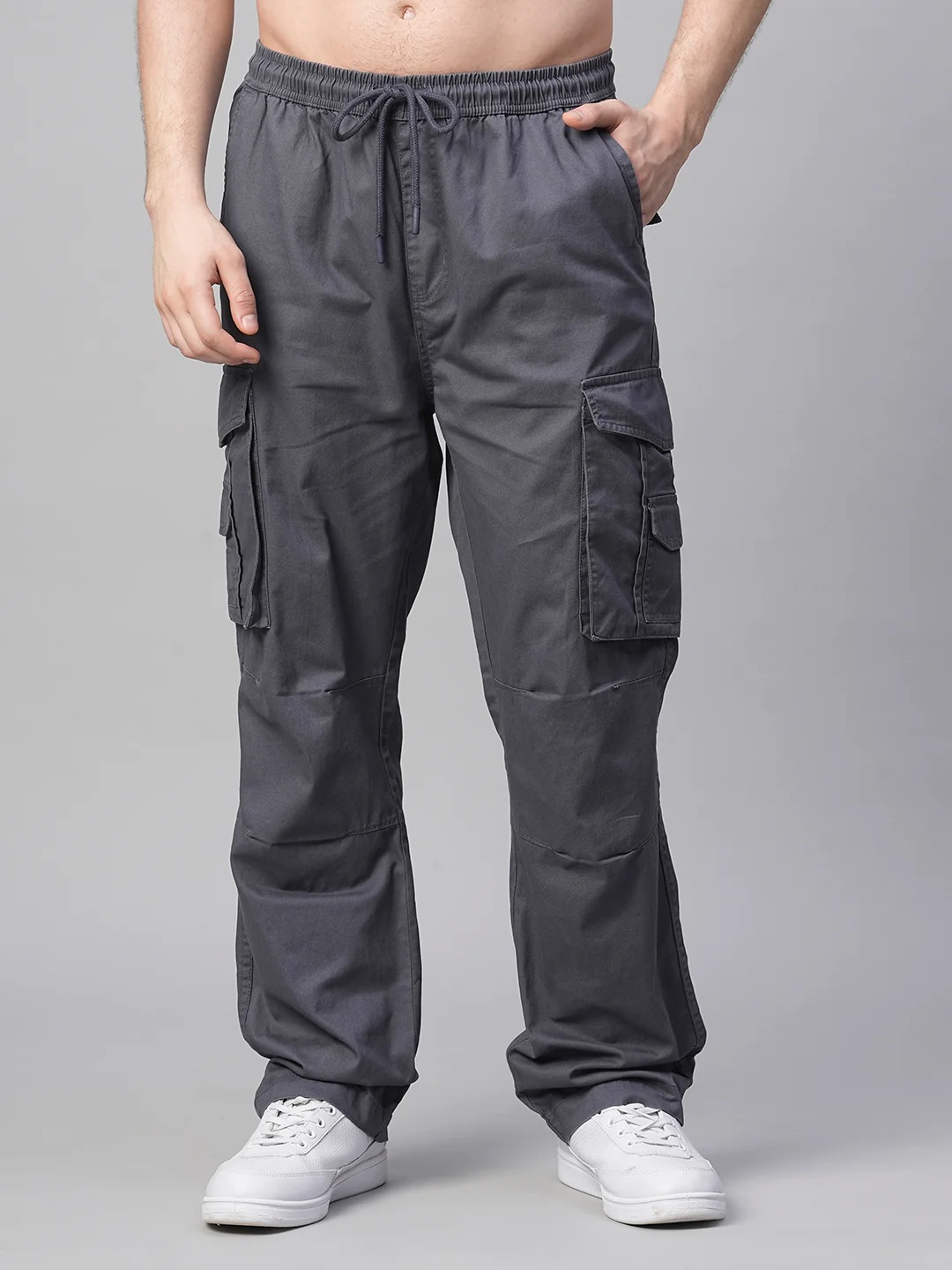

Utility Cargo Pant, the product the tech pack was generated from — SourceOne product photo. Everything else on this page was generated from it.

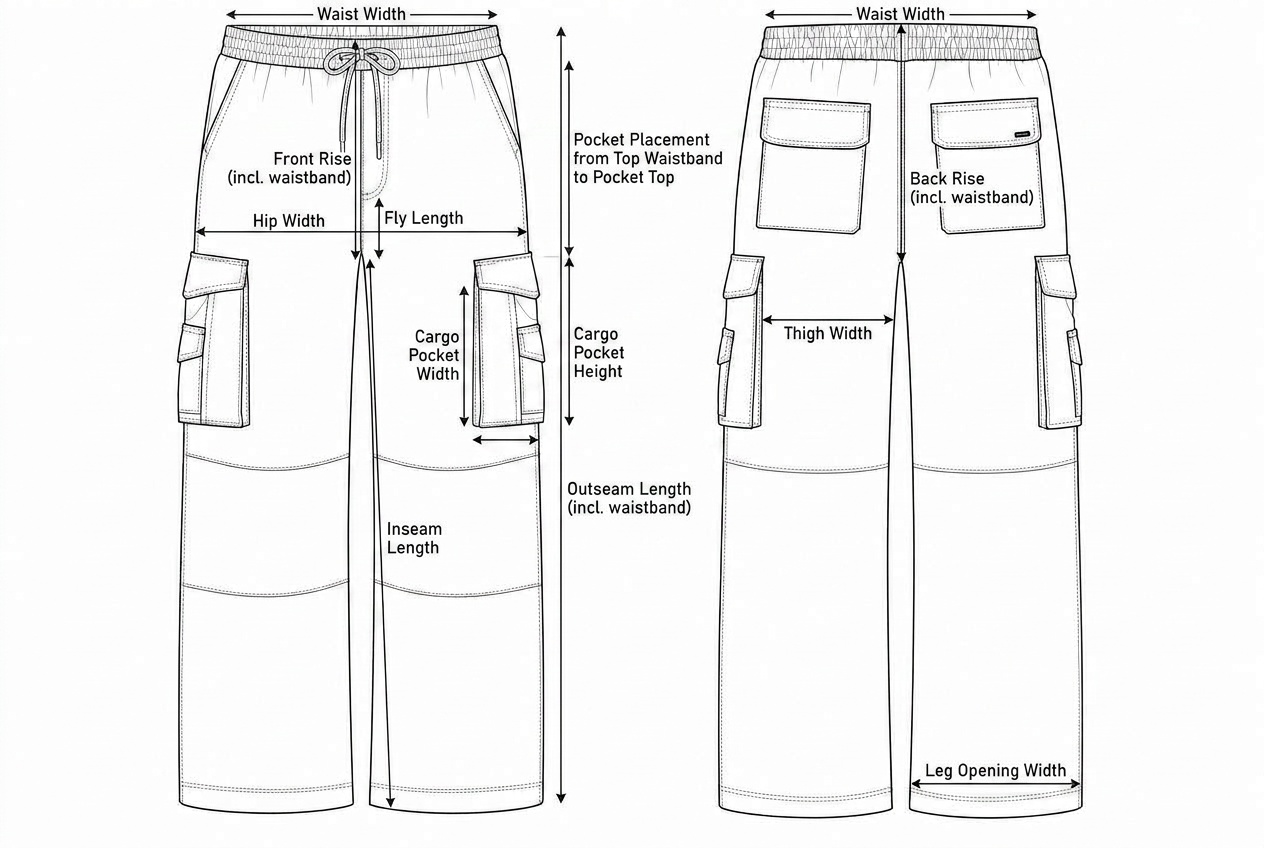

Utility Cargo Pant annotated flat sketch with points of measure — Annotated flat sketch: every point of measure numbered on the drawing, matching the size table below.

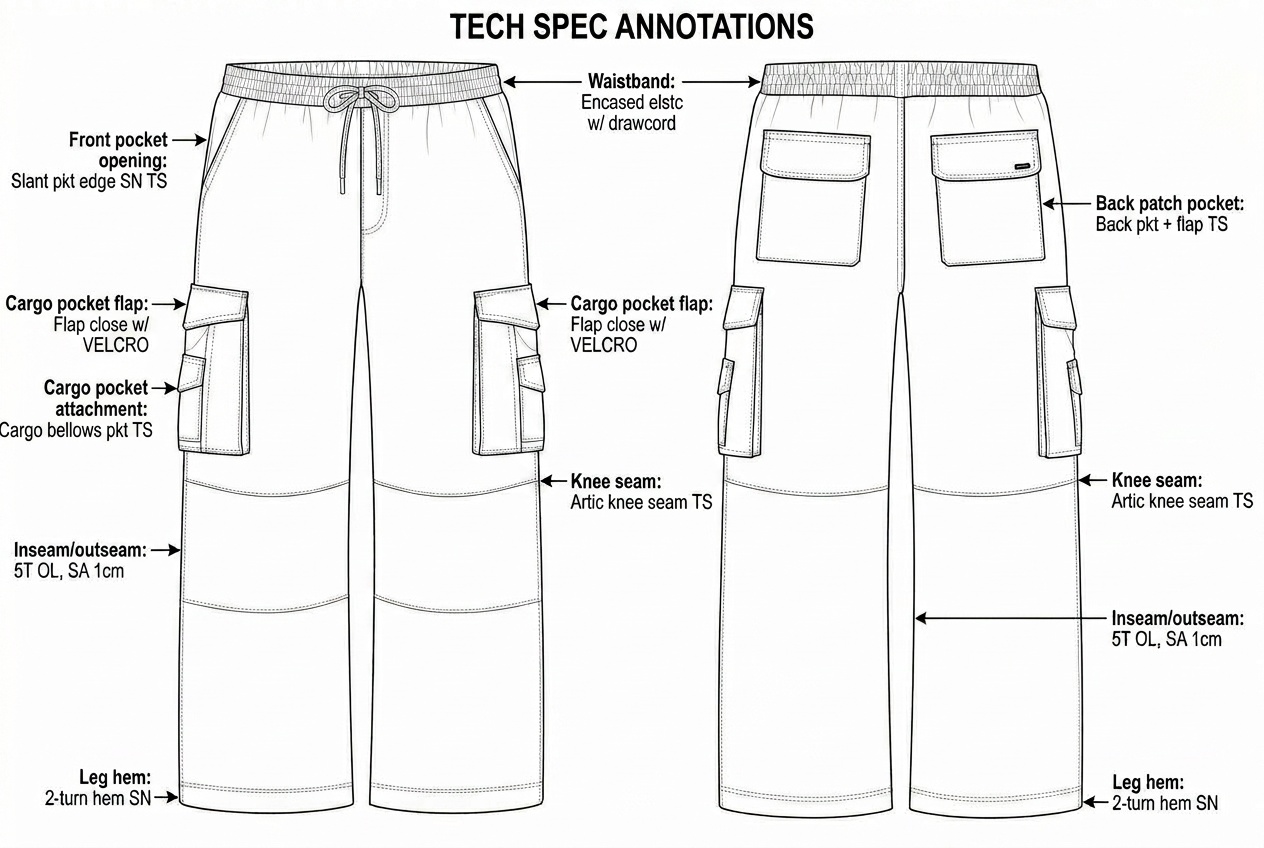

Waistband: Encased elstc w/ drawcord
Front pocket opening: Slant pkt edge SN TS
Cargo pocket attachment: Cargo bellows pkt TS
Cargo pocket flap: Flap close w/ VELCRO
Back patch pocket: Back pkt + flap TS
Knee seam: Artic knee seam TS
Inseam/outseam: 5T OL, SA 1cm
Leg hem: 2-turn hem SN

Materials

12 materials, each with its swatch, composition and placement

Shell fabric

210 GSM woven cotton twill, garment-washed, tonal dark grey PANTONE 432 C, soft handfeel

Main pant body, cargo pockets, back pockets, waistband

Pocketing fabric

110 GSM polyester-cotton plain weave pocketing, dark grey matched to PANTONE 432 C

Front slash pocket bags and internal pocket facings

Waist elastic

38 mm knitted elastic, soft stretch waistband grade, dark grey

Inside encased waistband

Drawcord

Round cotton drawcord, approx. 6 mm diameter, tonal dark grey PANTONE 431 C with heat-sealed tips

Waist channel

Buttonhole reinforcement fusible

Lightweight fusible woven interfacing, 35-45 GSM, charcoal

Center front drawcord eyelet/buttonhole area, pocket flap support

Sewing thread

Core-spun polyester thread Tex 27/30, tonal dark grey PANTONE 431 C

Main assembly and topstitching throughout

Care label

Printed satin care/content label, black text on white ground

Inside back waistband or side seam

Main brand label

Woven brand tab label, black ground PANTONE Black 6 C with white text PANTONE 11-0601 TCX Bright White

Edge of right back flap pocket

Cargo pocket hook-and-loop

20 mm nylon hook-and-loop tape, dyed dark grey

Under cargo pocket flaps and flap back pockets

Pocket flap reinforcement tape

Narrow woven stay tape, 10 mm, charcoal

Pocket flap fold edges and high-stress pocket openings

Polybag

Clear LDPE packing polybag with size sticker and suffocation warning

Final packaging

Hangtag set

Printed paper hangtag with string fastener, brand and barcode information

Attached at waistband

Colourways

Main body fabric, cargo pockets, waistband and pocket flapsDrawcord and topstitch thread tonal dark greyBrand label backgroundBrand label text

Graded size chart and bill of materials

Every row, as generated

Size chart (cm)

26 points of measure · sizes XS, S, M, L, XL · sample size M

Point of measure	XS	S	M	L	XL	Tol.
Waist Width (relaxed, edge to edge)	35	37	39	41	43	+/- 1.0
Waist Width (stretched, edge to edge)	48	50	52	54	56	+/- 1.0
Front Rise incl. waistband	30.1	30.8	31.5	32.2	32.9	+/- 0.7
Back Rise incl. waistband	39.9	40.7	41.5	42.3	43.1	+/- 0.7
Hip Width (20 cm below top waistband)	52	54	56	58	60	+/- 1.0
Thigh Width (2.5 cm below crotch)	33	34	35	36	37	+/- 0.7
Knee Width	27.6	28.3	29	29.7	30.4	+/- 0.7
Leg Opening Width	25	25.5	26	26.5	27	+/- 0.7
Inseam Length	75	76	77	78	79	+/- 1.0
Outseam Length incl. waistband	105	106	107	108	109	+/- 1.0
Crotch Length (front to back through crotch seam)	70.6	71.8	73	74.2	75.4	+/- 1.0
Fly Length	15.5	16	16.5	17	17.5	+/- 0.5
Waistband Height	4.1	4.3	4.5	4.7	4.9	+/- 0.3
Front Pocket Opening Length	15.7	16.1	16.5	16.9	17.3	+/- 0.5
Front Pocket Bag Depth	26.6	27.3	28	28.7	29.4	+/- 0.7
Back Patch Pocket Width	15.5	16	16.5	17	17.5	+/- 0.5
Back Patch Pocket Height	17.5	18	18.5	19	19.5	+/- 0.5
Back Pocket Flap Height	5.1	5.3	5.5	5.7	5.9	+/- 0.3
Side Cargo Pocket Width	17	17.5	18	18.5	19	+/- 0.5
Side Cargo Pocket Height	20.6	21.3	22	22.7	23.4	+/- 0.5
Side Cargo Pocket Flap Height	5.6	5.8	6	6.2	6.4	+/- 0.3
Auxiliary Side Pocket Width	6.9	7.2	7.5	7.8	8.1	+/- 0.3
Auxiliary Side Pocket Height	11.7	12.1	12.5	12.9	13.3	+/- 0.3
Cargo Pocket Placement from Top Waistband to Pocket Top	32.4	33.2	34	34.8	35.6	+/- 0.7
Back Pocket Placement from Top Waistband to Pocket Top	7.9	8.2	8.5	8.8	9.1	+/- 0.5
Bottom Hem Height	3	3	3	3	3	+/- 0.3

Bill of materials

12 lines

#	Item	Specification	Qty
1	Shell fabric	210 GSM woven cotton twill, garment-washed, tonal dark grey PANTONE 432 C, soft handfeel · Main pant body, cargo pockets, back pockets, waistband	1.85 m
2	Pocketing fabric	110 GSM polyester-cotton plain weave pocketing, dark grey matched to PANTONE 432 C · Front slash pocket bags and internal pocket facings	0.35 m
3	Waist elastic	38 mm knitted elastic, soft stretch waistband grade, dark grey · Inside encased waistband	0.9 m
4	Drawcord	Round cotton drawcord, approx. 6 mm diameter, tonal dark grey PANTONE 431 C with heat-sealed tips · Waist channel	1.4 m
5	Buttonhole reinforcement fusible	Lightweight fusible woven interfacing, 35-45 GSM, charcoal · Center front drawcord eyelet/buttonhole area, pocket flap support	0.08 m
6	Sewing thread	Core-spun polyester thread Tex 27/30, tonal dark grey PANTONE 431 C · Main assembly and topstitching throughout	260 m
7	Care label	Printed satin care/content label, black text on white ground · Inside back waistband or side seam	1 pc
8	Main brand label	Woven brand tab label, black ground PANTONE Black 6 C with white text PANTONE 11-0601 TCX Bright White · Edge of right back flap pocket	1 pc
9	Cargo pocket hook-and-loop	20 mm nylon hook-and-loop tape, dyed dark grey · Under cargo pocket flaps and flap back pockets	0.45 m
10	Pocket flap reinforcement tape	Narrow woven stay tape, 10 mm, charcoal · Pocket flap fold edges and high-stress pocket openings	0.5 m
11	Polybag	Clear LDPE packing polybag with size sticker and suffocation warning · Final packaging	1 pc
12	Hangtag set	Printed paper hangtag with string fastener, brand and barcode information · Attached at waistband	1 set

More pages of the tech pack

The other views, exactly as generated

Utility Cargo Pant: Sewing details: every construction callout drawn on the flat — Sewing details: every construction callout drawn on the flat

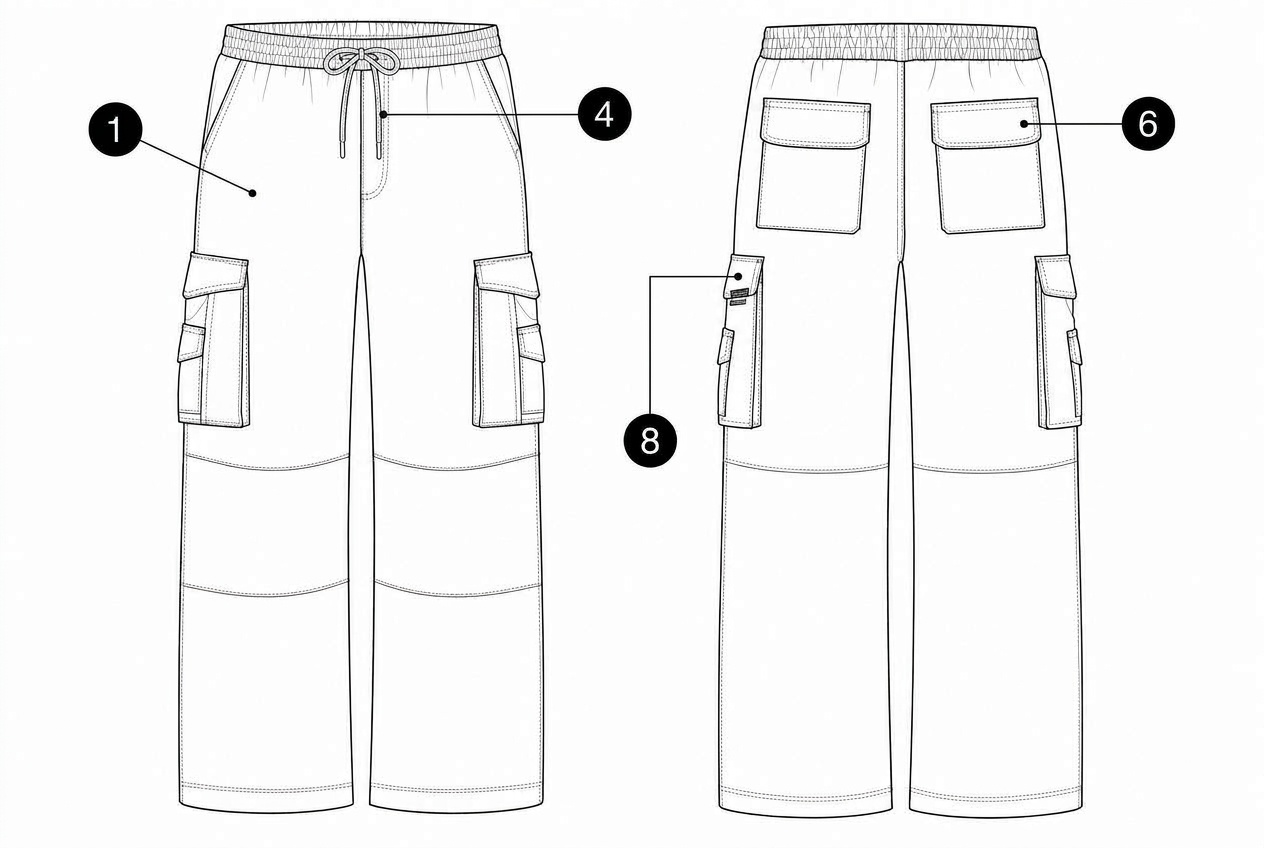

Utility Cargo Pant: Materials callout: each material numbered on the garment — Materials callout: each material numbered on the garment

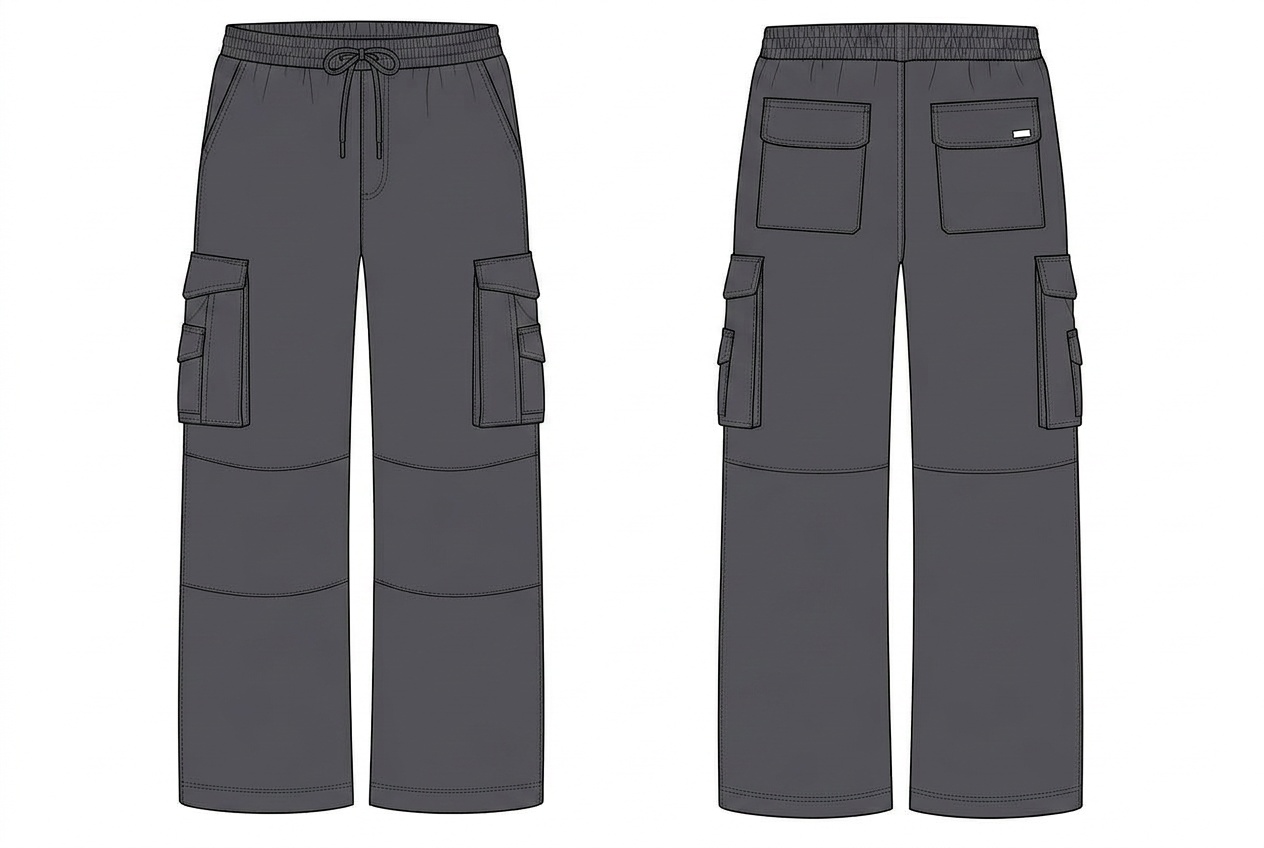

Utility Cargo Pant: Coloured mock-up in the sampled colourway — Coloured mock-up in the sampled colourway

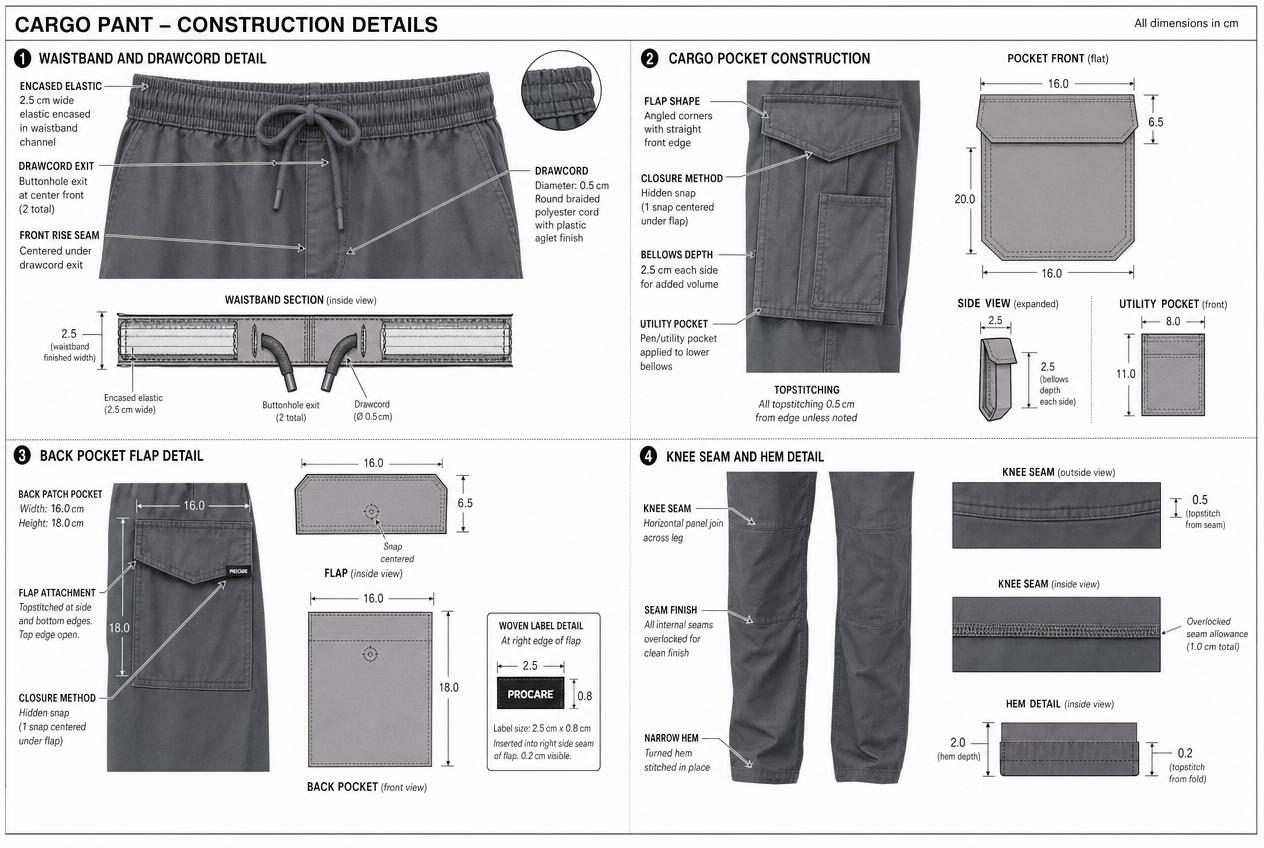

Utility Cargo Pant: Detailed views: closures, seams, trims — Detailed views: closures, seams, trims
