Boxy Tee, drawn up start to finish

19 points of measure graded across 5 sizes, 10 bill-of-materials lines, 10 materials with their swatches, 6 construction callouts, 2 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

Download the PDF Excel template Use it as a template

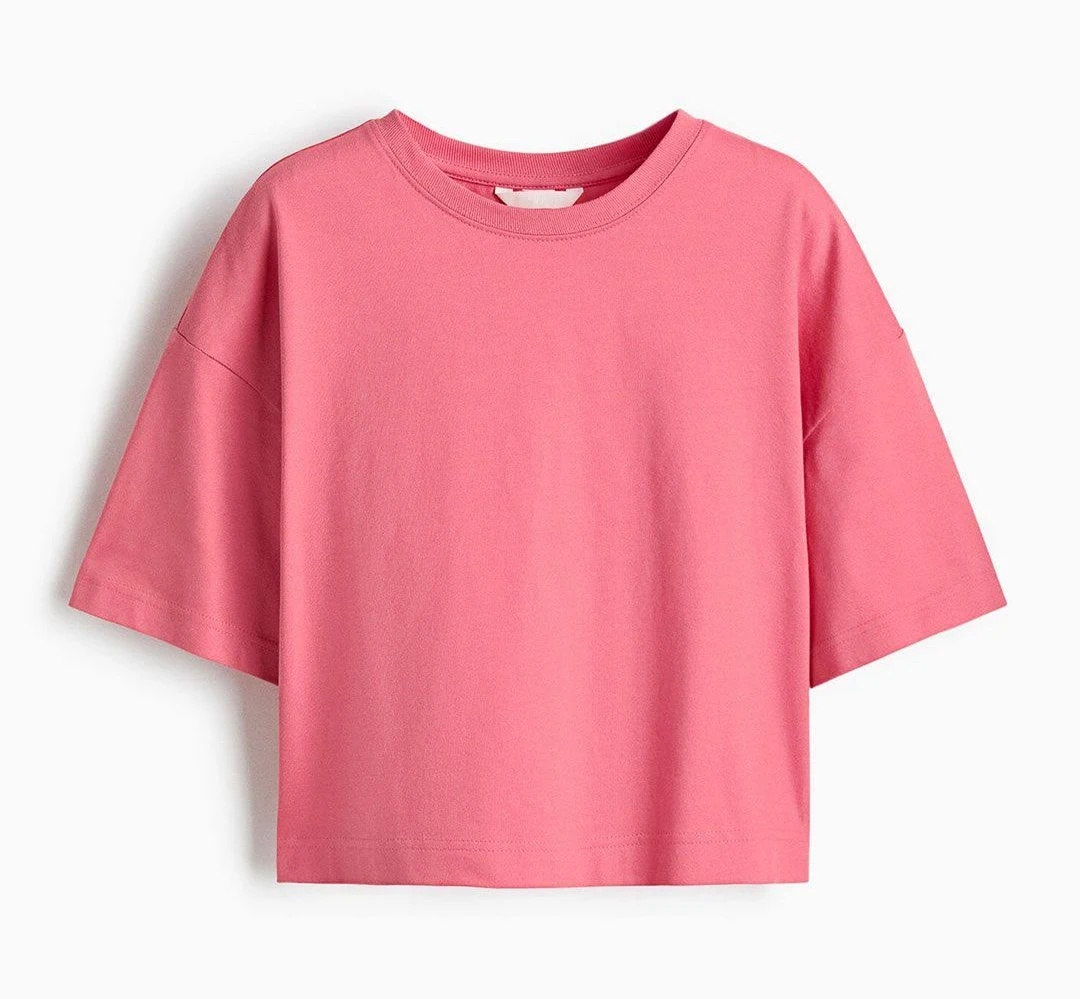

Boxy Tee, the product the tech pack was generated from — SourceOne product photo. Everything else on this page was generated from it.

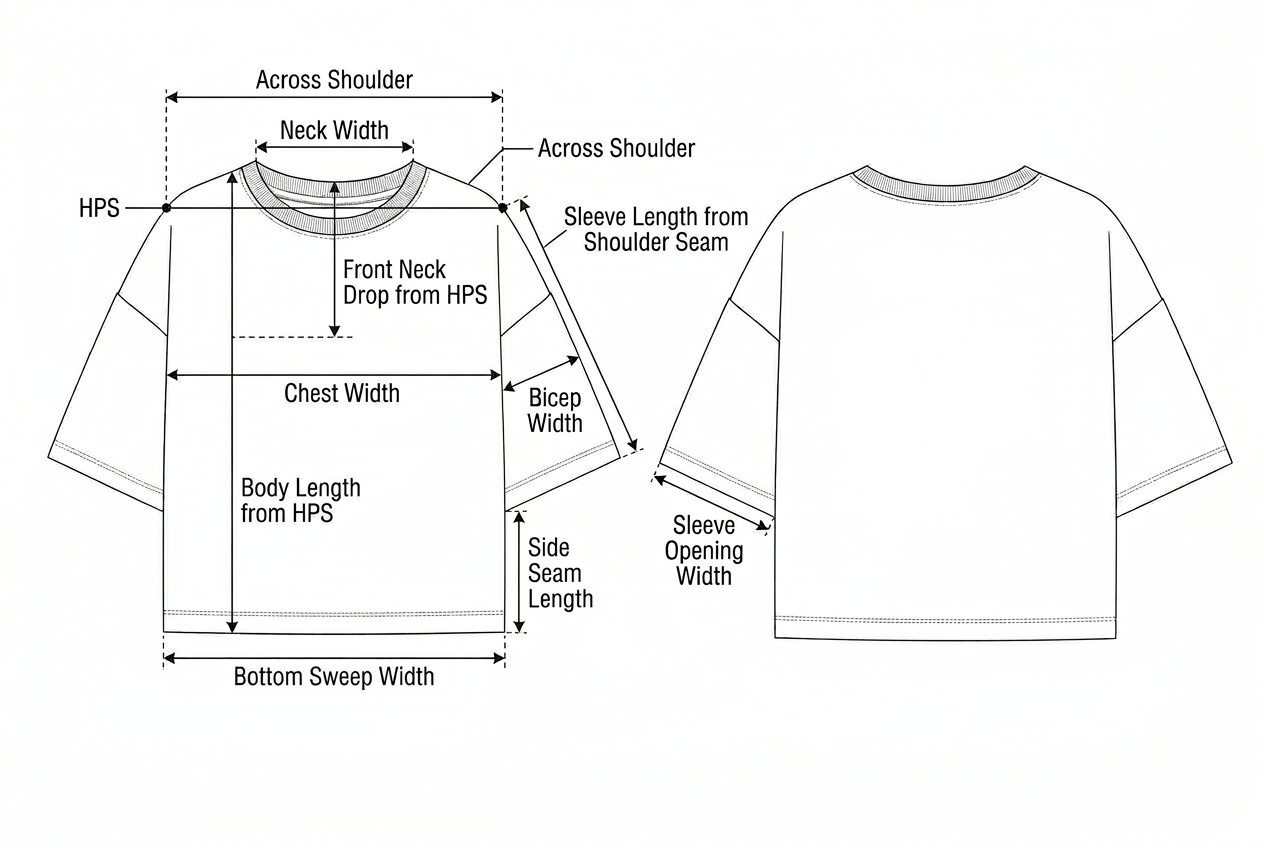

Boxy Tee annotated flat sketch with points of measure — Annotated flat sketch: every point of measure numbered on the drawing, matching the size table below.

Neckline: 1x1 rib neck, OL
Shoulder seam: Shldr OL + tape
Back neck interior: Nk tape clean finish
Sleeve hem: 2N CS hem
Bottom hem: 2N CS bottom hem
Side seam: 4T OL side seam

Materials

10 materials, each with its swatch, composition and placement

Self fabric - body

100% cotton single jersey, approx. 180-200 GSM, piece dyed in Pantone 1775 C, soft handfeel

Front body, back body, sleeves

Neck rib

1x1 cotton rib knit, approx. 240-260 GSM, dyed to match Pantone 1775 C

Crew neckline band

Sewing thread

100% polyester core-spun sewing thread, ticket 120, color matched to Pantone 1775 C

Main assembly and topstitching

Back neck binding tape

Self-fabric or lightweight jersey binding tape, dyed to match Pantone 1775 C

Inside back neck seam

Main label

Brand label, woven damask or printed satin, base color Pantone 11-0601 TCX with tonal or contrasting branding

Inside back neck

Care/content label

Printed satin care label with fiber content, care instructions, and country of origin

Inside left side seam

Size label

Heat transfer or woven size pip

Inside back neck below main label

Shoulder seam stabilizing tape

Lightweight clear elastic or twill seam tape, 6-8 mm width

Shoulder seams

Hangtag

Paper hangtag with string fastener

Retail attachment at neck label

Polybag

Transparent recycled PE polybag with suffocation warning print

Final garment packaging

Colourways

Main body, sleeves, neck rib, and hemsMain label at inside back neck

Graded size chart and bill of materials

Every row, as generated

Size chart (cm)

19 points of measure · sizes XS, S, M, L, XL · sample size M

Point of measure	XS	S	M	L	XL	Tol.
Chest Width (2.5 cm below armhole)	57	59	61	63	65	±1.0
Bottom Sweep Width	57	59	61	63	65	±1.0
Body Length from HPS	67	68.5	70	71.5	73	±1.0
Across Shoulder	54.6	55.8	57	58.2	59.4	±0.7
Sleeve Length from Shoulder Seam	22	23	24	25	26	±0.7
Bicep Width (2.5 cm below armhole)	22.5	23.5	24.5	25.5	26.5	±0.5
Sleeve Opening Width	19.6	20.3	21	21.7	22.4	±0.5
Armhole Straight	25.9	26.7	27.5	28.3	29.1	±0.5
Shoulder Drop	6.4	6.7	7	7.3	7.6	±0.5
Neck Width	17	17.5	18	18.5	19	±0.3
Front Neck Drop from HPS	7.9	8.2	8.5	8.8	9.1	±0.3
Back Neck Drop from HPS	2.6	2.8	3	3.2	3.4	±0.3
Neck Rib Height	2.3	2.4	2.5	2.6	2.7	±0.2
Cross Front	21.9	22.7	23.5	24.3	25.1	±0.5
Cross Back	22.9	23.7	24.5	25.3	26.1	±0.5
Hem Height	3	3	3	3	3	±0.2
Sleeve Hem Height	3	3	3	3	3	±0.2
Side Seam Length (underarm to hem)	39	40	41	42	43	±0.7
Back Length from Center Back Neck Seam	65.5	67	68.5	70	71.5	±1.0

Bill of materials

10 lines

#	Item	Specification	Qty
1	Self fabric - body	100% cotton single jersey, approx. 180-200 GSM, piece dyed in Pantone 1775 C, soft handfeel · Front body, back body, sleeves	0.75 meter
2	Neck rib	1x1 cotton rib knit, approx. 240-260 GSM, dyed to match Pantone 1775 C · Crew neckline band	0.08 meter
3	Sewing thread	100% polyester core-spun sewing thread, ticket 120, color matched to Pantone 1775 C · Main assembly and topstitching	90 meter
4	Back neck binding tape	Self-fabric or lightweight jersey binding tape, dyed to match Pantone 1775 C · Inside back neck seam	0.32 meter
5	Main label	Brand label, woven damask or printed satin, base color Pantone 11-0601 TCX with tonal or contrasting branding · Inside back neck	1 piece
6	Care/content label	Printed satin care label with fiber content, care instructions, and country of origin · Inside left side seam	1 piece
7	Size label	Heat transfer or woven size pip · Inside back neck below main label	1 piece
8	Shoulder seam stabilizing tape	Lightweight clear elastic or twill seam tape, 6-8 mm width · Shoulder seams	0.28 meter
9	Hangtag	Paper hangtag with string fastener · Retail attachment at neck label	1 set
10	Polybag	Transparent recycled PE polybag with suffocation warning print · Final garment packaging	1 piece

More pages of the tech pack

The other views, exactly as generated

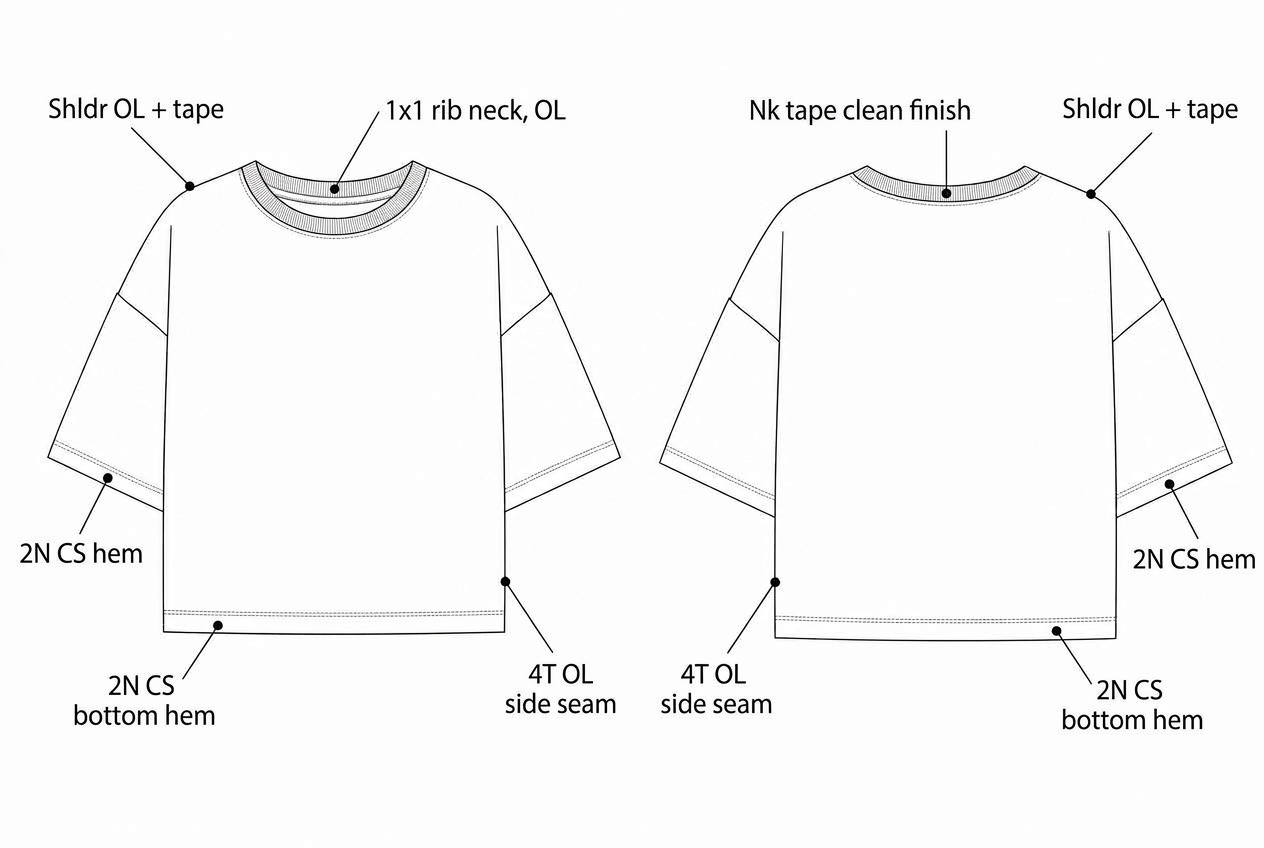

Boxy Tee: Sewing details: every construction callout drawn on the flat — Sewing details: every construction callout drawn on the flat

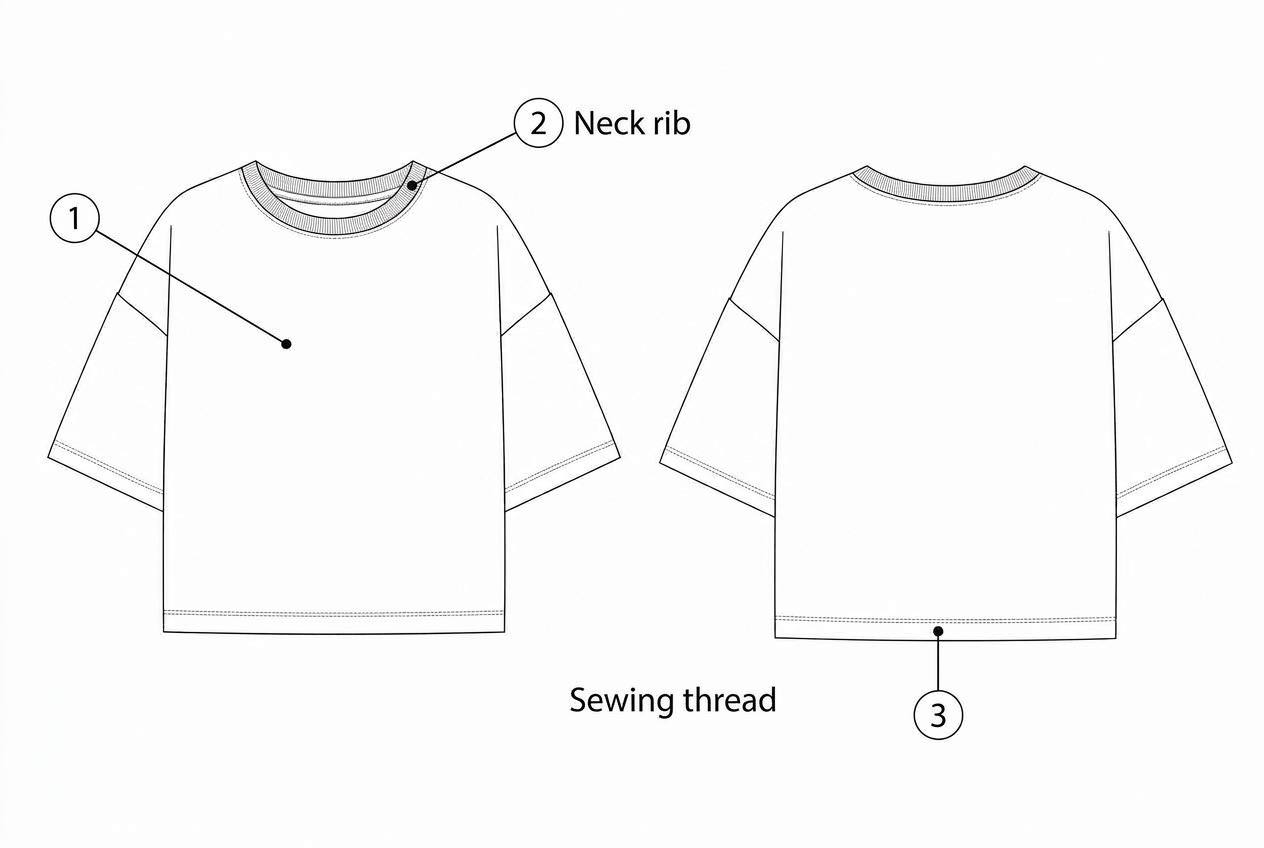

Boxy Tee: Materials callout: each material numbered on the garment — Materials callout: each material numbered on the garment

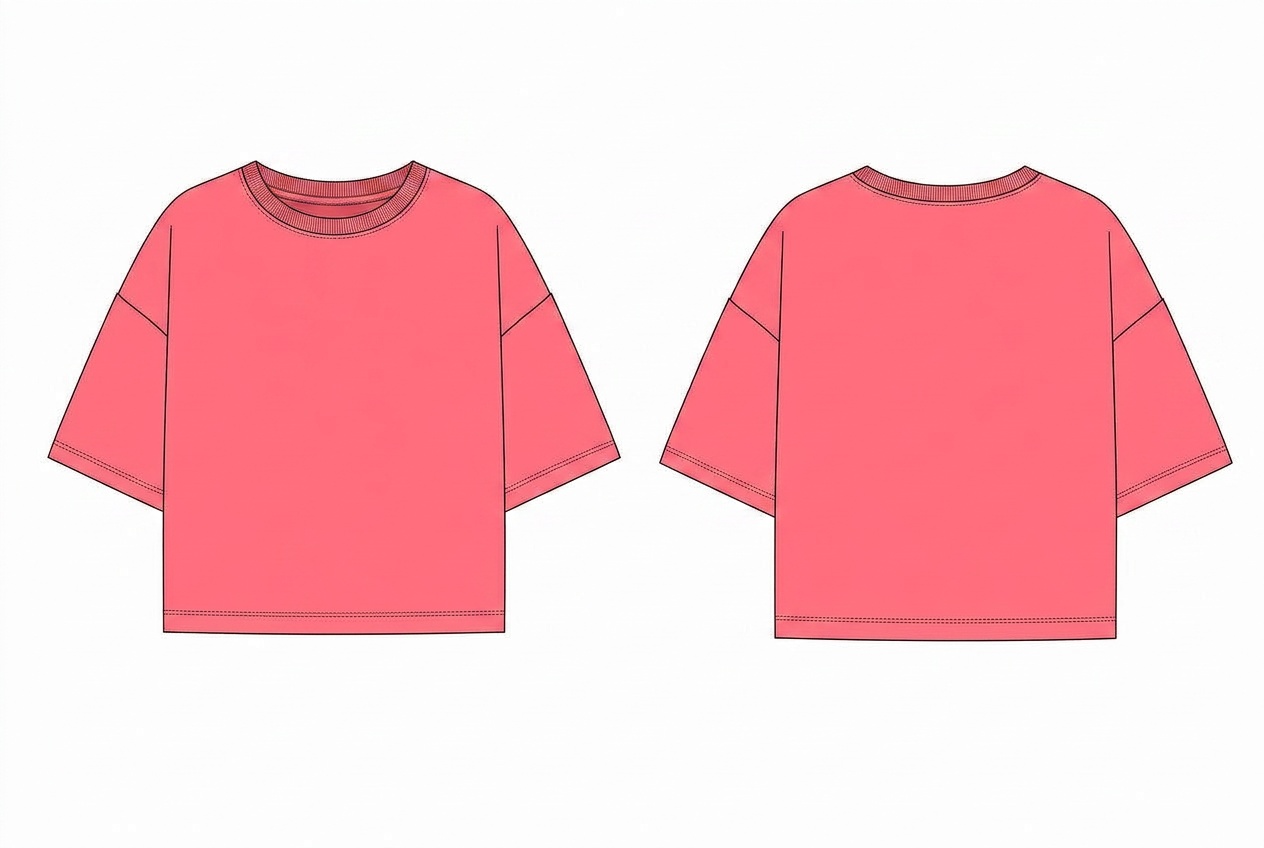

Boxy Tee: Coloured mock-up in the sampled colourway — Coloured mock-up in the sampled colourway

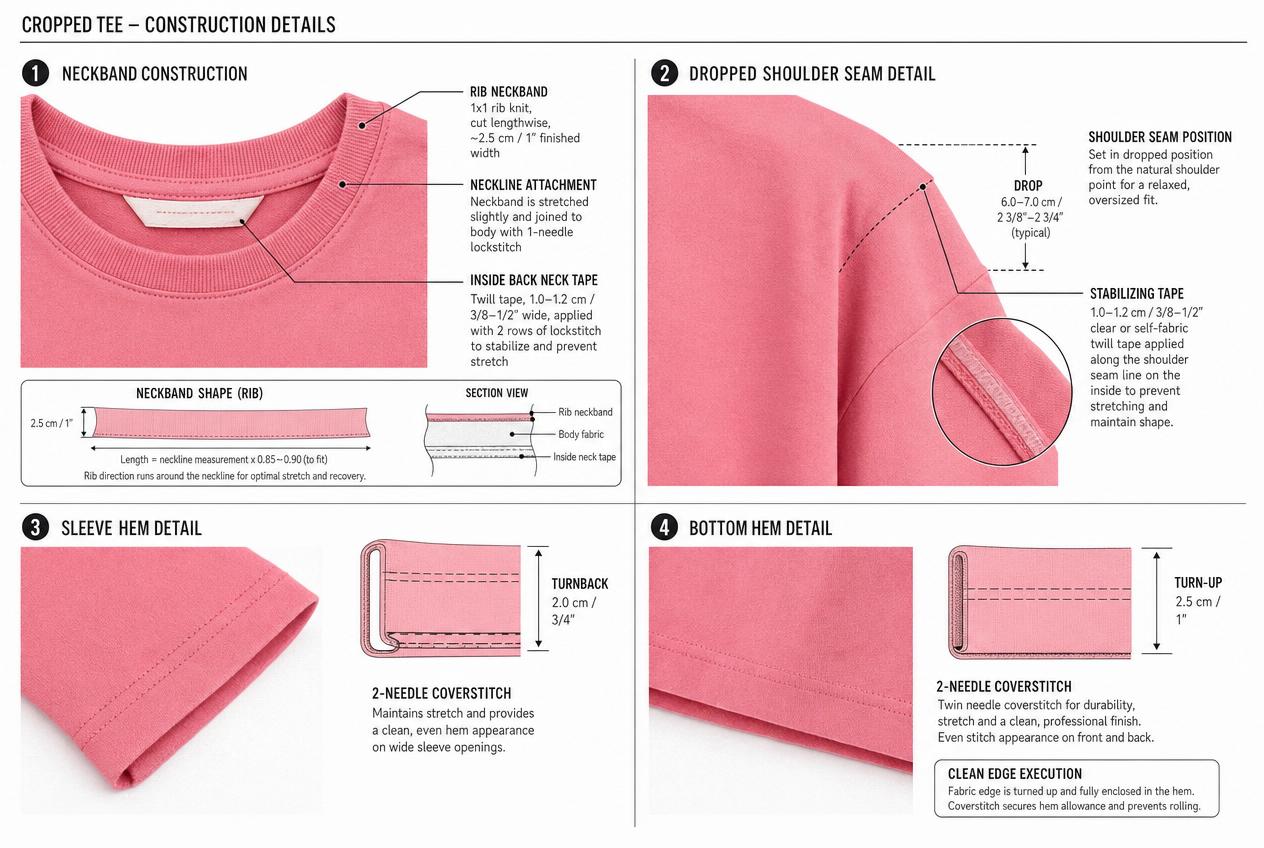

Boxy Tee: Detailed views: closures, seams, trims — Detailed views: closures, seams, trims
