Denim shell fabric
10.5-11.5 oz indigo dyed woven cotton denim, right-hand twill, dark rinse appearance, used for skirt body panels
Whole outer shell
Home › Tech pack examples › A-Line Mini Skirt
Sample tech pack · A-line mini skirt
A-Line Mini Skirt, drawn up start to finish

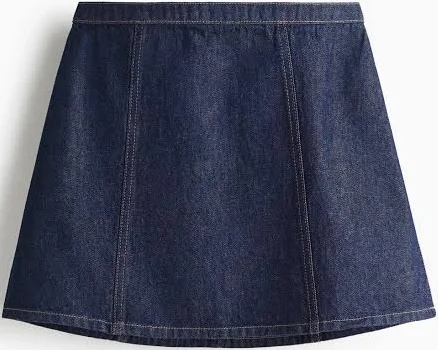

20 points of measure graded across 6 sizes, 12 bill-of-materials lines, 12 materials with their swatches, 6 construction callouts, 3 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

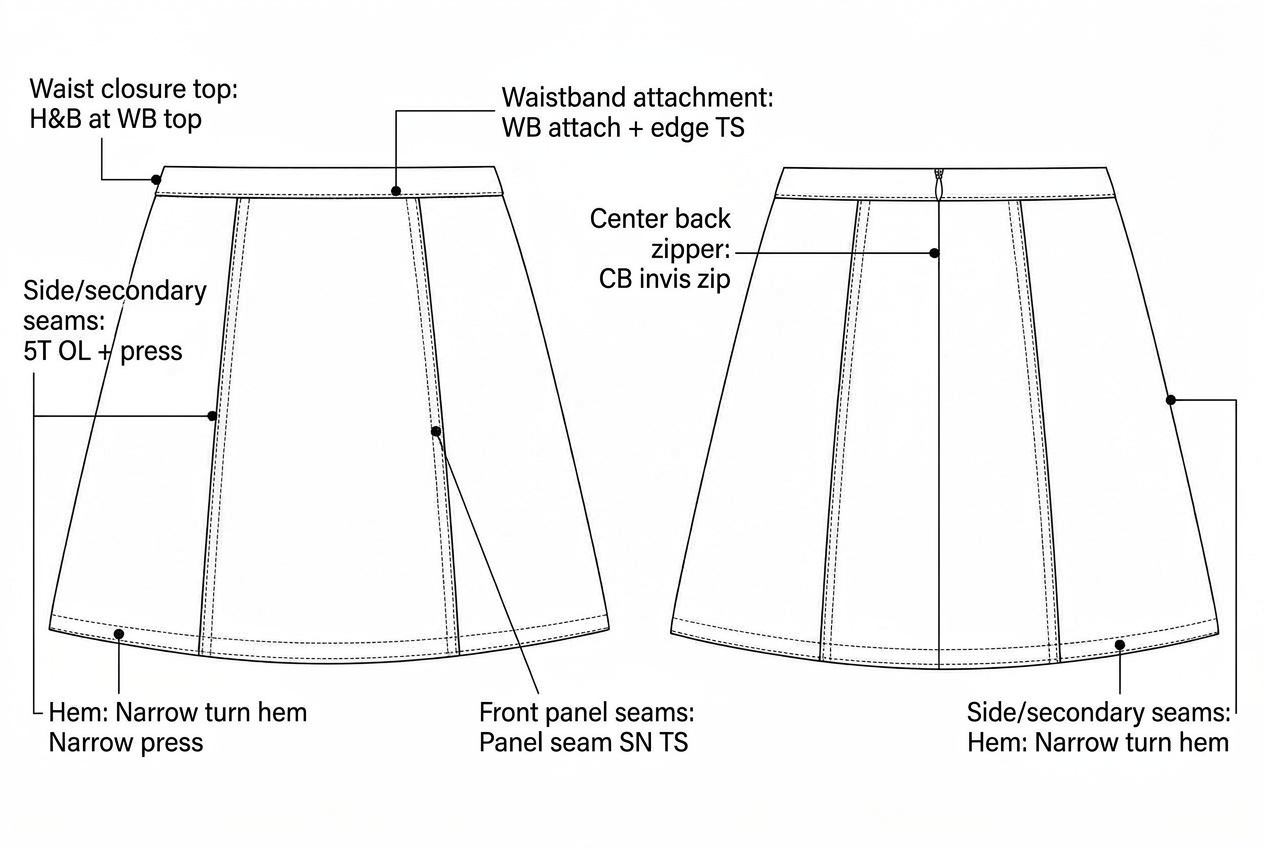

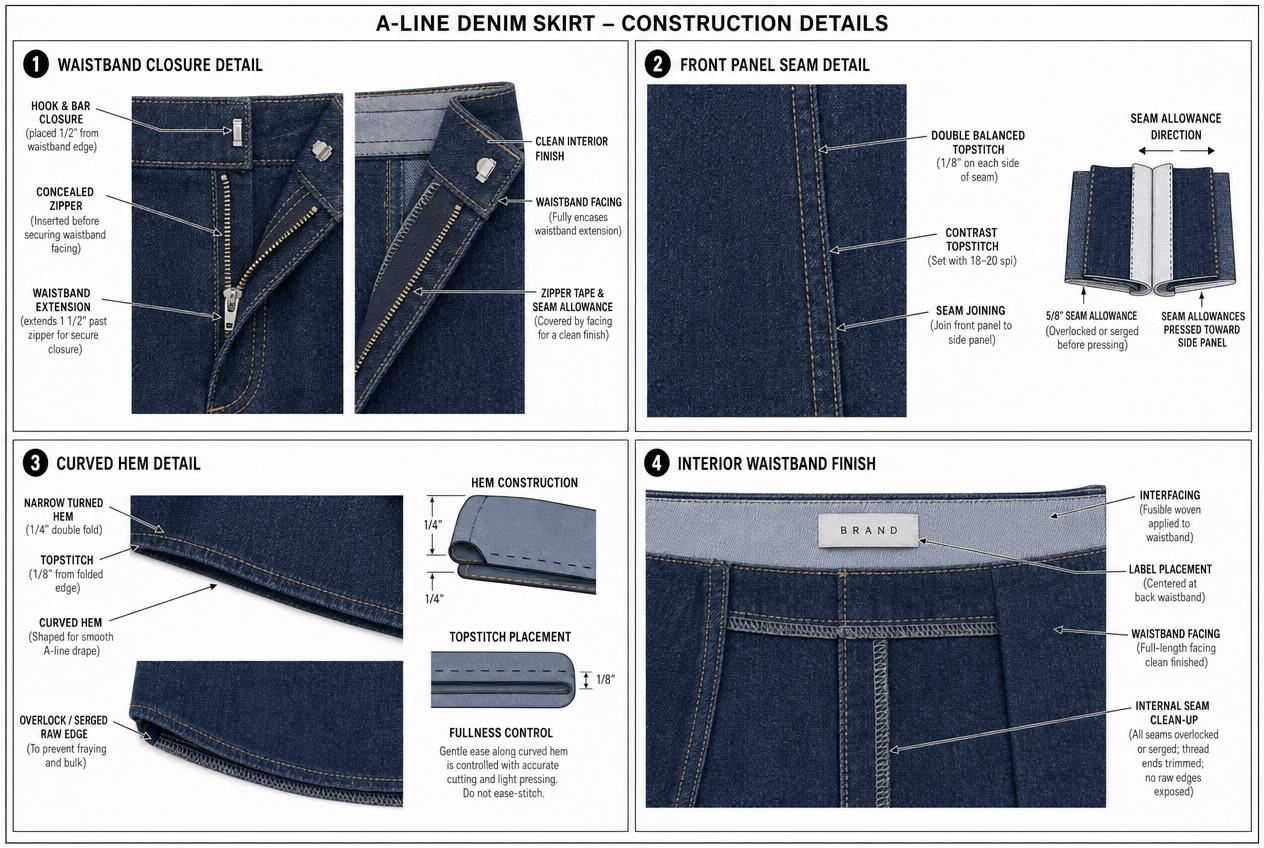

- Waistband attachment: WB attach + edge TS
- Front panel seams: Panel seam SN TS
- Center back zipper: CB invis zip
- Hem: Narrow turn hem
- Side/secondary seams: 5T OL + press
- Waist closure top: H&B at WB top
Materials
12 materials, each with its swatch, composition and placement
Waistband self fabric
Self denim cut on straight grain for structured waistband, fused for stability
Waistband
Waistband fusible interfacing
Lightweight woven fusible interfacing, 35-45 gsm, natural color, for waistband support
Inside waistband
Pocketing/facing fabric
Lightweight cotton twill or plain weave pocketing, undyed natural color
Interior pockets or waist facing
Sewing thread - construction
Core spun polyester thread, navy tone matched to denim body, ticket 80/2
Internal seams and lockstitch assembly
Topstitch thread
Core spun polyester topstitch thread in contrast tobacco tone, medium sheen
Panel seams, waistband edge, hem topstitch
Center back zipper
Nylon coil zipper, concealed application, color matched navy, 18 cm length
Center back opening
Waist hook and bar
Metal hook and bar closure, dyed or coated navy compatible finish
Top of center back waistband
Size/care label set
Printed satin care label plus size label, black print on white ground
Interior waistband or side seam
Brand label
Woven brand label, navy and white, folded end application
Interior waistband center back
Hem stabilizing tape
Lightweight fusible or non-fusible edge tape for curved hem control
Hem allowance
Polybag packaging
Clear recyclable polybag with size sticker and suffocation warning print
Final packaging

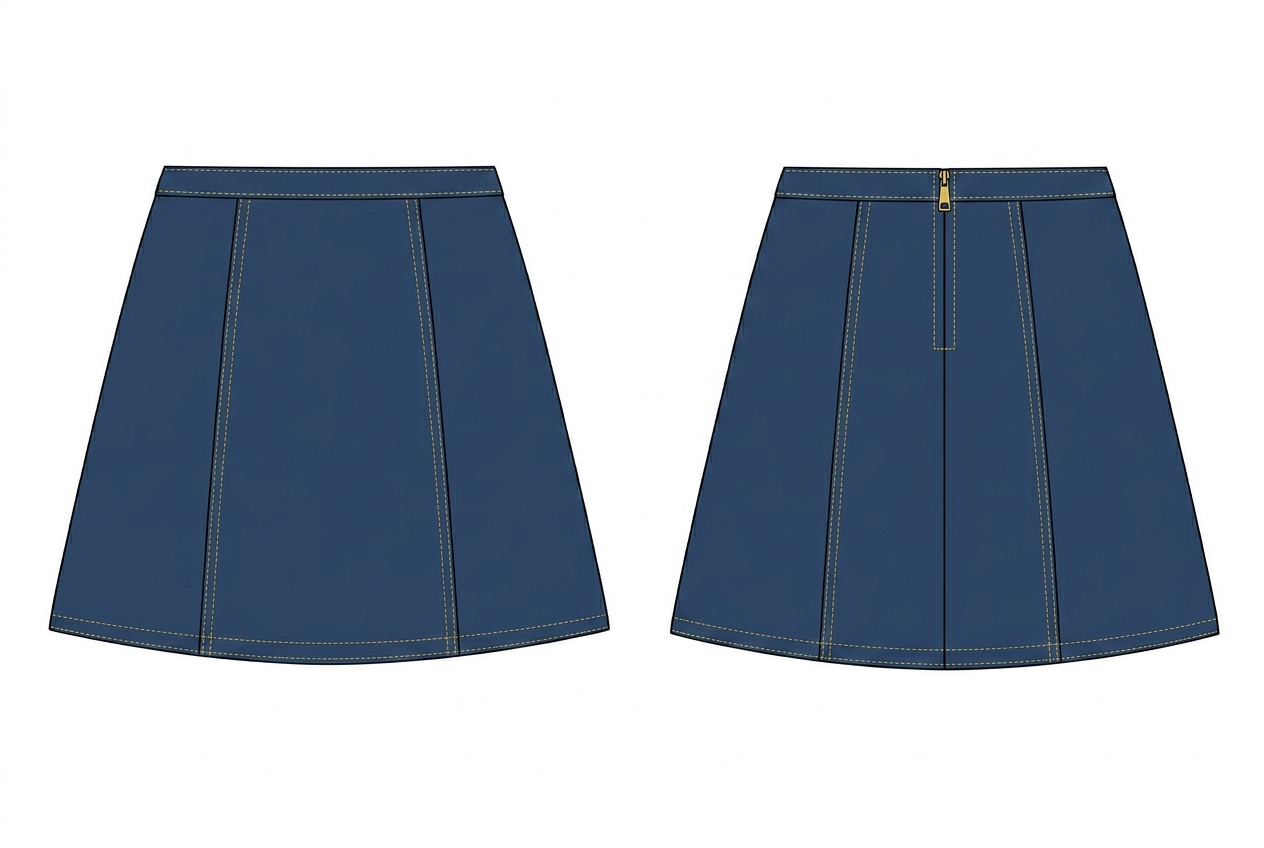

Colourways
Main body denim shellContrast topstitch threadInterior pocketing/waist facing
Graded size chart and bill of materials
Every row, as generated
Size chart (cm)

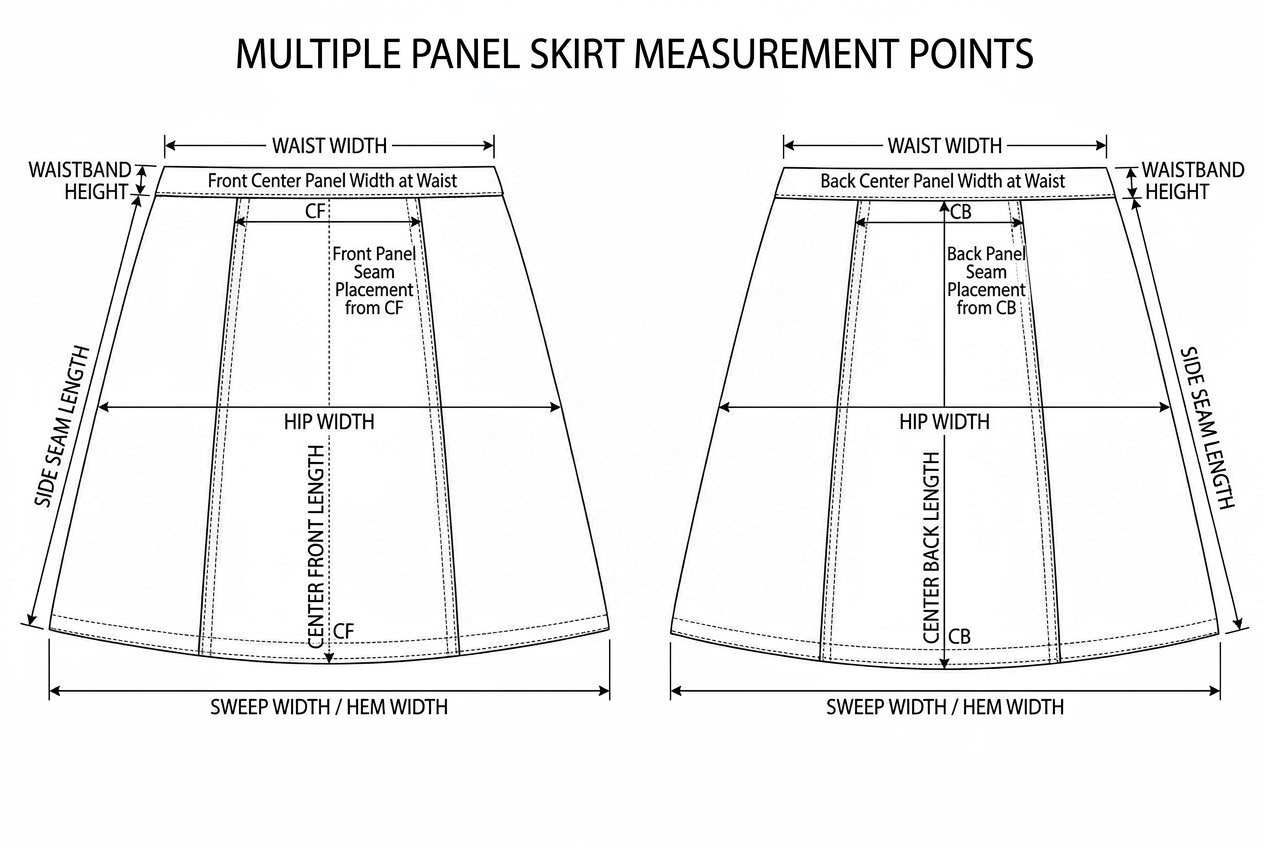

20 points of measure · sizes 2, 4, 6, 8, 10, 12 · sample size 6
| Point of measure | 2 | 4 | 6 | 8 | 10 | 12 | Tol. |
|---|---|---|---|---|---|---|---|
| Waist Width (flat, edge to edge at top of waistband) | 34 | 35 | 36 | 37 | 38 | 39 | +/- 0.5 |
| Top Edge Width (skirt body seam, below waistband) | 35 | 36 | 37 | 38 | 39 | 40 | +/- 0.5 |
| High Hip Width (10 cm below top of waistband) | 43.5 | 44.5 | 45.5 | 46.5 | 47.5 | 48.5 | +/- 0.7 |
| Hip Width (18 cm below top of waistband) | 47 | 48 | 49 | 50 | 51 | 52 | +/- 0.7 |
| Sweep Width / Hem Width (flat, edge to edge) | 54.5 | 55.8 | 57 | 58.3 | 59.5 | 60.8 | +/- 1 |
| Center Front Length (from top of waistband to hem) | 40.4 | 40.7 | 41 | 41.3 | 41.6 | 41.9 | +/- 0.5 |
| Center Back Length (from top of waistband to hem) | 40.9 | 41.2 | 41.5 | 41.8 | 42.1 | 42.4 | +/- 0.5 |
| Side Seam Length (from top of waistband to hem) | 41.4 | 41.7 | 42 | 42.3 | 42.6 | 42.9 | +/- 0.5 |
| Waistband Height (finished) | 4 | 4 | 4 | 4 | 4 | 4 | +/- 0.2 |
| Hem Turnback Height | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | +/- 0.3 |
| Front Panel Seam Placement from CF to Panel Seam at Waist | 10.5 | 10.8 | 11 | 11.3 | 11.5 | 11.8 | +/- 0.3 |
| Front Panel Seam Placement from CF to Panel Seam at Hem | 12.8 | 13.2 | 13.5 | 13.8 | 14.2 | 14.5 | +/- 0.5 |
| Back Panel Seam Placement from CB to Panel Seam at Waist | 10.5 | 10.8 | 11 | 11.3 | 11.5 | 11.8 | +/- 0.3 |
| Back Panel Seam Placement from CB to Panel Seam at Hem | 12.8 | 13.2 | 13.5 | 13.8 | 14.2 | 14.5 | +/- 0.5 |
| Front Panel Seam Length (waist seam to hem) | 36.9 | 37.2 | 37.5 | 37.8 | 38.1 | 38.4 | +/- 0.5 |
| Back Panel Seam Length (waist seam to hem) | 37.4 | 37.7 | 38 | 38.3 | 38.6 | 38.9 | +/- 0.5 |
| Front Center Panel Width at Waist | 21 | 21.5 | 22 | 22.5 | 23 | 23.5 | +/- 0.3 |
| Front Center Panel Width at Hem | 25.6 | 26.3 | 27 | 27.7 | 28.4 | 29.1 | +/- 0.5 |
| Back Center Panel Width at Waist | 21 | 21.5 | 22 | 22.5 | 23 | 23.5 | +/- 0.3 |
| Back Center Panel Width at Hem | 25.6 | 26.3 | 27 | 27.7 | 28.4 | 29.1 | +/- 0.5 |
Bill of materials
12 lines
| # | Item | Specification | Qty |
|---|---|---|---|
| 1 | Denim shell fabric | 10.5-11.5 oz indigo dyed woven cotton denim, right-hand twill, dark rinse appearance, used for skirt body panels · Whole outer shell | 0.75 yd |
| 2 | Waistband self fabric | Self denim cut on straight grain for structured waistband, fused for stability · Waistband | 0.12 yd |
| 3 | Waistband fusible interfacing | Lightweight woven fusible interfacing, 35-45 gsm, natural color, for waistband support · Inside waistband | 0.12 yd |
| 4 | Pocketing/facing fabric | Lightweight cotton twill or plain weave pocketing, undyed natural color · Interior pockets or waist facing | 0.2 yd |
| 5 | Sewing thread - construction | Core spun polyester thread, navy tone matched to denim body, ticket 80/2 · Internal seams and lockstitch assembly | 45 m |
| 6 | Topstitch thread | Core spun polyester topstitch thread in contrast tobacco tone, medium sheen · Panel seams, waistband edge, hem topstitch | 28 m |
| 7 | Center back zipper | Nylon coil zipper, concealed application, color matched navy, 18 cm length · Center back opening | 1 pc |
| 8 | Waist hook and bar | Metal hook and bar closure, dyed or coated navy compatible finish · Top of center back waistband | 1 set |
| 9 | Size/care label set | Printed satin care label plus size label, black print on white ground · Interior waistband or side seam | 1 set |
| 10 | Brand label | Woven brand label, navy and white, folded end application · Interior waistband center back | 1 pc |
| 11 | Hem stabilizing tape | Lightweight fusible or non-fusible edge tape for curved hem control · Hem allowance | 0.75 m |
| 12 | Polybag packaging | Clear recyclable polybag with size sticker and suffocation warning print · Final packaging | 1 pc |
More pages of the tech pack
The other views, exactly as generated
What the tech pack contains
13 sections in this document
- ✓Flat Sketchincluded
- ✓Sewing Detailsincluded
- ✓Materialsincluded
- ✓Size Tableincluded
- ✓Bill of Materialsincluded
- ✓Product Infoincluded
- ✓Materials Calloutincluded
- ✓Colored Mockupsincluded
- ✓Pantone Colorsincluded
- ✓Detailed Drawingsincluded
- ·Artworknot in this sample
- ✓Construction Guideincluded
- ·Fit Lognot in this sample
- ✓PDF exportincluded
- ✓Excel exportincluded
- ·Editable SVG sketchnot in this sample
