Main shell fabric
180 GSM 100% cotton single jersey knit, piece-dyed, soft handfeel, color PANTONE 19-3921 TCX / #1E2432
Front body, back body, sleeves
Home › Tech pack examples › Classic Crewneck T-Shirt
Sample tech pack · Short sleeve crew neck T-shirt
Classic Crewneck T-Shirt, drawn up start to finish
18 points of measure graded across 5 sizes, 10 bill-of-materials lines, 10 materials with their swatches, 7 construction callouts, 1 colourway. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

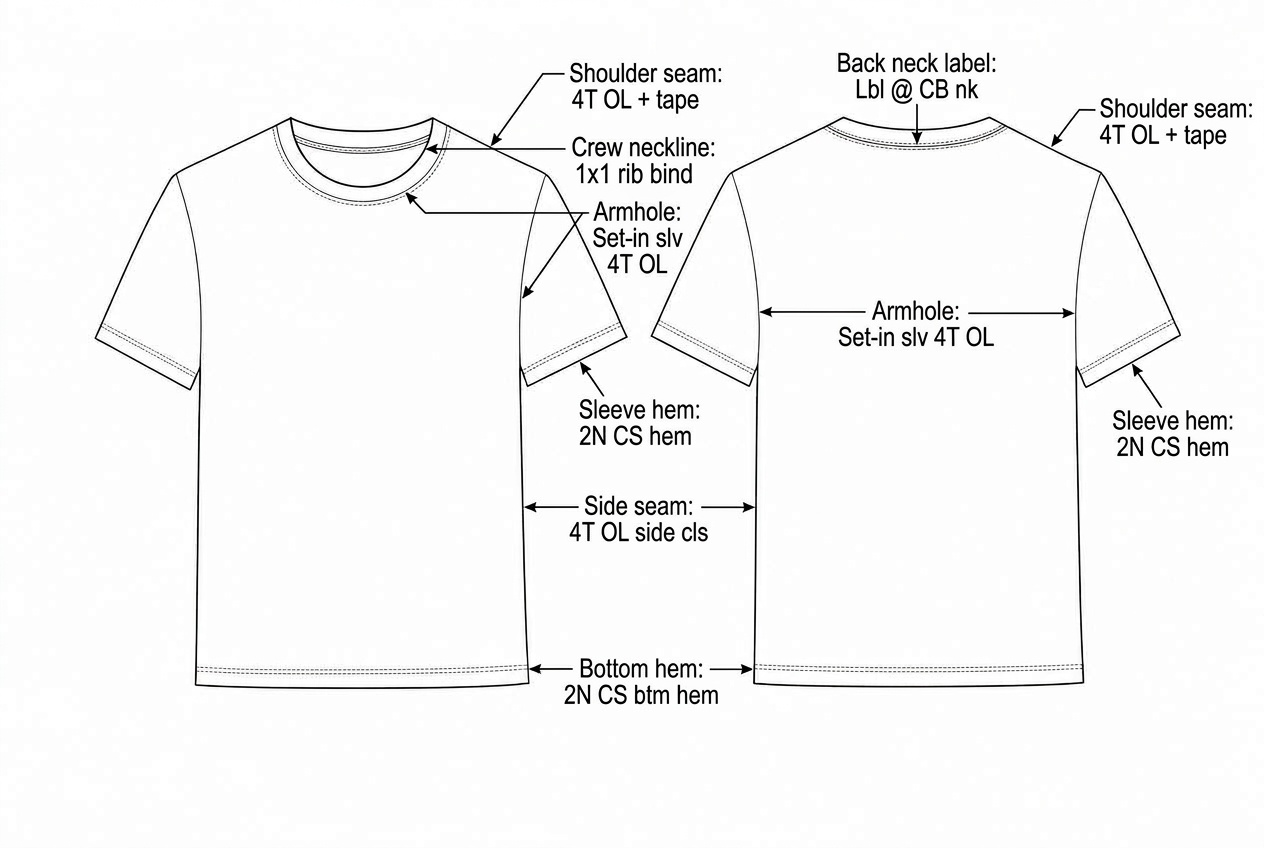

- Crew neckline: 1x1 rib bind
- Shoulder seam: 4T OL + tape
- Armhole: Set-in slv 4T OL
- Side seam: 4T OL side cls
- Sleeve hem: 2N CS hem
- Bottom hem: 2N CS btm hem
- Back neck label: Lbl @ CB nk
Materials
10 materials, each with its swatch, composition and placement
Neck rib
220 GSM 1x1 cotton rib knit, color matched to PANTONE 19-3921 TCX / #1E2432
Crew neckline band
Shoulder seam tape
Lightweight woven cotton twill or jersey binding tape, color matched dark navy
Inside shoulder seams, shoulder to shoulder stabilization
Main sewing thread
100% polyester core-spun sewing thread, ticket 120, color matched to PANTONE 19-3921 TCX / #1E2432
All major seams and topstitching
Coverstitch thread
Textured polyester thread, color matched to PANTONE 19-3921 TCX / #1E2432
Sleeve hems and bottom hem
Back neck label
Brand label, woven damask or printed satin, size approx. 55 x 20 mm
Inside back neck
Care and content label
Printed satin care label with fiber content and wash instructions, size approx. 65 x 35 mm folded
Inside left side seam
Size label
Printed or woven size pip, color matched brand standard
Inside back neck below brand label
Hangtag
Paper hangtag with string fastener
Retail attachment at neck label
Polybag
Clear recycled PE polybag with suffocation warning print
Final packing

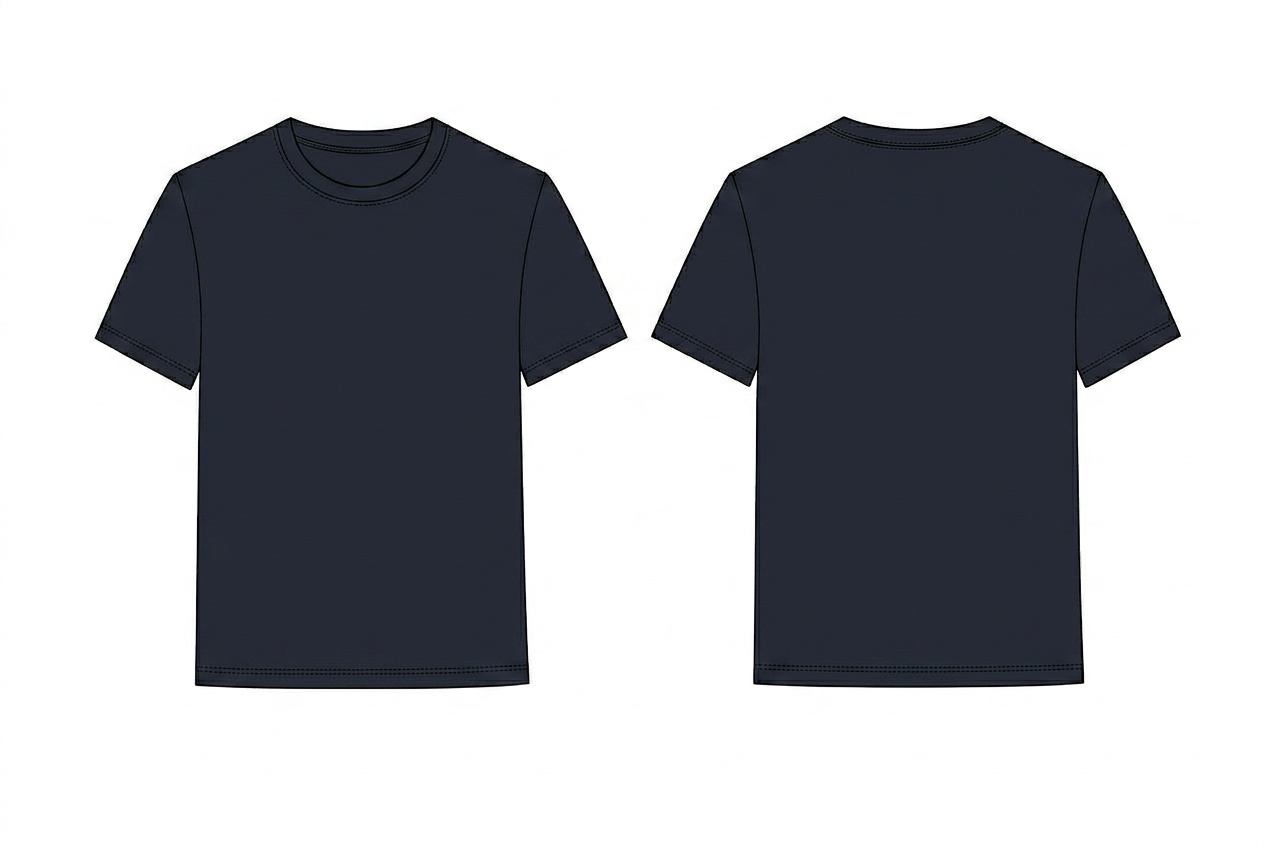

Colourways
Main body, sleeves, neckband
Graded size chart and bill of materials
Every row, as generated

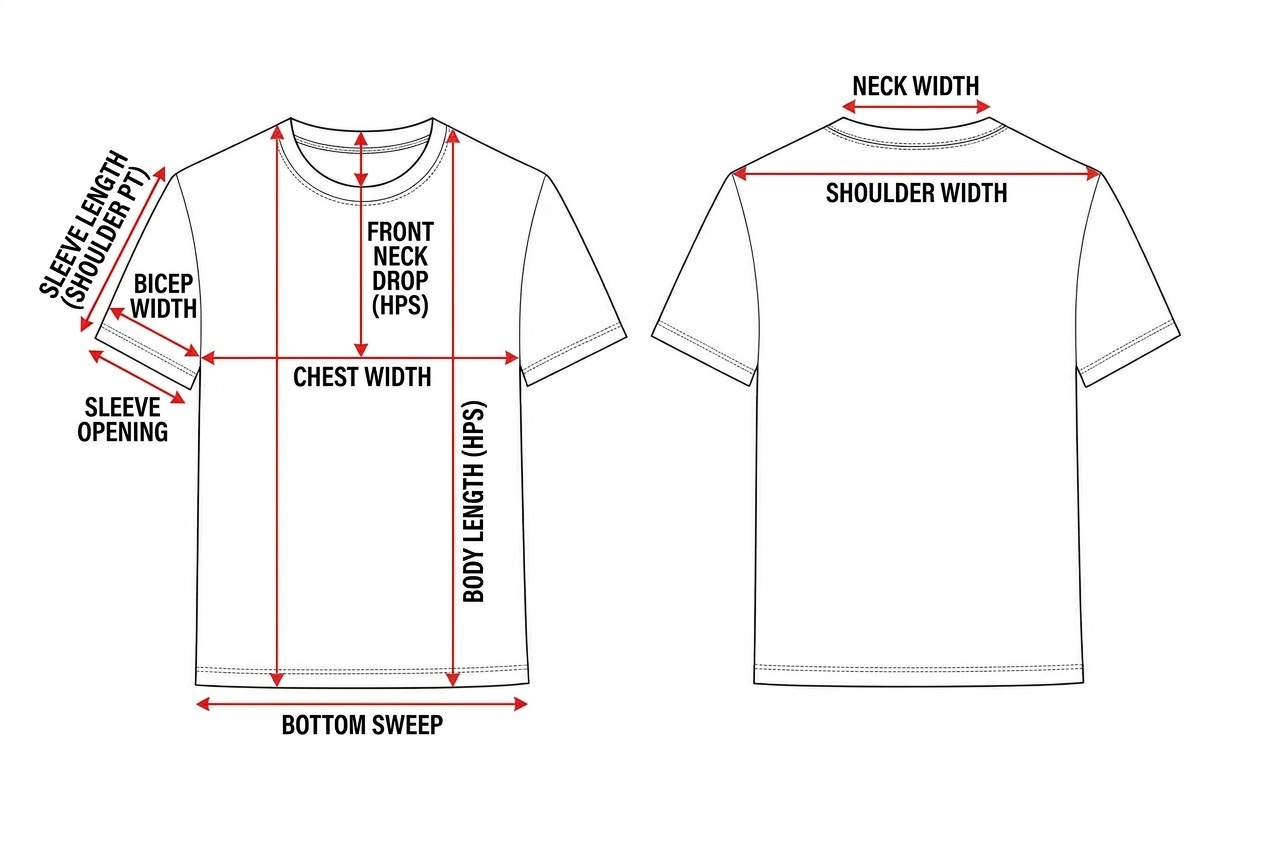

Size chart (cm)
18 points of measure · sizes XS, S, M, L, XL · sample size M
| Point of measure | XS | S | M | L | XL | Tol. |
|---|---|---|---|---|---|---|
| Body Length from HPS | 69 | 70.5 | 72 | 73.5 | 75 | ±1.0 |
| Chest Width (2.5 cm below armhole) | 49 | 51 | 53 | 55 | 57 | ±1.0 |
| Waist Width | 49 | 51 | 53 | 55 | 57 | ±1.0 |
| Bottom Sweep Width | 49 | 51 | 53 | 55 | 57 | ±1.0 |
| Shoulder Width (shoulder point to shoulder point) | 44 | 45 | 46 | 47 | 48 | ±0.7 |
| Across Chest (2.5 cm below armhole, front) | 36 | 37 | 38 | 39 | 40 | ±0.7 |
| Across Back (2.5 cm below armhole, back) | 38 | 39 | 40 | 41 | 42 | ±0.7 |
| Armhole Straight | 23.6 | 24.3 | 25 | 25.7 | 26.4 | ±0.5 |
| Sleeve Length from Shoulder Point | 20.4 | 21.2 | 22 | 22.8 | 23.6 | ±0.7 |
| Bicep Width (2.5 cm below armhole) | 19.5 | 20.5 | 21.5 | 22.5 | 23.5 | ±0.5 |
| Sleeve Opening Width | 16.6 | 17.3 | 18 | 18.7 | 19.4 | ±0.5 |
| Side Seam Length (underarm to bottom) | 45 | 46 | 47 | 48 | 49 | ±0.7 |
| Neck Width (seam to seam) | 16.5 | 17 | 17.5 | 18 | 18.5 | ±0.3 |
| Front Neck Drop from HPS | 7.9 | 8.2 | 8.5 | 8.8 | 9.1 | ±0.3 |
| Back Neck Drop from HPS | 2.1 | 2.3 | 2.5 | 2.7 | 2.9 | ±0.3 |
| Neck Rib Height | 1.8 | 2 | 2.2 | 2.4 | 2.6 | ±0.2 |
| Bottom Hem Height | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ±0.2 |
| Sleeve Hem Height | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ±0.2 |
Bill of materials
10 lines
| # | Item | Specification | Qty |
|---|---|---|---|
| 1 | Main shell fabric | 180 GSM 100% cotton single jersey knit, piece-dyed, soft handfeel, color PANTONE 19-3921 TCX / #1E2432 · Front body, back body, sleeves | 0.95 m |
| 2 | Neck rib | 220 GSM 1x1 cotton rib knit, color matched to PANTONE 19-3921 TCX / #1E2432 · Crew neckline band | 0.08 m |
| 3 | Shoulder seam tape | Lightweight woven cotton twill or jersey binding tape, color matched dark navy · Inside shoulder seams, shoulder to shoulder stabilization | 0.35 m |
| 4 | Main sewing thread | 100% polyester core-spun sewing thread, ticket 120, color matched to PANTONE 19-3921 TCX / #1E2432 · All major seams and topstitching | 90 m |
| 5 | Coverstitch thread | Textured polyester thread, color matched to PANTONE 19-3921 TCX / #1E2432 · Sleeve hems and bottom hem | 35 m |
| 6 | Back neck label | Brand label, woven damask or printed satin, size approx. 55 x 20 mm · Inside back neck | 1 pc |
| 7 | Care and content label | Printed satin care label with fiber content and wash instructions, size approx. 65 x 35 mm folded · Inside left side seam | 1 pc |
| 8 | Size label | Printed or woven size pip, color matched brand standard · Inside back neck below brand label | 1 pc |
| 9 | Hangtag | Paper hangtag with string fastener · Retail attachment at neck label | 1 pc |
| 10 | Polybag | Clear recycled PE polybag with suffocation warning print · Final packing | 1 pc |
More pages of the tech pack
The other views, exactly as generated
What the tech pack contains
13 sections in this document
- ✓Flat Sketchincluded
- ✓Sewing Detailsincluded
- ✓Materialsincluded
- ✓Size Tableincluded
- ✓Bill of Materialsincluded
- ✓Product Infoincluded
- ✓Materials Calloutincluded
- ✓Colored Mockupsincluded
- ✓Pantone Colorsincluded
- ✓Detailed Drawingsincluded
- ·Artworknot in this sample
- ✓Construction Guideincluded
- ·Fit Lognot in this sample
- ✓PDF exportincluded
- ✓Excel exportincluded
- ·Editable SVG sketchnot in this sample
