Sample tech pack · Intarsia short-sleeve pullover sweater

Intarsia Crewneck Sweater, drawn up start to finish

24 points of measure graded across 5 sizes, 11 bill-of-materials lines, 11 materials with their swatches, 7 construction callouts, 12 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

Download the PDF Excel template Use it as a template

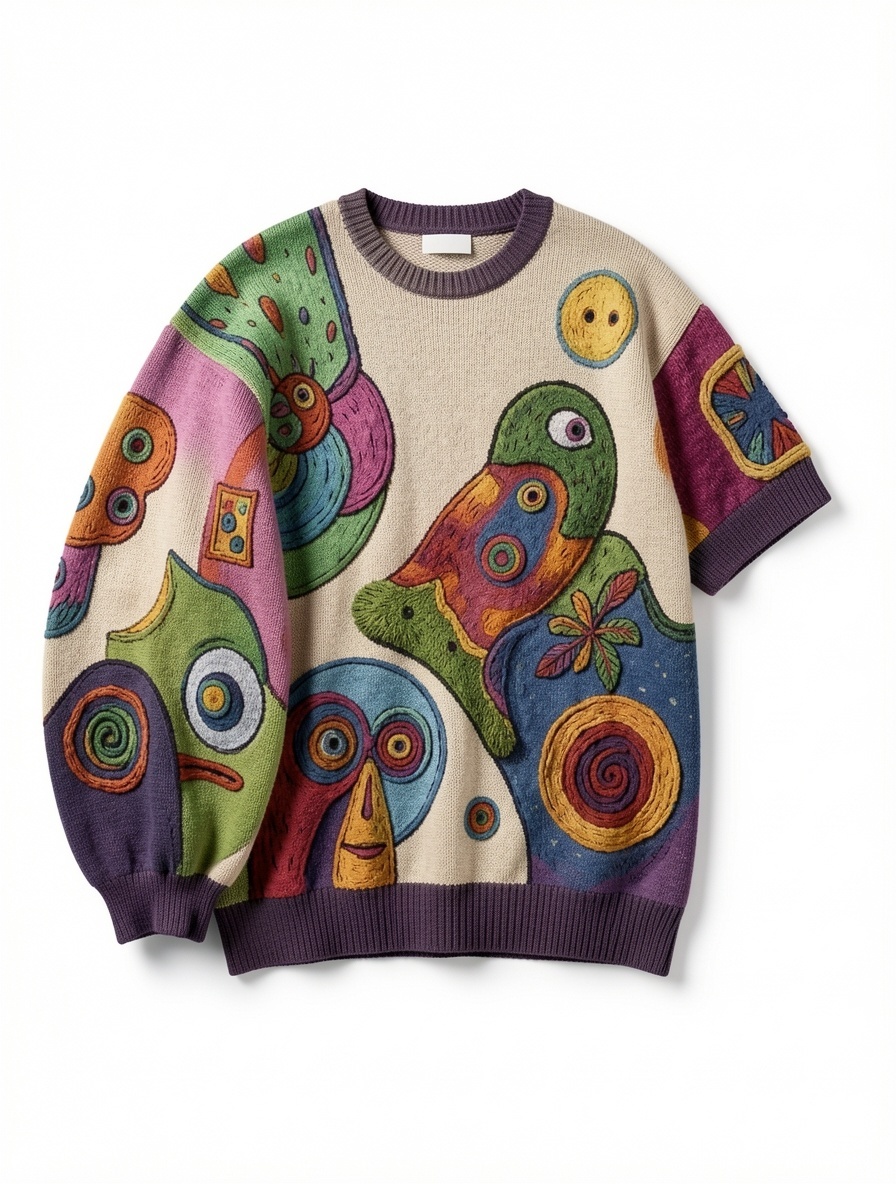

Intarsia Crewneck Sweater, the product the tech pack was generated from — SourceOne product photo. Everything else on this page was generated from it.

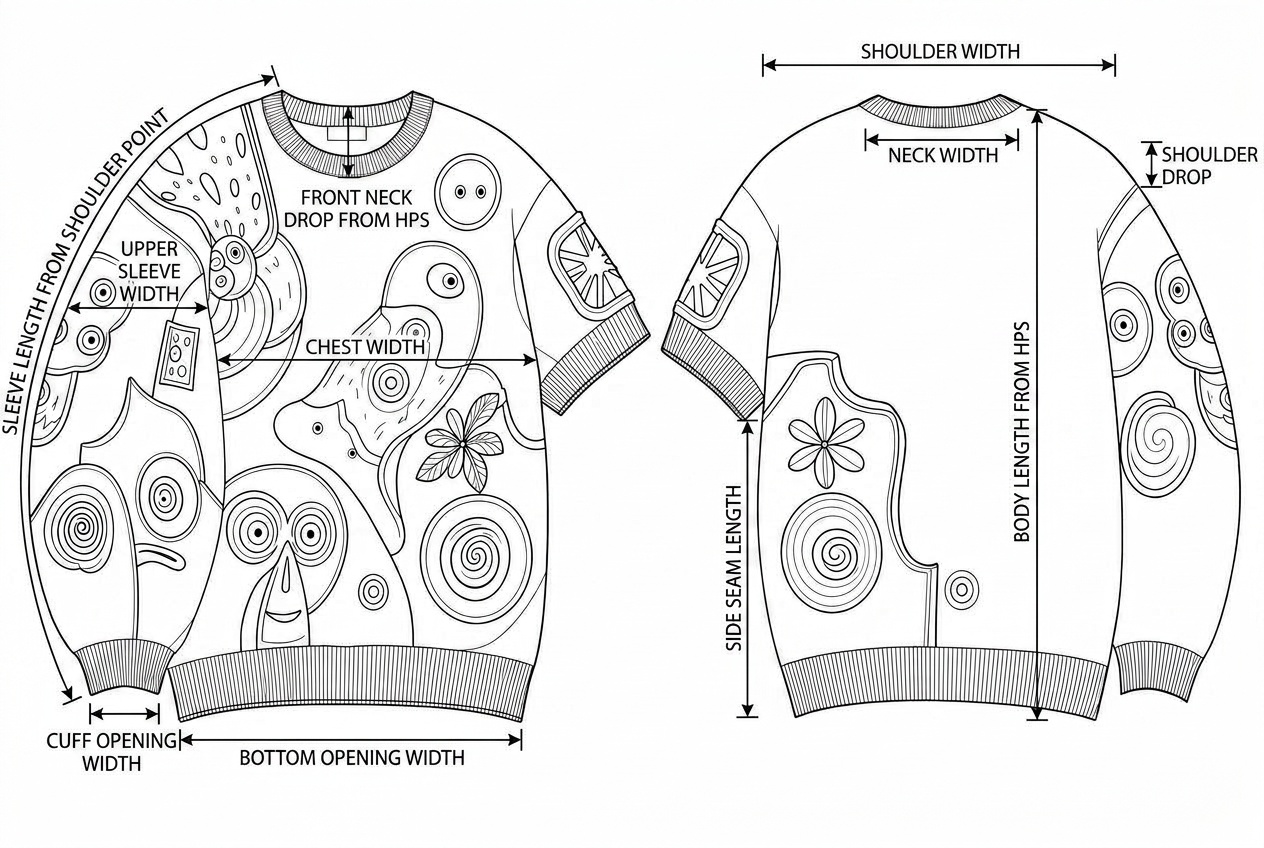

Intarsia Crewneck Sweater annotated flat sketch with points of measure — Annotated flat sketch: every point of measure numbered on the drawing, matching the size table below.

Shoulder seam: 12GG shoulder link
Crew neckline: 1x1 rib neck link
Armhole join: Armhole cup link
Side seam: Side seam linked
Sleeve seam: Uarm/sleeve link
Hem rib: Cont. rib hem
Cuff finish: Rib cuff finish

Materials

11 materials, each with its swatch, composition and placement

Main body yarn

Cotton-rich spun yarn for flat-knit intarsia body ground, color PANTONE 7527 C, soft dry hand, suitable for 12GG knitting

Front body, back body, partial sleeve ground

Contrast intarsia yarn set

Multiple cotton-rich dyed yarns for abstract motif placement including PANTONE 7679 C, 5777 C, 367 C, 5145 C, 7697 C, 550 C, 1245 C, 7584 C, 7624 C, and 419 C

Front body and both sleeves artwork panels

Rib trim yarn

Cotton-rich elastic recovery yarn for 1x1 rib neck, cuffs, and hem in PANTONE 7679 C

Crew neck, sleeve cuffs, bottom hem

Linking thread

Fine polyester linking thread, color matched to adjoining panels, soft but strong for cup seaming and neckline attachment

Shoulders, armholes, side seams, collar join

Neck tape

Soft woven twill stabilization tape, natural color, 8-10mm width

Inside back neck seam

Main label

Damask woven brand label, cream ground with dark text, folded ends

Inside back neck

Care/content label

Printed satin care label with fiber content, care icons, and origin information

Wearer left side seam interior

Size label

Small woven size tab, color matched neutral with dark size text

Inside back neck with main label

Steam blocking support

Temporary finishing support materials for panel blocking and shape setting after wash

Finishing process

Hangtag set

Printed paper hangtag with string fastener, brand and style information

Attached at neck label area

Polybag

Clear recyclable polybag with suffocation warning print and size sticker

Final packing

Colourways

Main ground body and sleeve baseNeck rib, hem rib, sleeve cuff rib, dark outlines and purple blocksLeaf green motifs and green graphic areasBright spring green sectionsDusty pink sleeve/body graphic areasSlate blue graphic areasLight aqua blue graphic areasGolden yellow circular motifs and beak detailsBurnt orange graphic areasBrick red accentsBlack/dark charcoal fine outline details and eyesOff-white eye fill highlights

Graded size chart and bill of materials

Every row, as generated

Size chart (cm)

24 points of measure · sizes XS, S, M, L, XL · sample size M

Point of measure	XS	S	M	L	XL	Tol.
Body Length from HPS	68	69	70	71	72	+/- 1.0
Chest Width (2.5 cm below armhole)	57	59	61	63	65	+/- 1.0
Bottom Opening Width (relaxed, at rib join)	46	48	50	52	54	+/- 1.0
Bottom Rib Height	7.4	7.7	8	8.3	8.6	+/- 0.5
Shoulder Width (shoulder point to shoulder point)	56	57	58	59	60	+/- 0.7
Across Front (10 cm below HPS)	52	53	54	55	56	+/- 0.7
Across Back (10 cm below HPS)	54	55	56	57	58	+/- 0.7
Neck Width	18	18.5	19	19.5	20	+/- 0.5
Front Neck Drop from HPS	8.4	8.7	9	9.3	9.6	+/- 0.5
Back Neck Drop from HPS	2.6	2.8	3	3.2	3.4	+/- 0.3
Neck Rib Height	2.6	2.8	3	3.2	3.4	+/- 0.3
Armhole Straight	25.4	26.2	27	27.8	28.6	+/- 0.7
Sleeve Length from Shoulder Point	56	57	58	59	60	+/- 1.0
Sleeve Length from Center Back	84.6	85.8	87	88.2	89.4	+/- 1.0
Upper Sleeve Width (1" below armhole)	23	24	25	26	27	+/- 0.7
Elbow Width	19.4	20.2	21	21.8	22.6	+/- 0.7
Cuff Opening Width (relaxed)	8.5	9	9.5	10	10.5	+/- 0.5
Cuff Rib Height	6.9	7.2	7.5	7.8	8.1	+/- 0.5
Bicep to Cuff Taper Length	40.4	41.2	42	42.8	43.6	+/- 0.7
Side Seam Length (underarm seam to bottom of body, excluding rib)	40	41	42	43	44	+/- 0.7
Front Armhole Drop from HPS	28.4	29.2	30	30.8	31.6	+/- 0.7
Back Armhole Drop from HPS	29.4	30.2	31	31.8	32.6	+/- 0.7
Hem Rib Width at Bottom Opening (relaxed flat width)	46	48	50	52	54	+/- 1.0
Shoulder Drop from Neck Point to Shoulder Point	7.4	7.7	8	8.3	8.6	+/- 0.5

Bill of materials

11 lines

#	Item	Specification	Qty
1	Main body yarn	Cotton-rich spun yarn for flat-knit intarsia body ground, color PANTONE 7527 C, soft dry hand, suitable for 12GG knitting · Front body, back body, partial sleeve ground	320 g
2	Contrast intarsia yarn set	Multiple cotton-rich dyed yarns for abstract motif placement including PANTONE 7679 C, 5777 C, 367 C, 5145 C, 7697 C, 550 C, 1245 C, 7584 C, 7624 C, and 419 C · Front body and both sleeves artwork panels	230 g
3	Rib trim yarn	Cotton-rich elastic recovery yarn for 1x1 rib neck, cuffs, and hem in PANTONE 7679 C · Crew neck, sleeve cuffs, bottom hem	85 g
4	Linking thread	Fine polyester linking thread, color matched to adjoining panels, soft but strong for cup seaming and neckline attachment · Shoulders, armholes, side seams, collar join	1 cone
5	Neck tape	Soft woven twill stabilization tape, natural color, 8-10mm width · Inside back neck seam	0.35 m
6	Main label	Damask woven brand label, cream ground with dark text, folded ends · Inside back neck	1 pc
7	Care/content label	Printed satin care label with fiber content, care icons, and origin information · Wearer left side seam interior	1 pc
8	Size label	Small woven size tab, color matched neutral with dark size text · Inside back neck with main label	1 pc
9	Steam blocking support	Temporary finishing support materials for panel blocking and shape setting after wash · Finishing process	1 set
10	Hangtag set	Printed paper hangtag with string fastener, brand and style information · Attached at neck label area	1 set
11	Polybag	Clear recyclable polybag with suffocation warning print and size sticker · Final packing	1 pc

More pages of the tech pack

The other views, exactly as generated

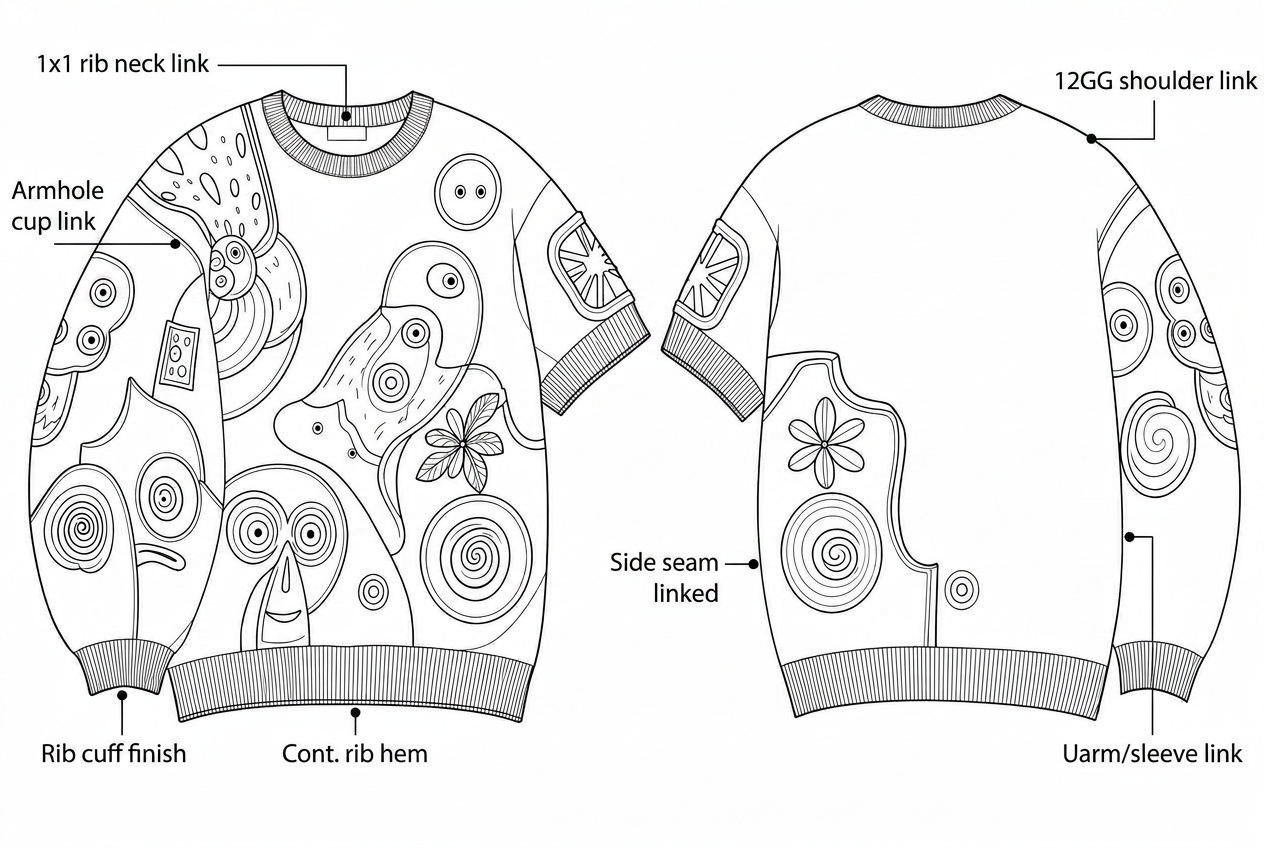

Intarsia Crewneck Sweater: Sewing details: every construction callout drawn on the flat — Sewing details: every construction callout drawn on the flat

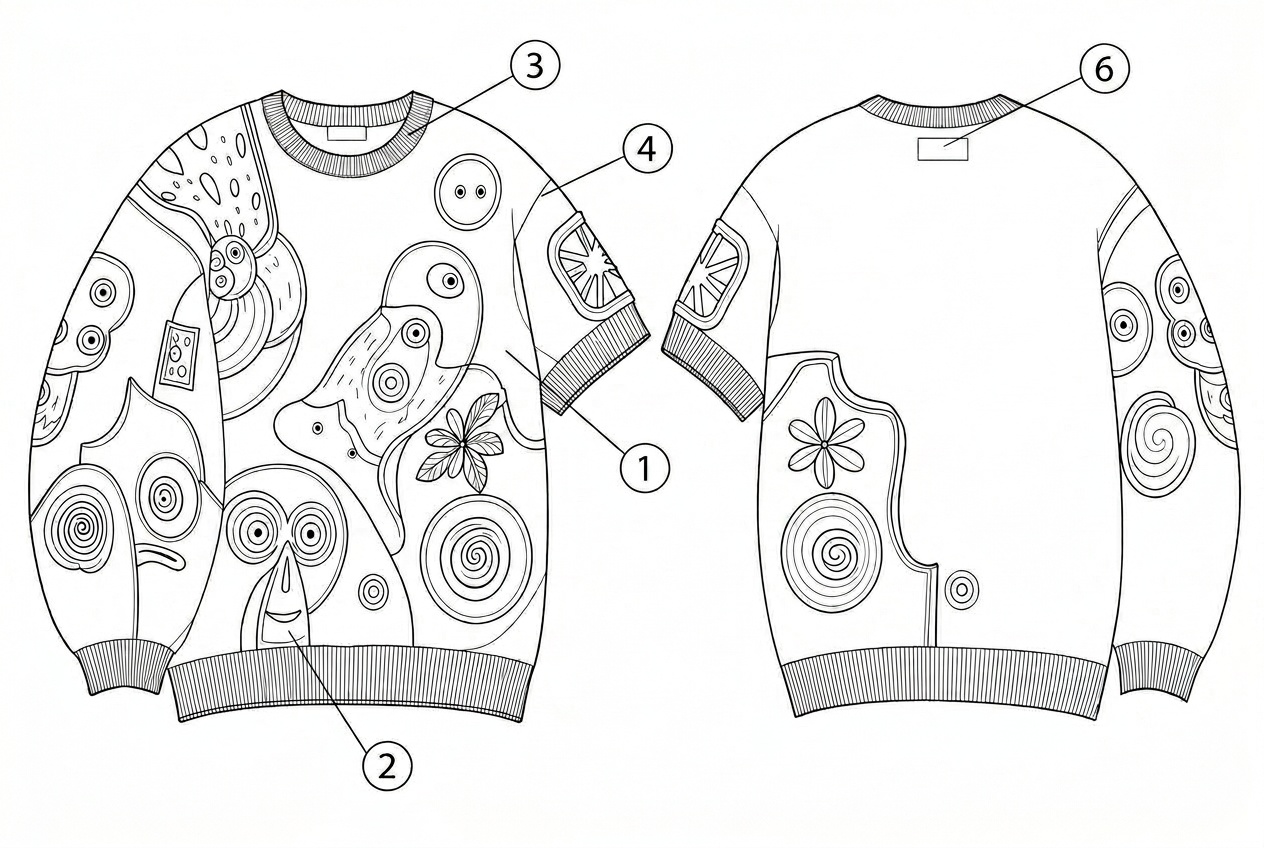

Intarsia Crewneck Sweater: Materials callout: each material numbered on the garment — Materials callout: each material numbered on the garment

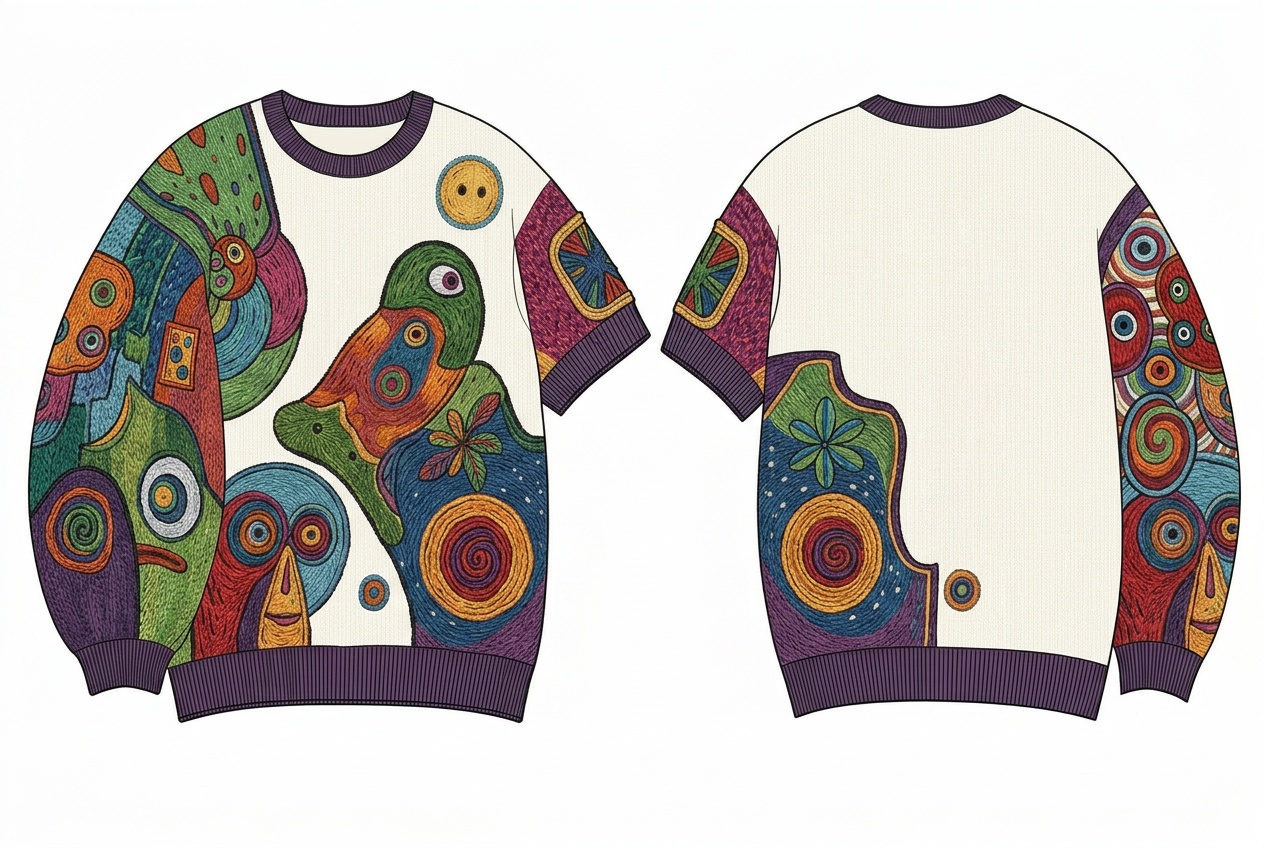

Intarsia Crewneck Sweater: Coloured mock-up in the sampled colourway — Coloured mock-up in the sampled colourway

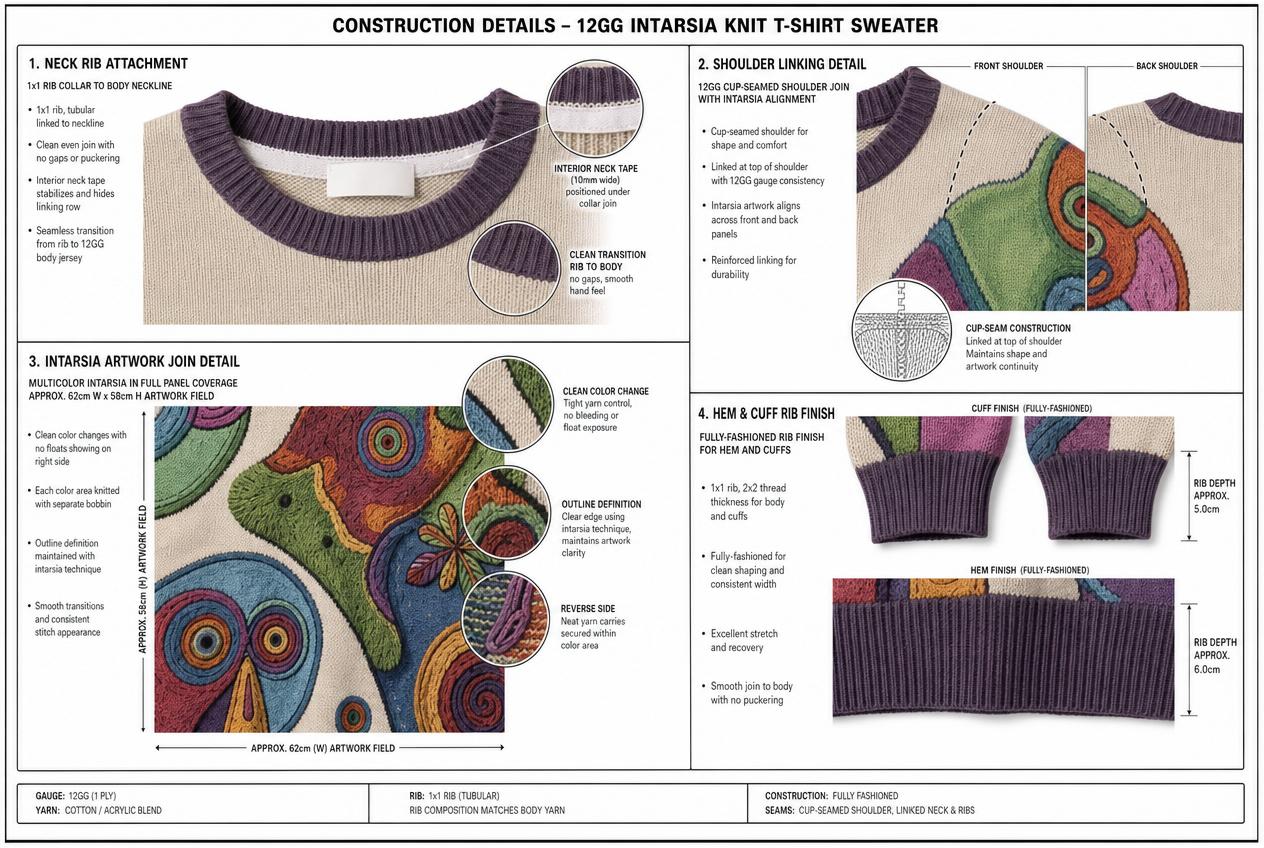

Intarsia Crewneck Sweater: Detailed views: closures, seams, trims — Detailed views: closures, seams, trims

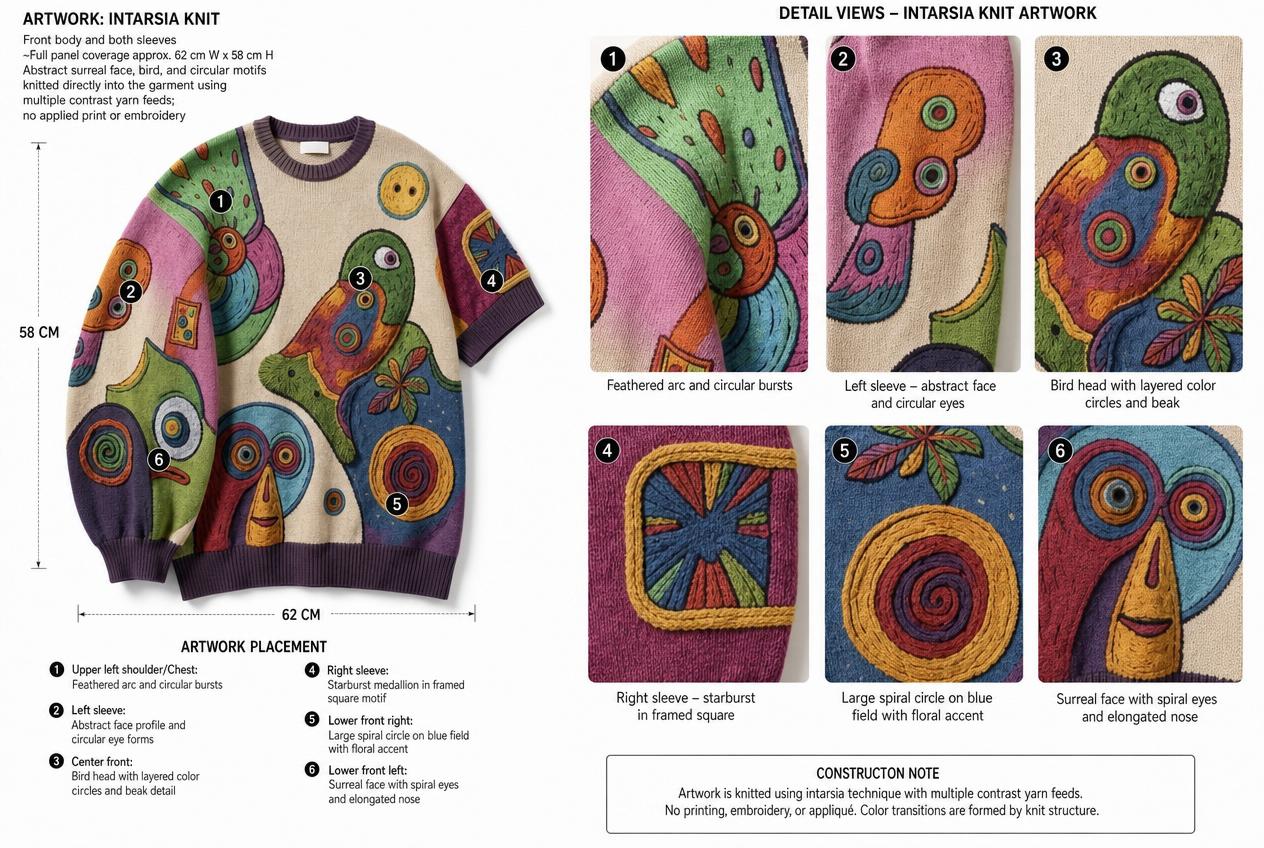

Intarsia Crewneck Sweater: Artwork placement — Artwork placement
