Maxi Slip Dress, drawn up start to finish

20 points of measure graded across 6 sizes, 12 bill-of-materials lines, 12 materials with their swatches, 6 construction callouts, 2 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

Download the PDF Excel template Use it as a template

Maxi Slip Dress, the product the tech pack was generated from — SourceOne product photo. Everything else on this page was generated from it.

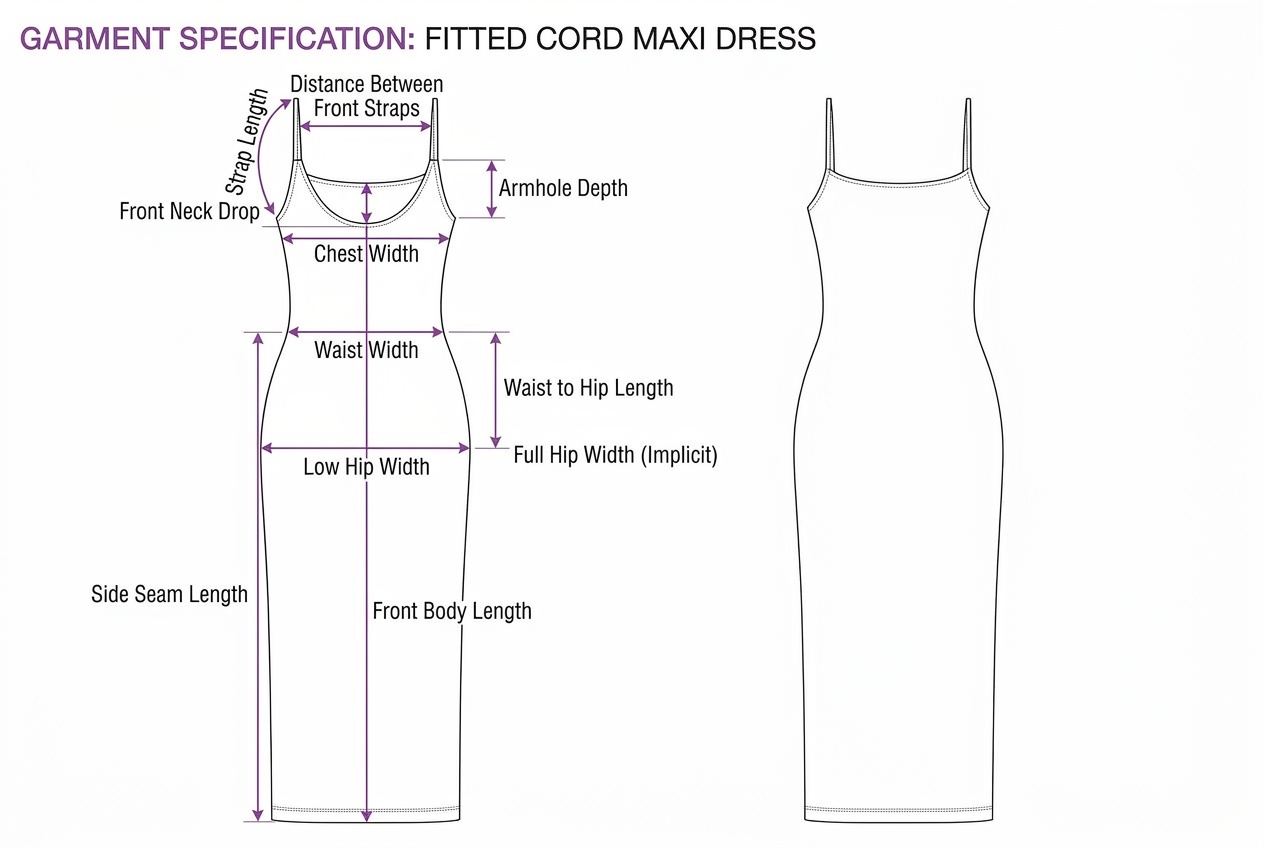

Maxi Slip Dress annotated flat sketch with points of measure — Annotated flat sketch: every point of measure numbered on the drawing, matching the size table below.

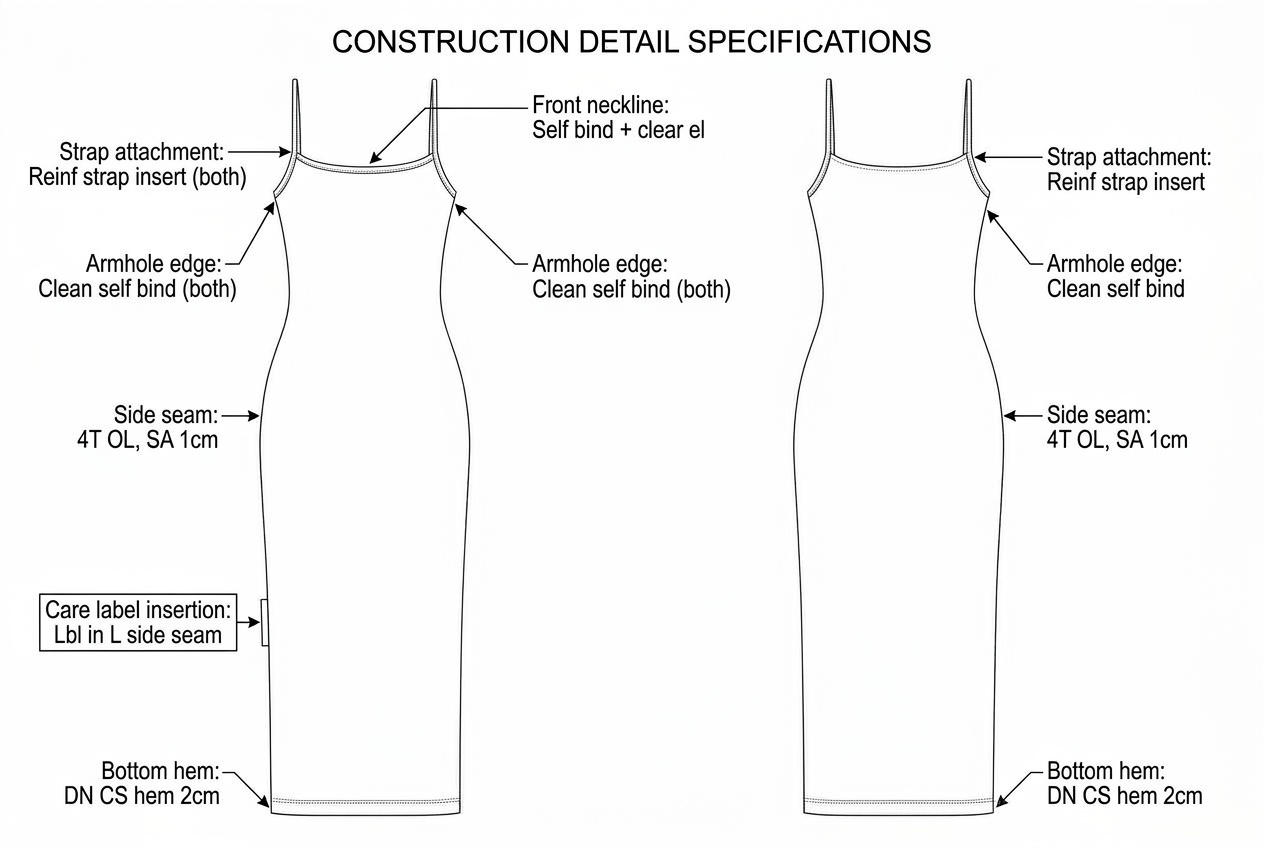

Front neckline: Self bind + clear el
Strap attachment: Reinf strap insert
Side seam: 4T OL, SA 1cm
Armhole edge: Clean self bind
Bottom hem: DN CS hem 2cm
Care label insertion: Lbl in L side seam

Materials

12 materials, each with its swatch, composition and placement

Main shell fabric

Fine gauge rib knit jersey, approx. 220 GSM, soft handfeel, light stretch, dyed to PANTONE 705 C

Body front, body back, and skirt

Self fabric strap panels

Self shell rib jersey cut on lengthwise direction for narrow straps, tonal PANTONE 705 C

Shoulder straps

Neckline and armhole binding

Self fabric binding strip, fine rib jersey, clean finish, tonal PANTONE 705 C

Front neckline, back neckline, armholes

Clear elastic tape

Transparent polyurethane elastic, 6 mm width, soft recovery grade

Inside neckline edge, back edge, and strap attachment stabilization

Stretch sewing thread

100% polyester core-spun thread, Tex 27, tonal match to PANTONE 705 C

All seams and hems

Twin-needle coverstitch thread

Polyester texturized thread for hem coverstitch, tonal PANTONE 705 C

Bottom hem and optional neckline/strap top finish

Size label

Damask woven size label, soft edge, white ground with black size print

Inner back neckline

Main brand label

Satin or damask woven brand label, soft finish

Inner back neckline

Care and content label

Printed satin care label with fiber content and laundering instructions

Left side seam interior

Shoulder seam reinforcement tape

Soft jersey seam tape or clear stay tape, 6 mm width

Strap join and neckline stress points

Hangtag

Paper hangtag with string fastener

Retail packaging

Polybag

Clear recycled PE polybag with size sticker

Final packaging

Colourways

Main body and strapsThread and binding tonal match

Graded size chart and bill of materials

Every row, as generated

Size chart (cm)

20 points of measure · sizes 2, 4, 6, 8, 10, 12 · sample size 6

Point of measure	2	4	6	8	10	12	Tol.
Front Body Length (HPS to hem, excluding strap)	118.4	119.2	120	120.8	121.6	122.4	±1.0
Back Body Length (CB neckline to hem, excluding strap)	112.4	113.2	114	114.8	115.6	116.4	±1.0
Chest Width (1"/2.5 cm below armhole)	36	37	38	39	40.3	41.6	±0.8
Waist Width	30	31	32	33	34.3	35.6	±0.8
High Hip Width (10 cm below waist)	35	36	37	38	39.3	40.6	±0.8
Low Hip Width (20 cm below waist)	40	41	42	43	44.3	45.6	±0.8
Bottom Opening Width	41	42	43	44	45	46	±0.8
Across Front at Neckline (straight)	27	27.5	28	28.5	29	29.5	±0.5
Across Back at Neckline (straight)	28	28.5	29	29.5	30	30.5	±0.5
Front Neck Drop (from HPS)	13.4	13.7	14	14.3	14.6	14.9	±0.5
Back Neck Drop (from HPS)	11.9	12.2	12.5	12.8	13.1	13.4	±0.5
Strap Length (total)	30	30.5	31	31.5	32	32.5	±0.5
Strap Width	0.8	0.8	0.8	0.8	0.8	0.8	±0.2
Distance Between Front Straps (inside edge to inside edge)	18.2	18.6	19	19.4	19.8	20.2	±0.5
Distance Between Back Straps (inside edge to inside edge)	19.2	19.6	20	20.4	20.8	21.2	±0.5
Armhole Depth (straight)	17.7	18.1	18.5	18.9	19.3	19.7	±0.5
Side Seam Length (underarm to hem)	106.4	107.2	108	108.8	109.6	110.4	±1.0
Waist to Hip Length	19.4	19.7	20	20.3	20.6	20.9	±0.5
Hem Height	3	3	3	3	3	3	±0.3
Sweep to Hip Position Length (waist to bottom opening)	84.8	85.4	86	86.6	87.2	87.8	±1.0

Bill of materials

12 lines

#	Item	Specification	Qty
1	Main shell fabric	Fine gauge rib knit jersey, approx. 220 GSM, soft handfeel, light stretch, dyed to PANTONE 705 C · Body front, body back, and skirt	2.1 m
2	Self fabric strap panels	Self shell rib jersey cut on lengthwise direction for narrow straps, tonal PANTONE 705 C · Shoulder straps	0.18 m
3	Neckline and armhole binding	Self fabric binding strip, fine rib jersey, clean finish, tonal PANTONE 705 C · Front neckline, back neckline, armholes	1.2 m
4	Clear elastic tape	Transparent polyurethane elastic, 6 mm width, soft recovery grade · Inside neckline edge, back edge, and strap attachment stabilization	1.1 m
5	Stretch sewing thread	100% polyester core-spun thread, Tex 27, tonal match to PANTONE 705 C · All seams and hems	110 m
6	Twin-needle coverstitch thread	Polyester texturized thread for hem coverstitch, tonal PANTONE 705 C · Bottom hem and optional neckline/strap top finish	18 m
7	Size label	Damask woven size label, soft edge, white ground with black size print · Inner back neckline	1 pc
8	Main brand label	Satin or damask woven brand label, soft finish · Inner back neckline	1 pc
9	Care and content label	Printed satin care label with fiber content and laundering instructions · Left side seam interior	1 pc
10	Shoulder seam reinforcement tape	Soft jersey seam tape or clear stay tape, 6 mm width · Strap join and neckline stress points	0.25 m
11	Hangtag	Paper hangtag with string fastener · Retail packaging	1 pc
12	Polybag	Clear recycled PE polybag with size sticker · Final packaging	1 pc

More pages of the tech pack

The other views, exactly as generated

Maxi Slip Dress: Sewing details: every construction callout drawn on the flat — Sewing details: every construction callout drawn on the flat

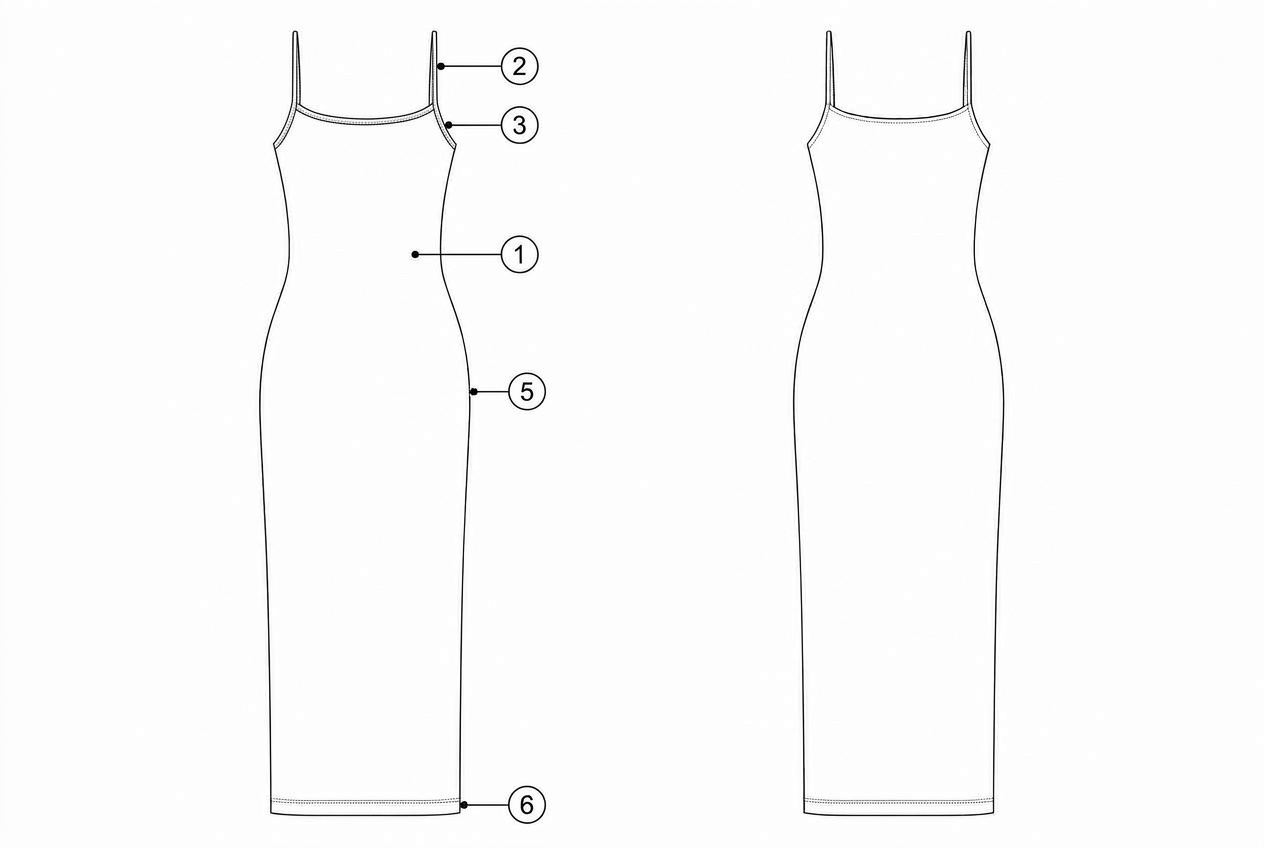

Maxi Slip Dress: Materials callout: each material numbered on the garment — Materials callout: each material numbered on the garment

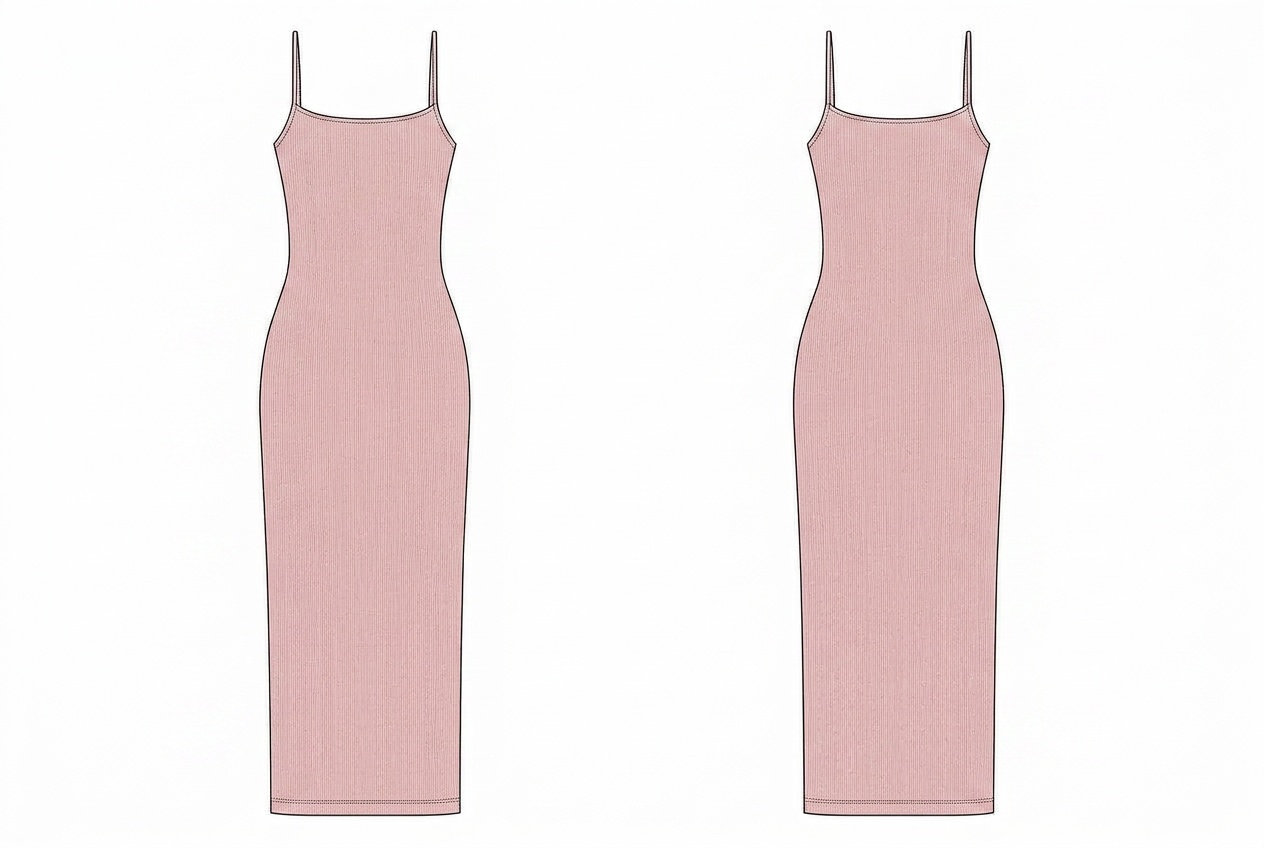

Maxi Slip Dress: Coloured mock-up in the sampled colourway — Coloured mock-up in the sampled colourway

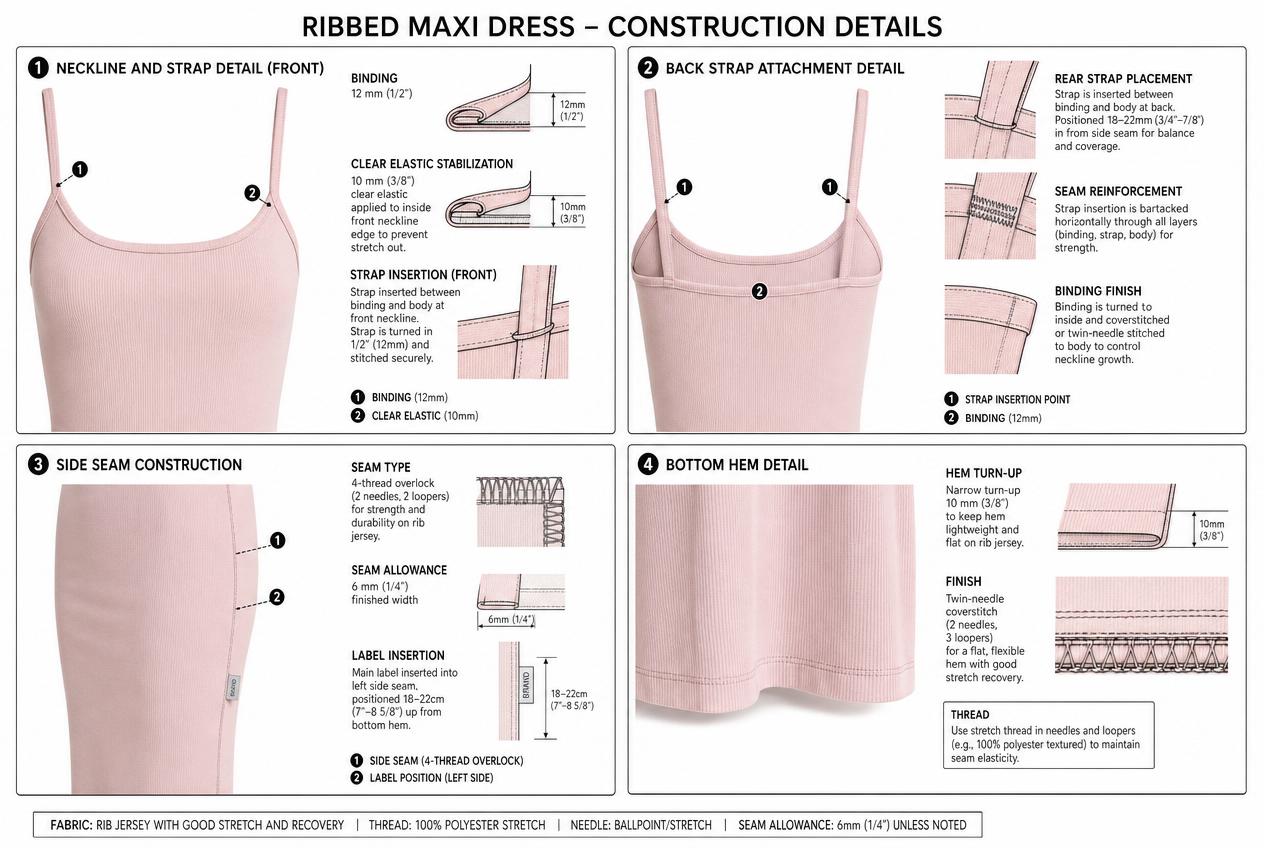

Maxi Slip Dress: Detailed views: closures, seams, trims — Detailed views: closures, seams, trims
