Main knit shell
Medium-gauge rib knit beanie shell in melange taupe wool-blend yarn; soft handfeel; fully fashioned crown shaping appearance; color PANTONE 4106 C
Entire hat body and fold cuff
Home › Tech pack examples › Ribbed Beanie
Sample tech pack · Fold-over rib knit beanie
Ribbed Beanie, drawn up start to finish

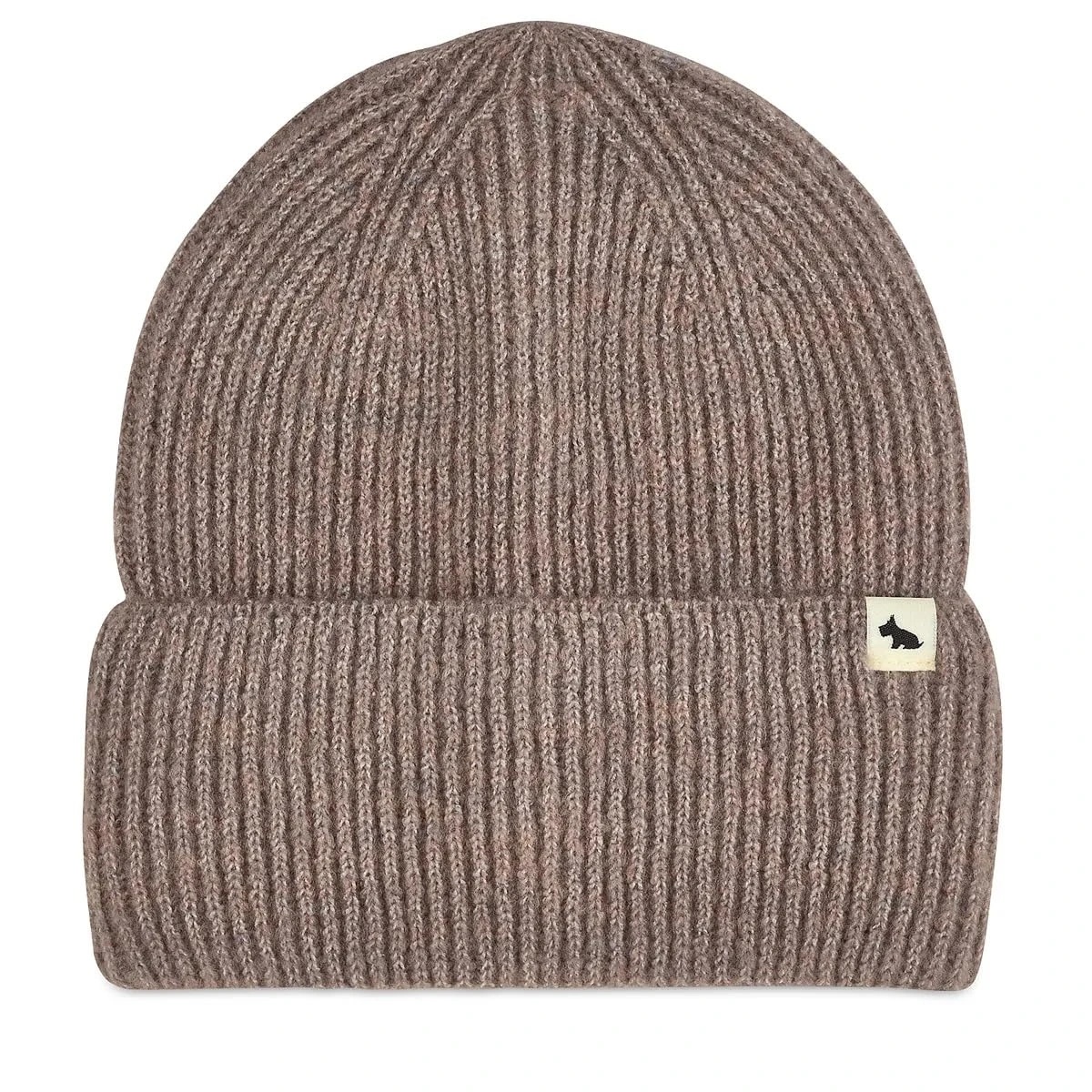

13 points of measure graded across 5 sizes, 10 bill-of-materials lines, 10 materials with their swatches, 5 construction callouts, 3 colourways. Generated by Adstronaut AI from one product photo in about six minutes; every value below is the generated draft, shown in full.

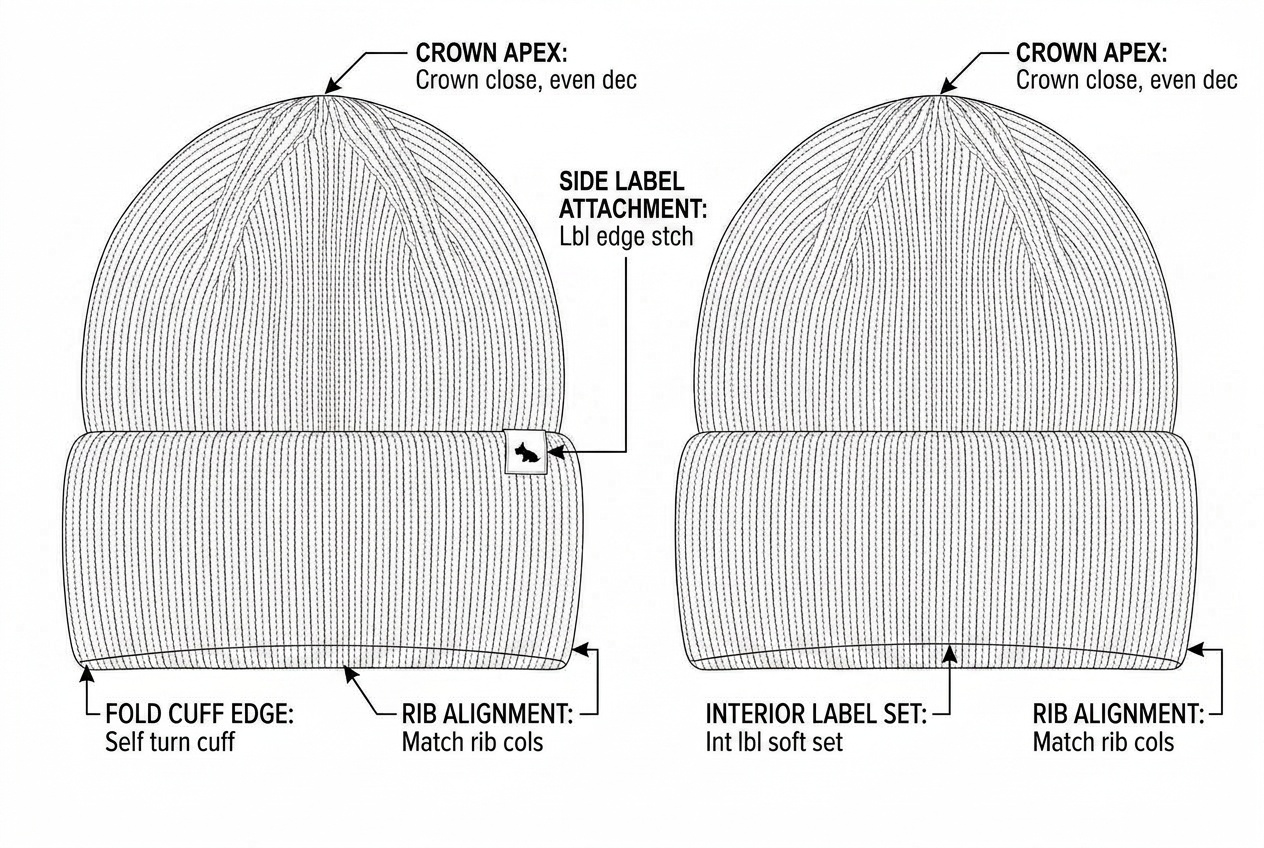

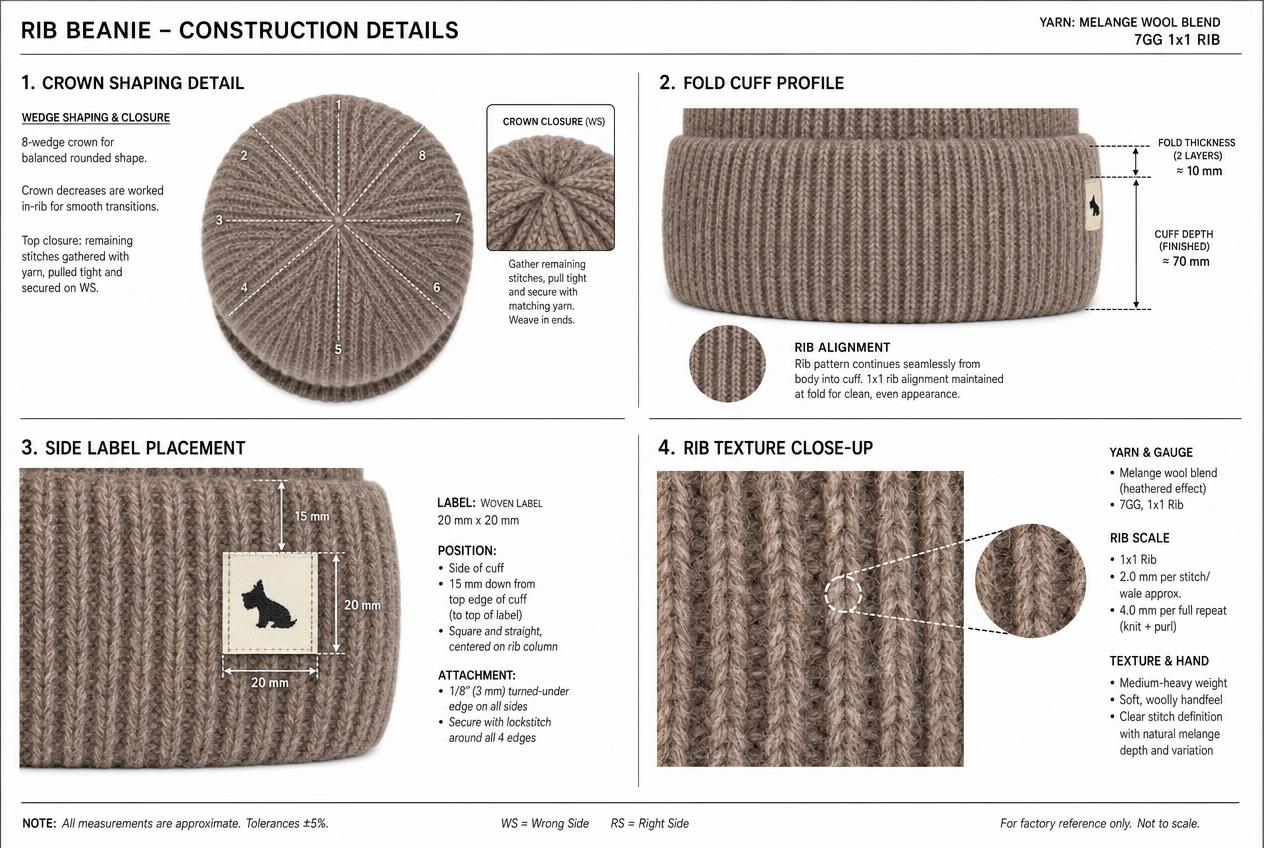

- Crown apex: Crown close, even dec
- Fold cuff edge: Self turn cuff
- Side label attachment: Lbl edge stch
- Interior label set: Int lbl soft set
- Rib alignment: Match rib cols

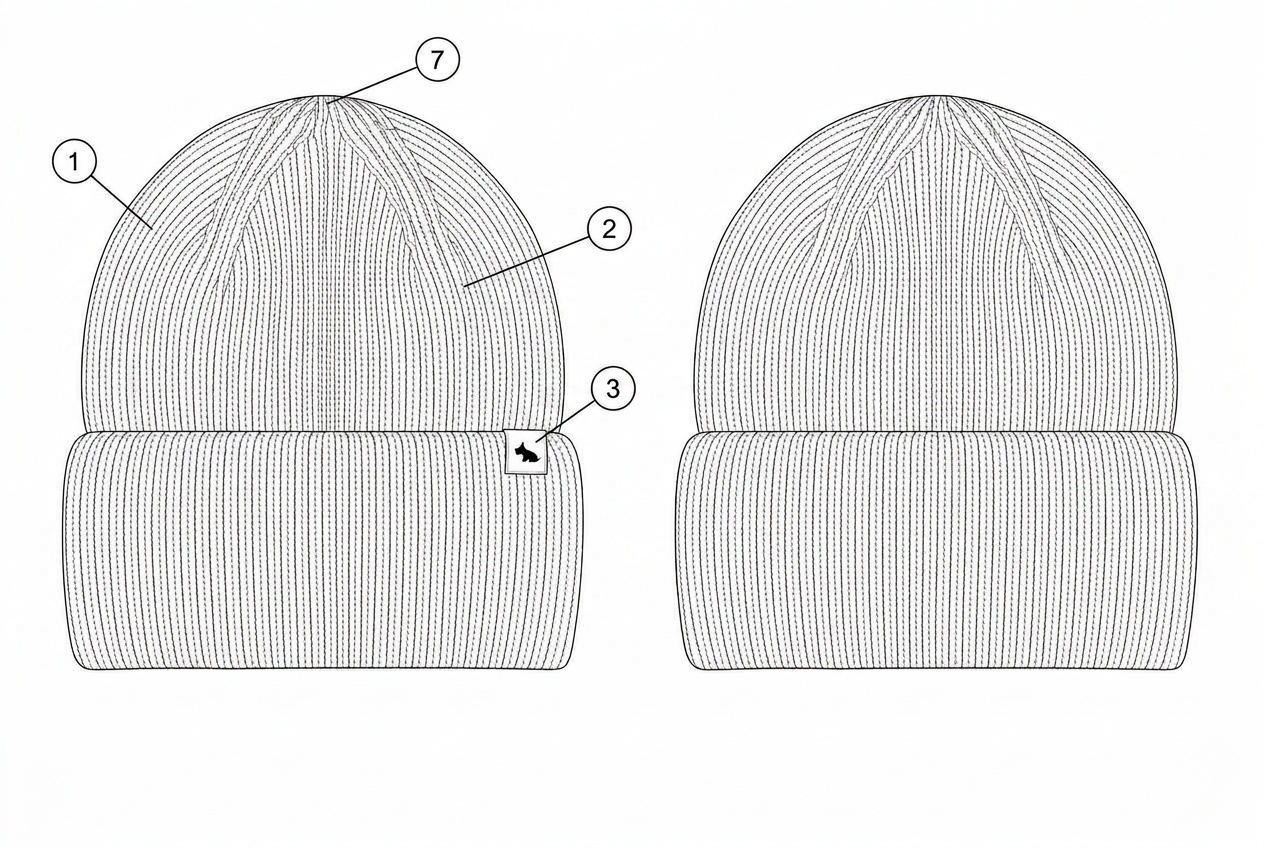

Materials
10 materials, each with its swatch, composition and placement
Primary yarn
Melange taupe wool-blend knitting yarn for shell; heathered effect matching PANTONE 4106 C
Entire knitted shell

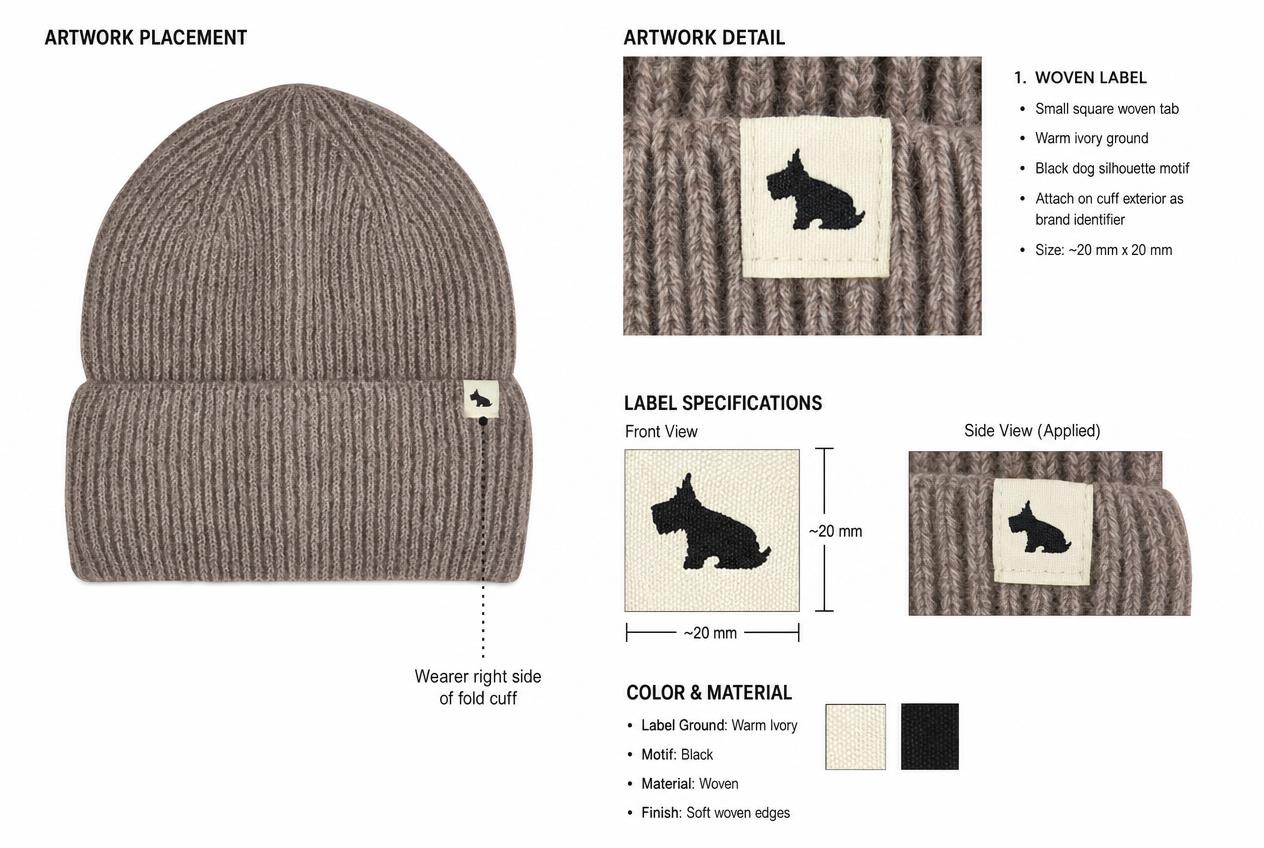

Woven brand tab label
Small rectangular woven label with warm ivory ground matching PANTONE 7499 C and black animal silhouette motif in PANTONE Black C
Wearer right side of fold cuff
Label attachment thread
Poly core-spun sewing thread, matched to label edge or shell for discrete edge stitch attachment
Brand tab label attachment
Interior brand label
Main brand label, satin or woven quality, applied at interior fold area
Inside hat at back seam or interior cuff
Care/content label
Printed satin care label with fiber content and wash instructions
Interior seam or interior cuff
Crown closing yarn/thread
Matching yarn or sewing thread for top crown closure and securing final knit opening
Top crown interior
Hangtag string fastener
Standard plastic loop fastener for swing tag attachment
Through label or knit body at retail
Swing tag
Printed paperboard brand hangtag
Retail packaging attachment
Polybag
Clear recycled PE polybag sized for folded beanie
Packaging

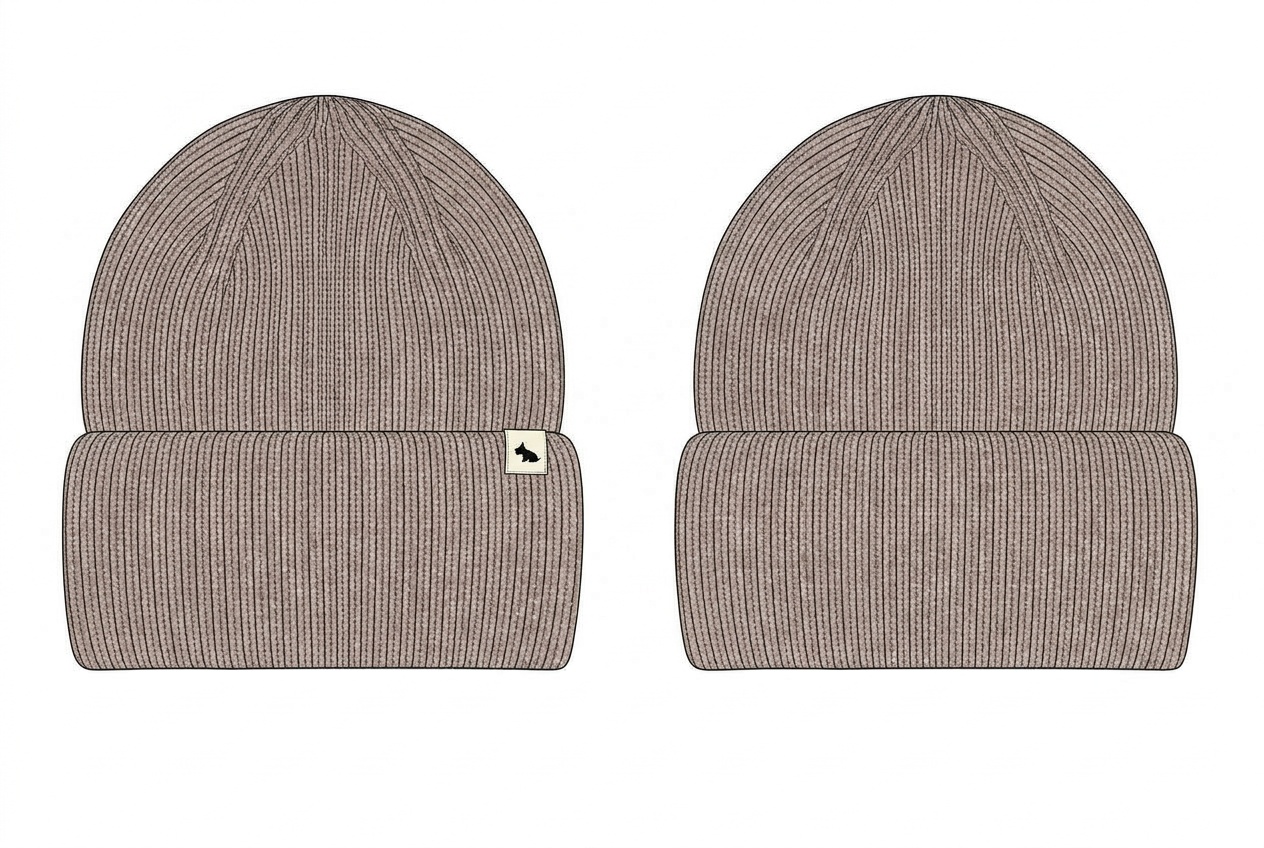

Colourways
Main body and fold cuffBrand tab label groundBrand tab motif
Graded size chart and bill of materials
Every row, as generated

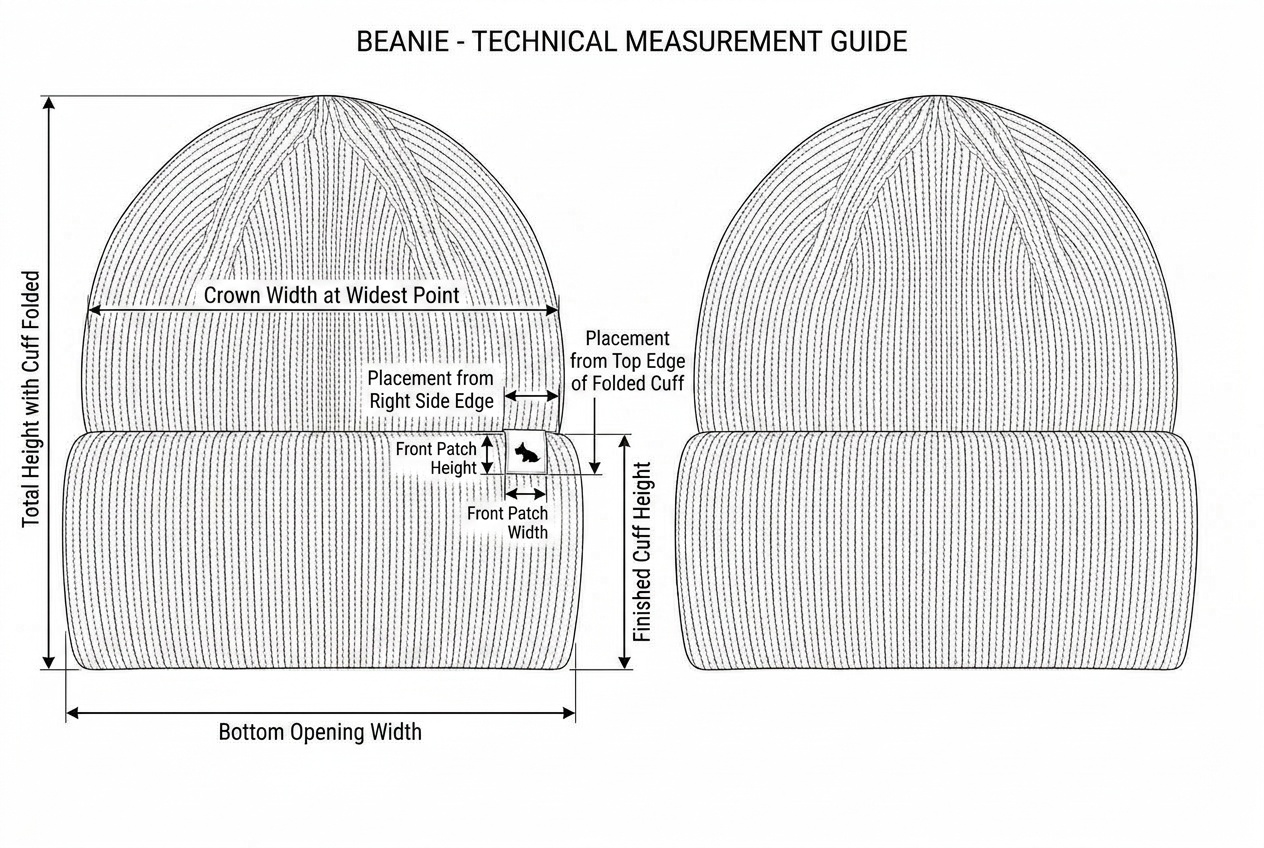

Size chart (cm)
13 points of measure · sizes XS, S, M, L, XL · sample size M
| Point of measure | XS | S | M | L | XL | Tol. |
|---|---|---|---|---|---|---|
| Bottom Opening Width (flat, relaxed) | 20 | 20.5 | 21 | 21.5 | 22 | ±0.5 |
| Body Width at Cuff Seam | 21 | 21.5 | 22 | 22.5 | 23 | ±0.5 |
| Body Width at Mid Height | 19.5 | 20 | 20.5 | 21 | 21.5 | ±0.5 |
| Crown Width at Widest Point | 20 | 20.5 | 21 | 21.5 | 22 | ±0.5 |
| Total Height with Cuff Folded (bottom edge to apex) | 21.4 | 22.2 | 23 | 23.8 | 24.6 | ±0.7 |
| Total Height Unfolded (bottom edge to apex) | 28 | 29 | 30 | 31 | 32 | ±0.7 |
| Finished Cuff Height (folded) | 6.4 | 6.7 | 7 | 7.3 | 7.6 | ±0.5 |
| Crown Height Above Cuff Seam (cuff seam to apex) | 14.6 | 15.3 | 16 | 16.7 | 17.4 | ±0.7 |
| Top Crown Decrease Height (start of shaping to apex) | 5.9 | 6.2 | 6.5 | 6.8 | 7.1 | ±0.5 |
| Front Patch Width | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ±0.2 |
| Front Patch Height | 3 | 3 | 3 | 3 | 3 | ±0.2 |
| Front Patch Placement from Right Side Edge | 2.8 | 2.9 | 3 | 3.1 | 3.2 | ±0.3 |
| Front Patch Placement from Top Edge of Folded Cuff | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | ±0.2 |
Bill of materials
10 lines
| # | Item | Specification | Qty |
|---|---|---|---|
| 1 | Main knit shell | Medium-gauge rib knit beanie shell in melange taupe wool-blend yarn; soft handfeel; fully fashioned crown shaping appearance; color PANTONE 4106 C · Entire hat body and fold cuff | 1 pc |
| 2 | Primary yarn | Melange taupe wool-blend knitting yarn for shell; heathered effect matching PANTONE 4106 C · Entire knitted shell | 95 g |
| 3 | Woven brand tab label | Small rectangular woven label with warm ivory ground matching PANTONE 7499 C and black animal silhouette motif in PANTONE Black C · Wearer right side of fold cuff | 1 pc |
| 4 | Label attachment thread | Poly core-spun sewing thread, matched to label edge or shell for discrete edge stitch attachment · Brand tab label attachment | 0.6 m |
| 5 | Interior brand label | Main brand label, satin or woven quality, applied at interior fold area · Inside hat at back seam or interior cuff | 1 pc |
| 6 | Care/content label | Printed satin care label with fiber content and wash instructions · Interior seam or interior cuff | 1 pc |
| 7 | Crown closing yarn/thread | Matching yarn or sewing thread for top crown closure and securing final knit opening · Top crown interior | 0.4 m |
| 8 | Hangtag string fastener | Standard plastic loop fastener for swing tag attachment · Through label or knit body at retail | 1 pc |
| 9 | Swing tag | Printed paperboard brand hangtag · Retail packaging attachment | 1 pc |
| 10 | Polybag | Clear recycled PE polybag sized for folded beanie · Packaging | 1 pc |
More pages of the tech pack
The other views, exactly as generated
What the tech pack contains
14 sections in this document
- ✓Flat Sketchincluded
- ✓Sewing Detailsincluded
- ✓Materialsincluded
- ✓Size Tableincluded
- ✓Bill of Materialsincluded
- ✓Product Infoincluded
- ✓Materials Calloutincluded
- ✓Colored Mockupsincluded
- ✓Pantone Colorsincluded
- ✓Detailed Drawingsincluded
- ✓Artworkincluded
- ✓Construction Guideincluded
- ·Fit Lognot in this sample
- ✓PDF exportincluded
- ✓Excel exportincluded
- ·Editable SVG sketchnot in this sample
